メーカー希望小売価格: $99.00 電流: -2.2A

【Features】

Ultrastable PI control
Drive ±2.2A of TEC or RH current
Linear Stability: 0.0009°C
Small size: 1.3" x 1.28" x 0.313"
Heat and cool current limits
Supports Thermistors, RTDs, IC sensors
Single supply operation: +5 V to +30 V
Adjustable sensor bias current
14 pin DIP PCB mount
Monitor Actual Temperature

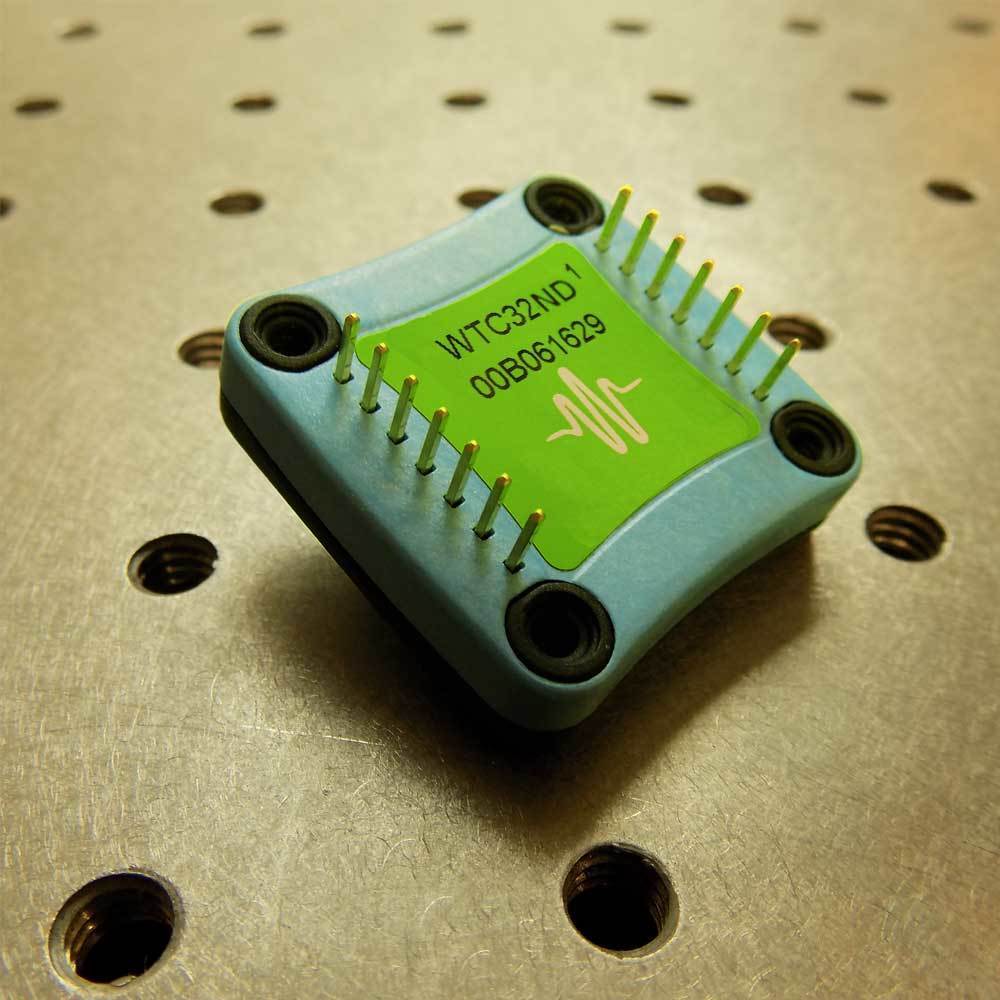

The compact design of the WTC32ND Temperature Controller achieves 0.0009°C temperature stability. Its award winning package can be integrated with a heatsink WHS302, thermal washer WTW002, and fans WXC303 (+5 V) or WXC304 (+12 V) for easy prototyping. The linear, PI control loop offers maximum stability while the bipolar current source has been designed for higher efficiency. The WTC32ND drives up to 2.2 A for either Thermoelectrics (bipolar) or Resistive Heaters (unipolar). An evaluation board simplifies prototyping: WTC32ND-EV. A model compatible with Li-ion batteries is available: WTC32ND-HB.

The WTC32ND temperature controller is easily configured for any design. A circuit calculator tool speeds selection of external component values (see Design Tools tab). Virtually any type of temperature sensor can be used with it and a built in sensor bias current source simplifies use with resistive temperature sensors. The Proportional Gain (P) and Integrator Time Constant (I) are set by external resistors and can be modified to optimize temperature overshoot and stability.

Other features offer added flexibility. Independent heat and cool current limits are set by single resistors. An onboard reference voltage simplifies potentiometer control of the temperature setpoint. You can also choose to operate remotely with an external setpoint voltage. Monitor actual sensor voltage at pin 9.

The robust and reliable WTC32ND-HB is designed into handheld electro-optical systems, eye-safe atmospheric lidar, airborne instrumentation, Raman spectrometers and medical diagnostic equipment. The WTC is particularly suited to applications where temperature is scanned across ambient.
