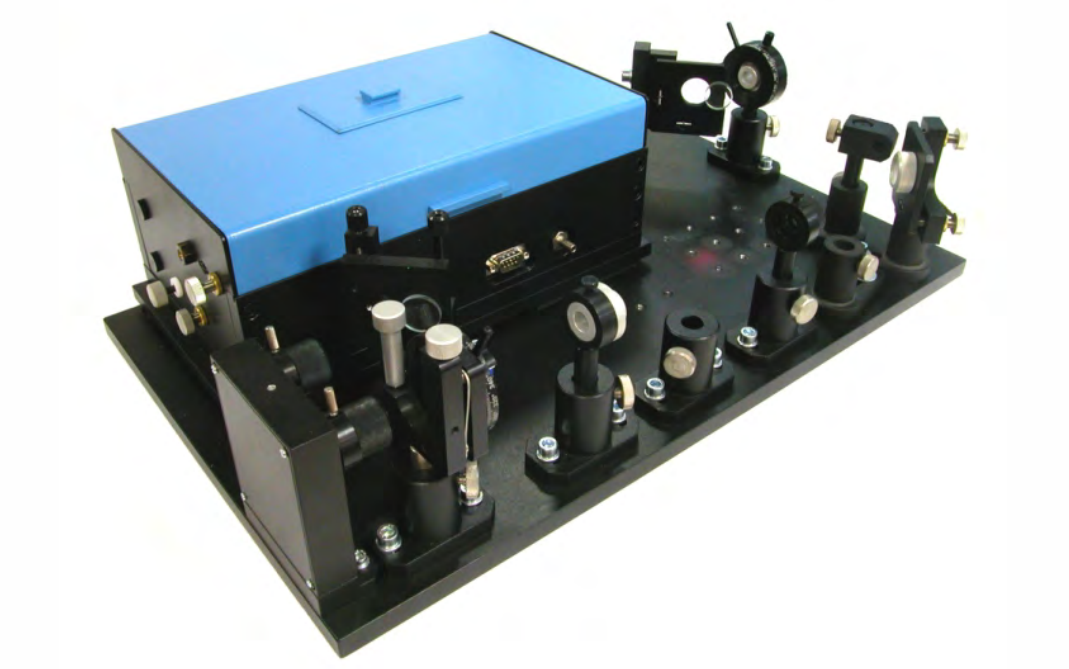

型番：FD-SF-07　メーカー：TekhnoScan　商品コード：L002596

CW Laser, resonant frequency doubler

CW Laser, resonant frequency doubler
CW Laser, resonant frequency doubler
CW Laser, resonant frequency doubler
CW Laser, resonant frequency doubler

FD-SF-07 データシート.pdf

波長: 244nm-532nm
出力: 150mW-250mW

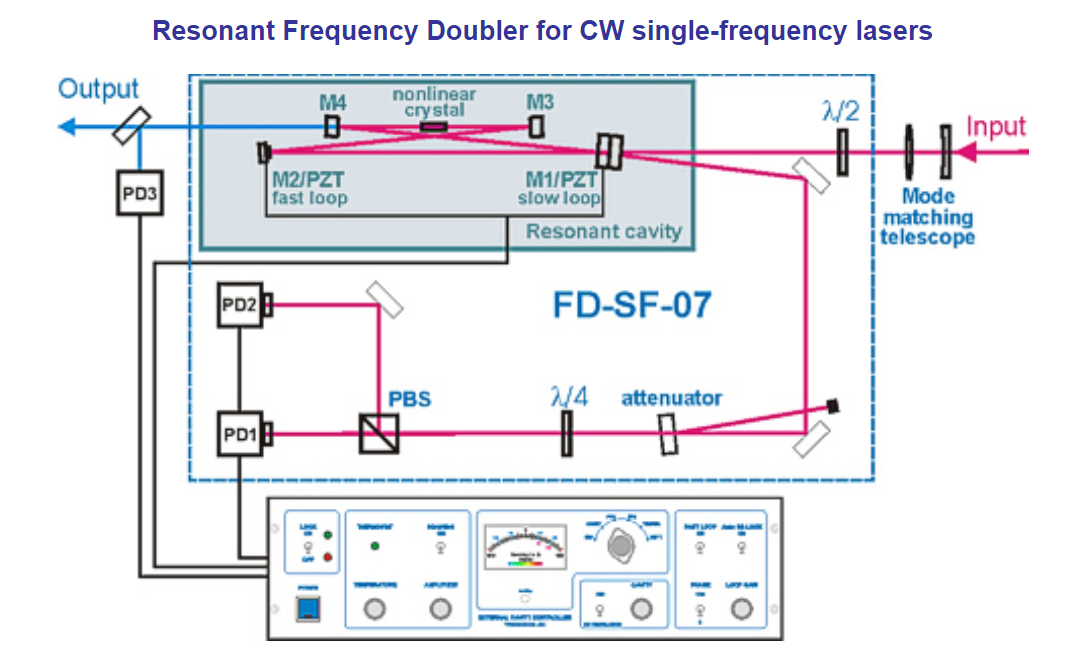

The resonant frequency doubler FD-SF-07 provides efficient generation of the second-harmonics of output radiation of CW single-frequency lasers such as Ti:Sapphire/Dye lasers, DPSS lasers (Nd:YVO4, Yb:YAG), fiber lasers (Yb, Er), and others.

Pumped with 1 W fundamental radiation power the doubler outputs: more than 250 mW within the 350-475 nm range (for 700-950-nm input),
> 200 mW within the 275-350 nm range (for 550-700-nm input)
> 150 mW within the 244-275 nm range (for 488-550-nm input)

In these conditions the maximum efficiency of conversion of the fundamental radiation into the second harmonics reaches 40% for Ti:Sapphire pump laser, 25% for green DPSS/Yb:YAG pump lasers (532/515nm) at the output power of these lasers of >=1 W.
