型番:LDX-36125-24 メーカー: 商品コード:L002838

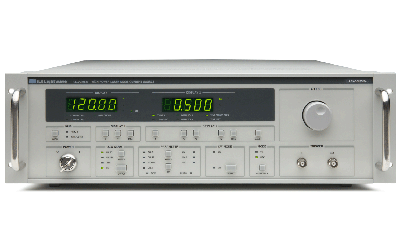

High Power Laser Diode Driver, 0 ~ 220 Amps QCW Mode, Fully Featured Benchtop Driver

メーカー希望小売価格: $11,237 電流: 125A-125A
電圧: 24V-24V

Product Overview:
The LDX-36000-12 series laser drivers are high power laser drivers which offer output currents up to 220 Amps in Pulsed / QCW mode and up to 125 Amps in CW mode of operation. The LDX-36000 Series High Power Laser Diode Drivers are a family of high performance current sources designed specifically for controlling and testing high power laser diodes. Over ten models offer maximum current ranges from 10 amps to 220 amps QCW and 125 amps CW with maximum compliance voltages from 12V to 35V. Each instrument offers high setpoint accuracy, low output noise with forward voltage and photodiode
measurements in CW, QCW-Pulse and hard pulse operating modes making these instruments ideal for precision, high power laser diode testing. Multiple laser diode protection features include adjustable
voltage and current limits, output shorting relays, slow turn on/off circuits, fast error detection circuits, and transient protection during power up and laser operation. A thermistor based temperature monitor provides additional protection through a programmable temperature limit which can be used to disable
the laser output when the limit is exceeded. Designed for automated laser diode testing in CW or pulse
mode, these drivers combine precision control and measurement and an IEEE488/GPIB interface with on-board data storage for high power laser diode characterization. For virtual instrument programming, LabView instrument drivers are available.
