型番：AP-ISO-2000PM　メーカー：AdValue Photonics　商品コード：L003227

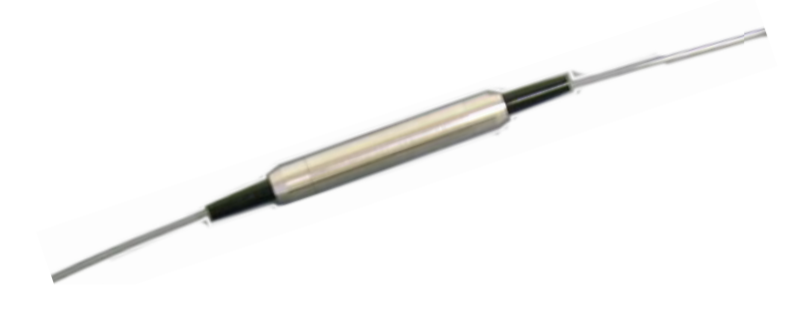

1950nm / 2W　2 Micron Fiber Isolator [AP-ISO-2000PM]

1950nm / 2W　2 Micron Fiber Isolator [AP-ISO-2000PM]
1950nm / 2W　2 Micron Fiber Isolator [AP-ISO-2000PM]
1950nm / 2W　2 Micron Fiber Isolator [AP-ISO-2000PM]
1950nm / 2W　2 Micron Fiber Isolator [AP-ISO-2000PM]
1950nm / 2W　2 Micron Fiber Isolator [AP-ISO-2000PM]
1950nm / 2W　2 Micron Fiber Isolator [AP-ISO-2000PM]

AP-ISO-2000PI_and_2000PM データシート.pdf

波長: 1950nm-1950nm
出力: 2W-2W
テクノロジー: Fiber Isolator

< Product Characteristics >
Max. Average Power: 2W
Max. Peak Power (pulsed version): 10kW
Min. Isolation (dual stage, at 25℃): 35dB (at ±50 nm)

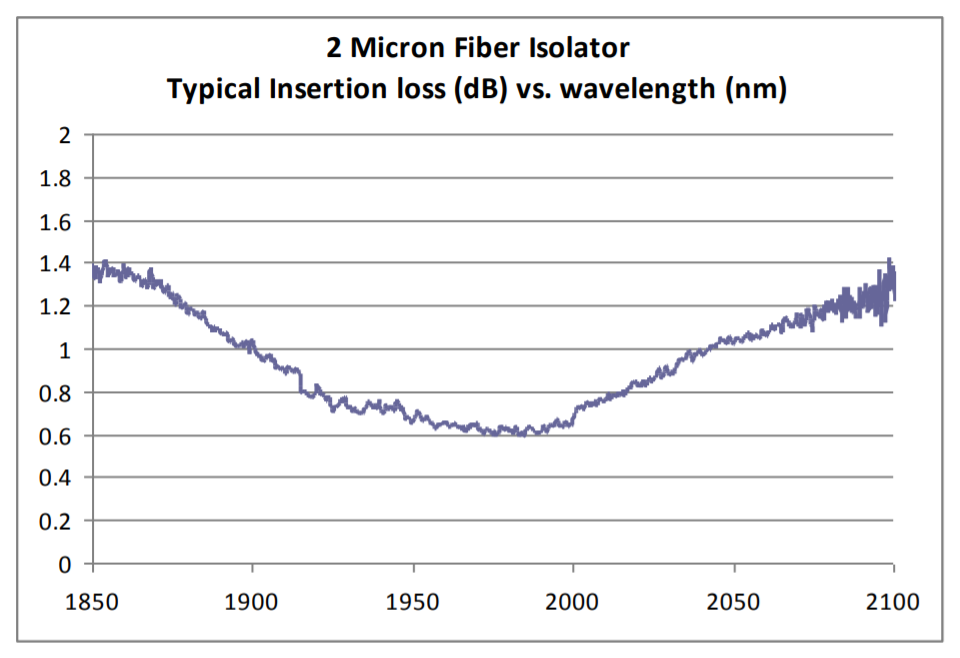

Max. Insertion Loss (dual stage, -5℃ to +70℃): 1.5dB (at ±20 nm)
Min. Return Loss (Input/Output): 50dB
Max. Polarization Dependent Loss: N/A
Max. Polarization Mode Dispersion: N/A
Min. Polarization Extinction Ratio: 18dB
Operating Temperature: -5 to +70℃
Storage Temperature: -40 to +85℃
Max. Tensile Load: 5N
Fiber Pigtail: Panda PM 1550 Fiber、250 µm Bare Fiber、Fiber Length 1.0 m

Note: Above specifications are for device without connectors.
For device with connectors, Max. Average Power Specification is 1W, InsertionLoss is 0.3 dB higher and Return Loss is 5 dB lower for each connector.

< Features >
・Mid-IR wavelength region
・Low insertion loss
・High isolation
・Excellent stability and reliability
・Small package
