型番:LB650-5-3(22X120)10DEG-AP メーカー:Picotronic GmbH 商品コード:L003624
メーカー希望小売価格: €111,68
波長: 650nm-
出力: 5mW-
電流: 10mA-30mA
電圧: 2.7V-3.3V
パッケージ: MODULE
テクノロジー: Line Laser
拡がり角: B - 0.3 mrad

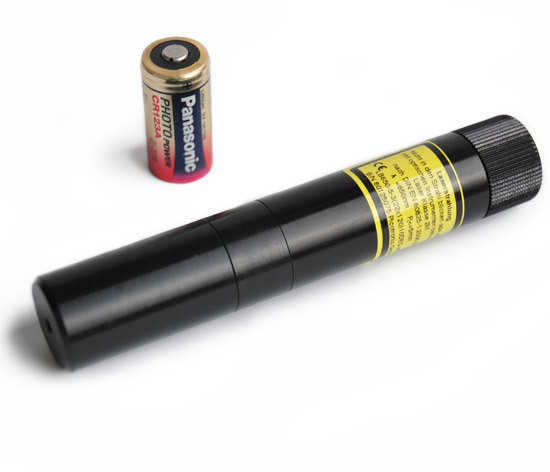

Isolated Line lasermodule, red, 10°, 650nm, 5mW, 3V DC, 22x120mm, class 2M
• Operating Voltage 3 V DC
• Laser Class 2M
• Fixed focus
• Low power consumption
• With battery
< Main Parameters (*) >
Wavelength typ 650 nm
Optical Output Power typ 5 mW
Operating Voltage min 2.7 typ 3 max 3.3 V DC
Operating Current min 10 typ 20 max 30 mA
Operating Temperature min -20 max 50 °C
Storage Temperature min -40 max 80 °C
< Main Data >
Warranty 1 years
< Technical Parameters >
Lifetime > 10,000 h
RoHS yes
< Optical Parameters >
Beam Shape Line
Laser Class 2M
Divergence B - 0.3 mrad
Fan Angle 10 °
Line Thickness <1mm@2.4m
Operating Distance 2.4 m
Optics glass lens AR coated
Laser technology Single Mode Diode
Axial Divergence ± 1 °
Focus fixed (2400mm)
< Electrical Parameters >
Potential of Housing VDD(+)

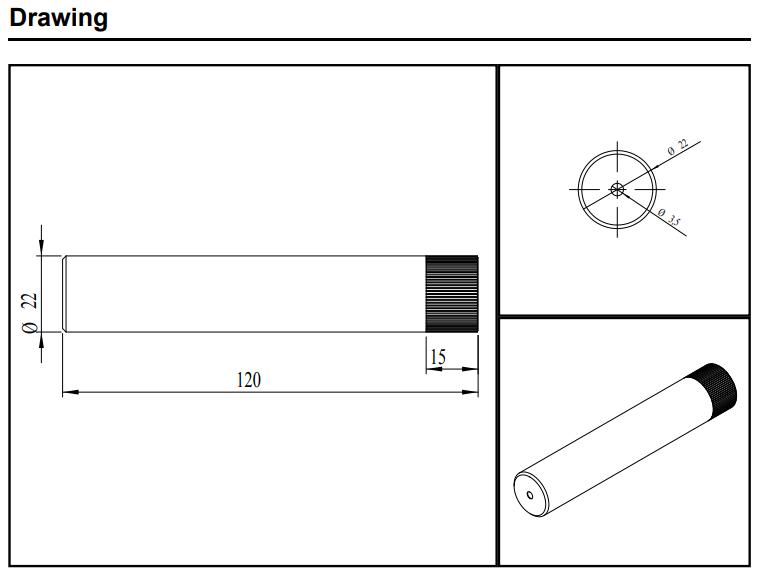

< Mechanical Parameters >
Size Ø22x120 mm
Material aluminium
Output Aperture 3.5 mm
Housing Color black
Weight 94.6 g
(*) Over the complete operating temperature range
