型番：AP-ML1　メーカー：AdValue Photonics　商品コード：L002793

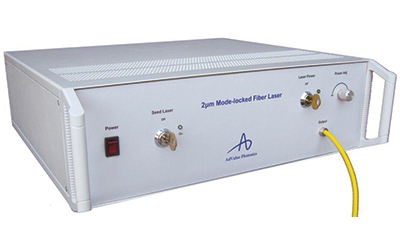

1.95±0.05µm / 1W　2 Micron High Power Mode-Locked Fiber Laser

波長: 1.9µm-2µm
出力: 1W-10kW
テクノロジー: Locked Fiber Laser
パルス幅: < 3 ps (femtoseconds available)
冷却方法: Forced air

< Optical Characteristics >
Operating wavelength: 1.95±0.05 µm (option: 2.07±0.02 µm)
Average power: 1 W (higher or lower power available)
Pulse repetition rate: 20-40 MHz (non-adjustable factory set)
Peak power* : 10 kW
Beam quality, M2: < 1.3
Output polarization: Random (Option: Linear Polarization)
Output delivery: Optical fiber armored cable terminated with collimator
* For special requirement, please contact AdValue Photonics for options.

< General Characteristics >
Operating temperature: +18 to +30℃
Storage temperature: -10 to +70℃
Power requirement: AC 100~240 V (50/60Hz)
Warm-up time: 10 minutes

< Features >
・Short pulse width
・Broad spectral bandwidth
・High peak power
・Near diffraction limited beam quality
・Turn-key system with no maintenance

< Applications >
・Mid-IR generation
・Nonlinear optics studies
・Spectroscopy
・Research & development
