型番：FDL-SF550　メーカー：　商品コード：L002846

350 Amp High Power Laser Diode Driver, QCW and CW Current Output Modes

メーカー希望小売価格: $4,200 電流: 350A-350A
電圧: 200V-200V

Product Overview:
These high power laser diode drivers have been designed to control laser diode bars, stacks and arrays in QCW or CW current output mode. They offer drive current up to 350 Amps and 4.2 kW of available total output power. In Quasi-CW mode the user can adjust the laser diode driver QCW pulse rate from 10-1000 µs.

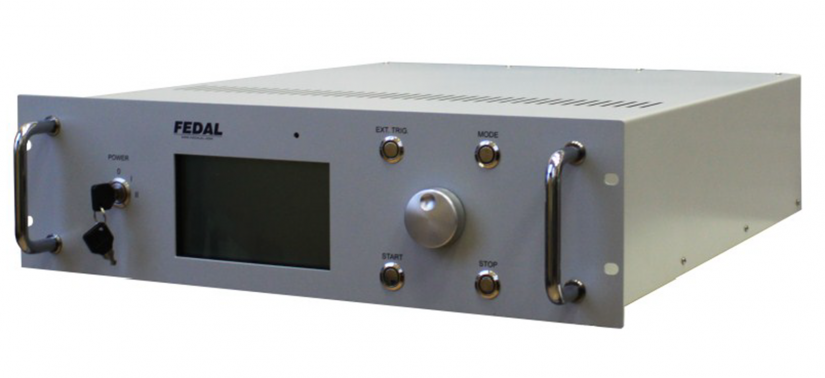

These FDL-SF550 precision high power benchtop instruments feature a simple to use LCD display with an intuitive menu structure as well as an RS232 remote communication. They also have rear panel input and output triggers. These drivers are optimized current sources for precisely controlling diode lasers in the laboratory and also in industrial applications.

These laser power supplies were developed primarily for driving high power arrays and stacks. These laser diode arrays are commonly used for pumping DPSS lasers and also for pumping fiber lasers. Additionally, current sources can be equipped with a TEC on request. Protection features include a fail-safe current limit and duty cycle limit as well as safety interlocks.

見積りBOXへ入れる欲しい物リストに登録

価格	地域	代理店
代理店が登録されていません

350 Amp High Power Laser Diode Driver, QCW and CW Current Output Modes
