型番：ALC-1680-07000-FM400.22 - Quinta　メーカー：Akela Laser Corporation　商品コード：L003271

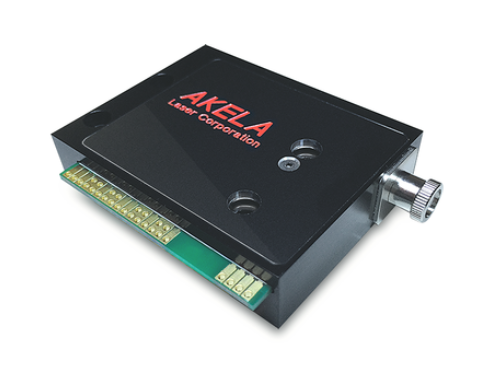

1680±20nm / 7W　High Power Laser Module with Fiber Output: Quinta

1680±20nm / 7W　High Power Laser Module with Fiber Output: Quinta
1680±20nm / 7W　High Power Laser Module with Fiber Output: Quinta
1680±20nm / 7W　High Power Laser Module with Fiber Output: Quinta
1680±20nm / 7W　High Power Laser Module with Fiber Output: Quinta
1680±20nm / 7W　High Power Laser Module with Fiber Output: Quinta
1680±20nm / 7W　High Power Laser Module with Fiber Output: Quinta

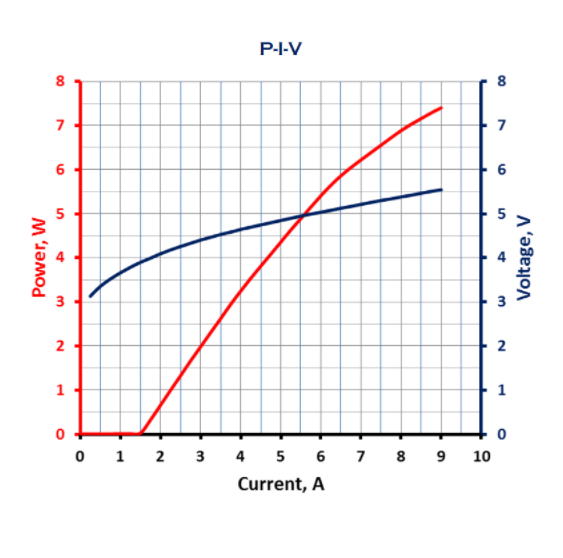

波長: 1660nm-1700nm
出力: 7.0W-7.0W
電流: 8.3A-8.3A
電圧: 5.5V-5.5V
パッケージ: fiber coupled module
テクノロジー: high power single emitter

(Features)
Compact size
Detachable 400µm SMA-fiber
Thermistor
Power monitor

(Applications)
Medical
Cr:ZnSe Laser Pumping

(Specifications)
Wavelength Tolerance　±20 nm
Spectral Width (FWHM)　<20 nm
Wavelength Temp. Coefficient　0.38 nm/°C
Threshold Current　1.5 A

(Fiber Parameters)
Fiber Core Diameter　400 µm
Numerical Aperture　0.22
Fiber Connector　SMA-905

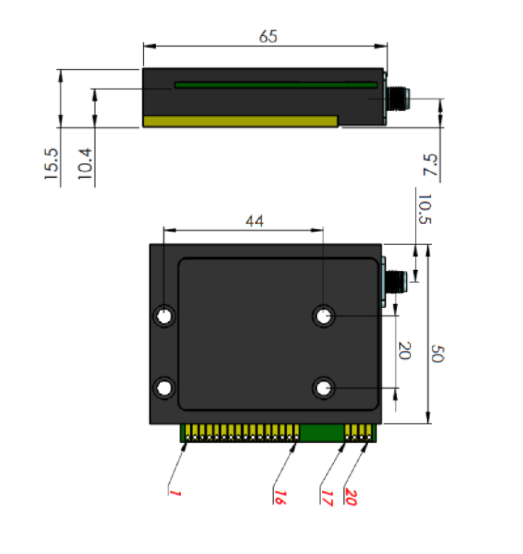

(Pin-Out)
1. Red pointer (+)
2. Red pointer (-)
3. Power monitor (+)
4. Laser Diode Anode
5. Laser Diode Anode
6. Not connected
7. Not connected
8. Not connected
9. Thermistor
10. Thermistor
11. Not connected
12. Not connected
13. Power monitor (-)
14. Laser Diode Cathode
15. Laser Diode Cathode
16. Not connected
17. Fiber sensor
18. Fiber sensor
19. Fiber sensor
20. Fiber sensor
