型番：　メーカー：Spectra-Physics　商品コード：L002459

Q-Switched Laser, Nanosecond, 1064nm, 27 Watts

Q-Switched Laser, Nanosecond, 1064nm, 27 Watts
Q-Switched Laser, Nanosecond, 1064nm, 27 Watts
Q-Switched Laser, Nanosecond, 1064nm, 27 Watts
Q-Switched Laser, Nanosecond, 1064nm, 27 Watts
Q-Switched Laser, Nanosecond, 1064nm, 27 Watts
Q-Switched Laser, Nanosecond, 1064nm, 27 Watts

波長: 1064nm-1064nm
出力: 27W-27W
テクノロジー: Q-Switched Laser

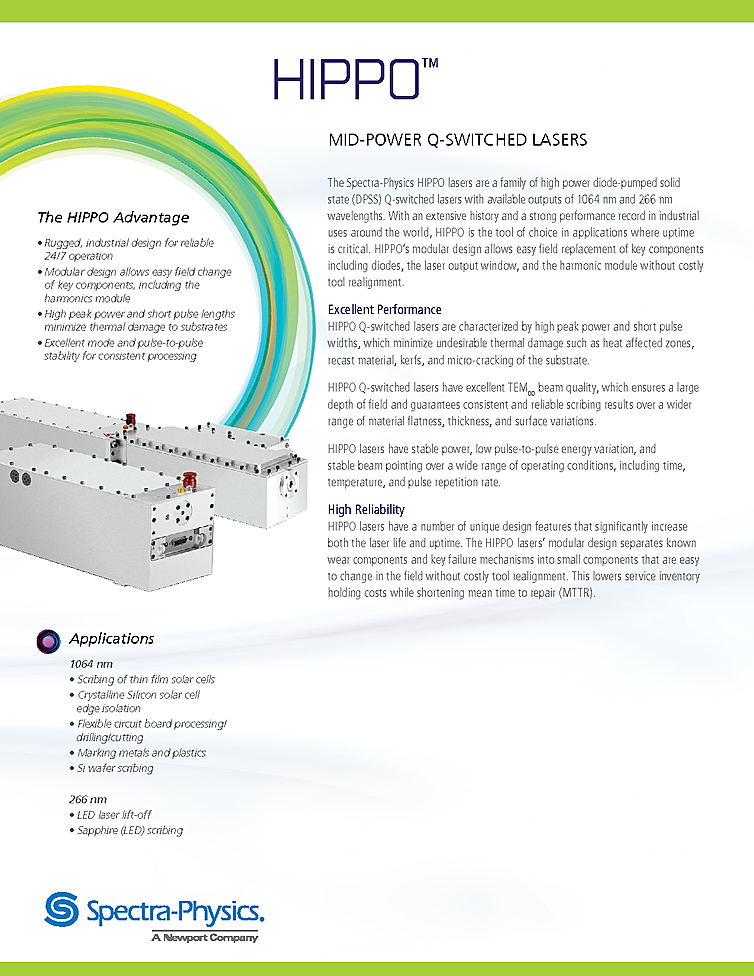

Spectra-Physics Q-Switched Laser was designed for applications in Scribing of thin film solar cells, Crystalline Silicon solar cell edge isolation, Flexible circuit board processing/ drilling/cutting, Marking metals and plastics and Si wafer scribing. Nanosecond laser features a rugged industrial design for reliabile 24/7 operation in demanding production environments. For field service the laser has a modular design for key components including the harmonics module. Consistent processing is possible because of excellent mode and pulse-to-pulse stability. Pulse width is 30ns with a pulse repetition rate of 30-250kHz and peak output powers of 9kW. Q-switched laser with a wavelength of 1064nm and average output power of 27 watts.

見積りBOXへ入れる 欲しい物リストに登録
メーカーWebサイトへ
価格 地域 代理店
要問い合わせ スペクトラ・フィジックス株式会社
