型番：1064nm fiber coupled laser diodes　メーカー：AeroDIODE　商品コード：L003567

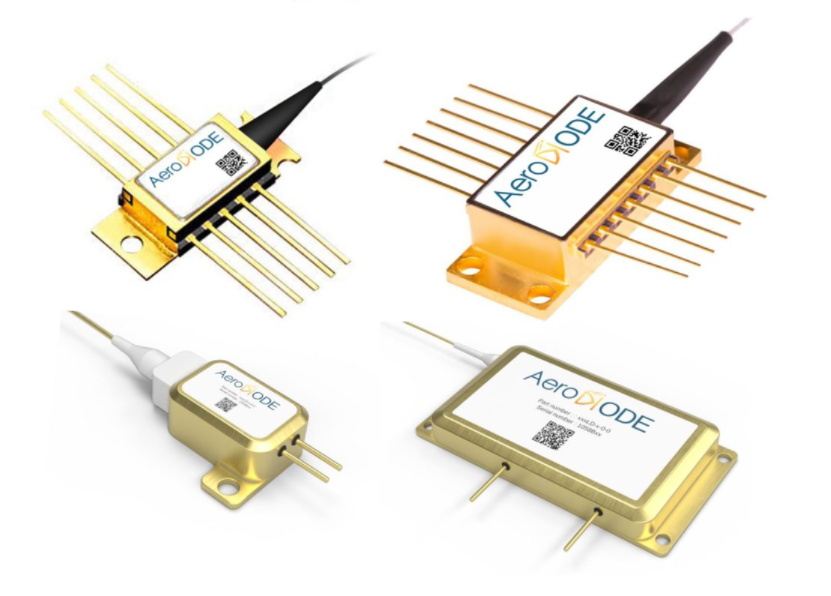

1064nm Laser Diodes CW & Pulsed – Bragg or DFB

1064nm Laser Diodes CW & Pulsed – Bragg or DFB
1064nm Laser Diodes CW & Pulsed – Bragg or DFB
1064nm Laser Diodes CW & Pulsed – Bragg or DFB
1064nm Laser Diodes CW & Pulsed – Bragg or DFB
1064nm Laser Diodes CW & Pulsed – Bragg or DFB
1064nm Laser Diodes CW & Pulsed – Bragg or DFB
1064nm Laser Diodes CW & Pulsed – Bragg or DFB
1064nm Laser Diodes CW & Pulsed – Bragg or DFB
1064nm Laser Diodes CW & Pulsed – Bragg or DFB
1064nm Laser Diodes CW & Pulsed – Bragg or DFB
1064nm Laser Diodes CW & Pulsed – Bragg or DFB
1064nm Laser Diodes CW & Pulsed – Bragg or DFB
1064nm Laser Diodes CW & Pulsed – Bragg or DFB
1064nm Laser Diodes CW & Pulsed – Bragg or DFB
1064nm Laser Diodes CW & Pulsed – Bragg or DFB
1064nm Laser Diodes CW & Pulsed – Bragg or DFB

1064nm laser diodes データシート.pdf

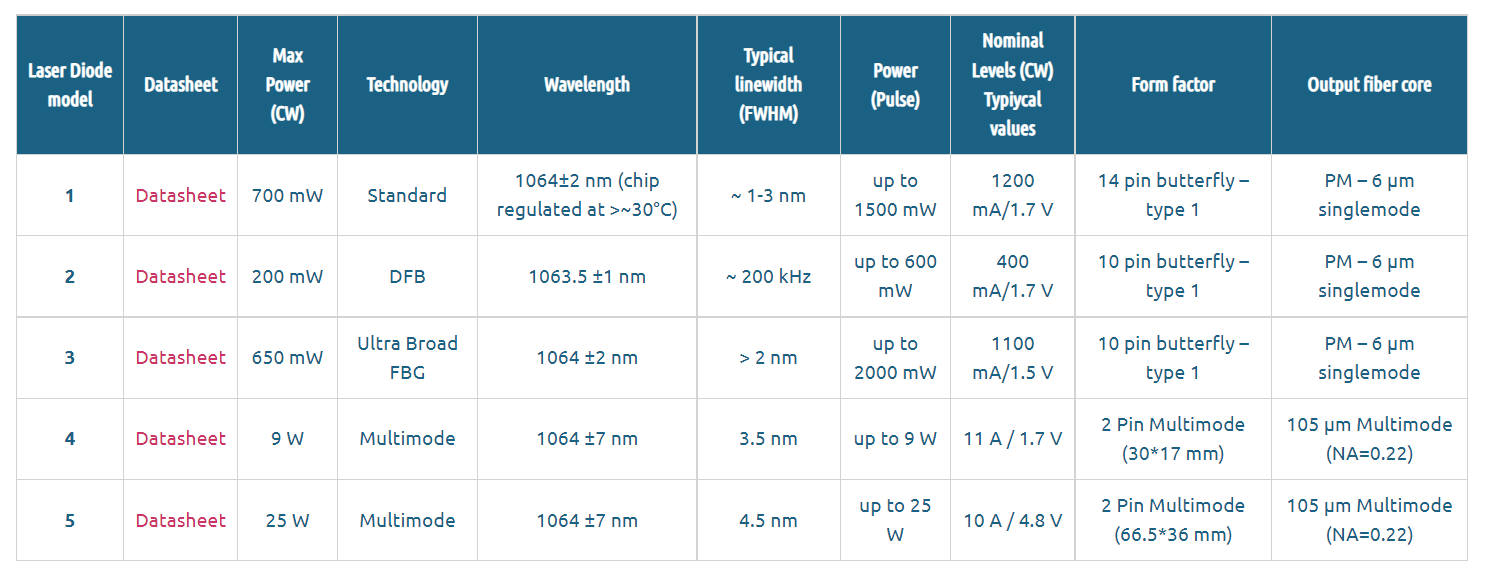

波長: 1059nm-1069nm
出力: 200mW-9W
電流: 350mA-12.0A
電圧: 1.7V-4.0V

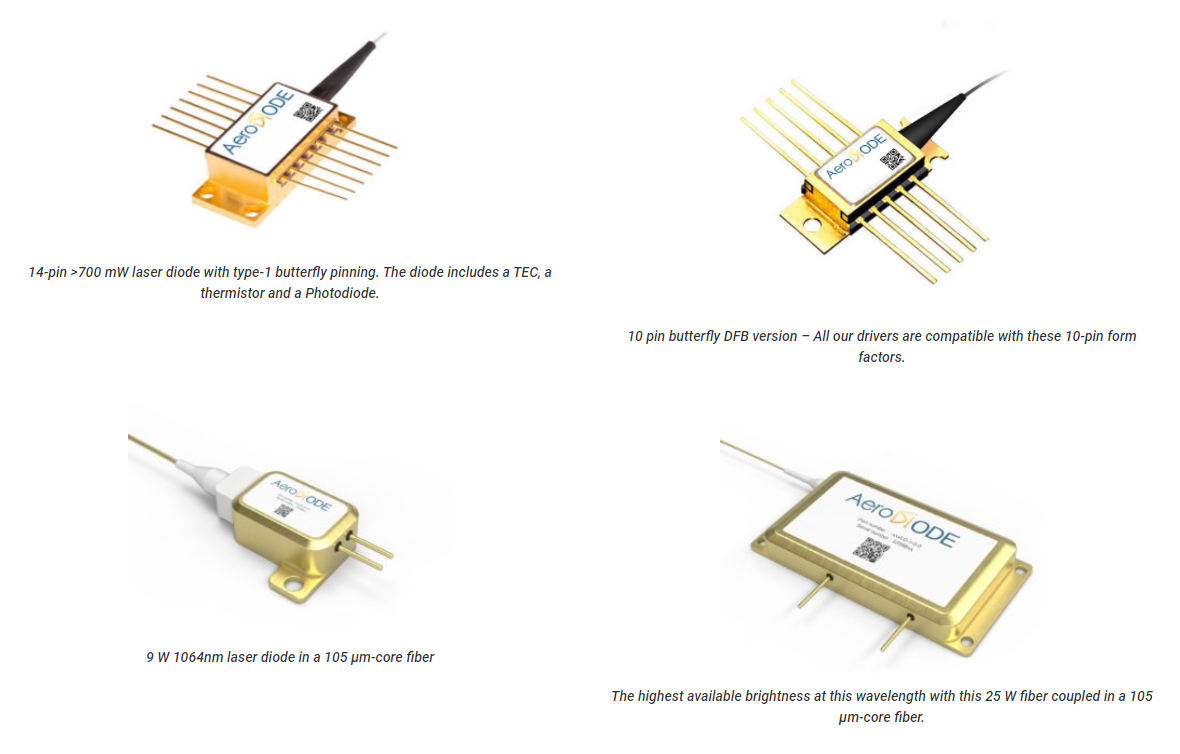

パッケージ: Butterfly package、10 pin Butterfly package
テクノロジー: Single mode Fabry Perot、DFB、Fabry Perrot with broad FBG、Single emitter Multimode、Multi-emitter Multimode

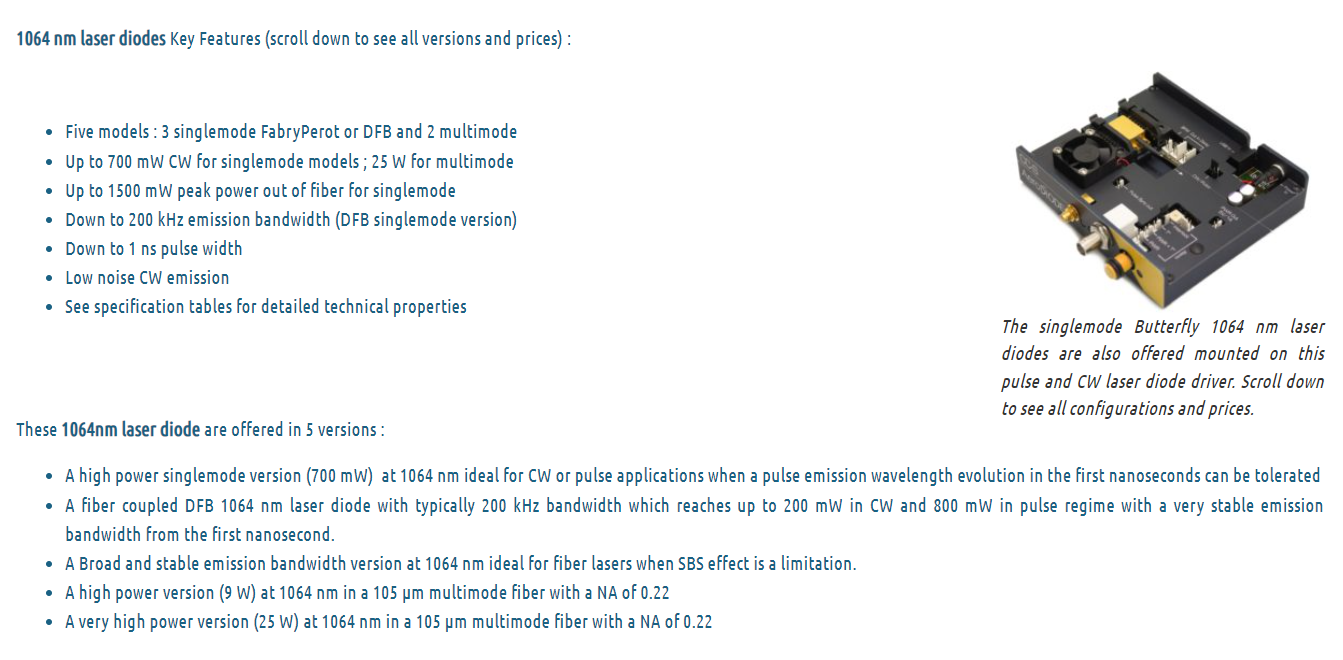

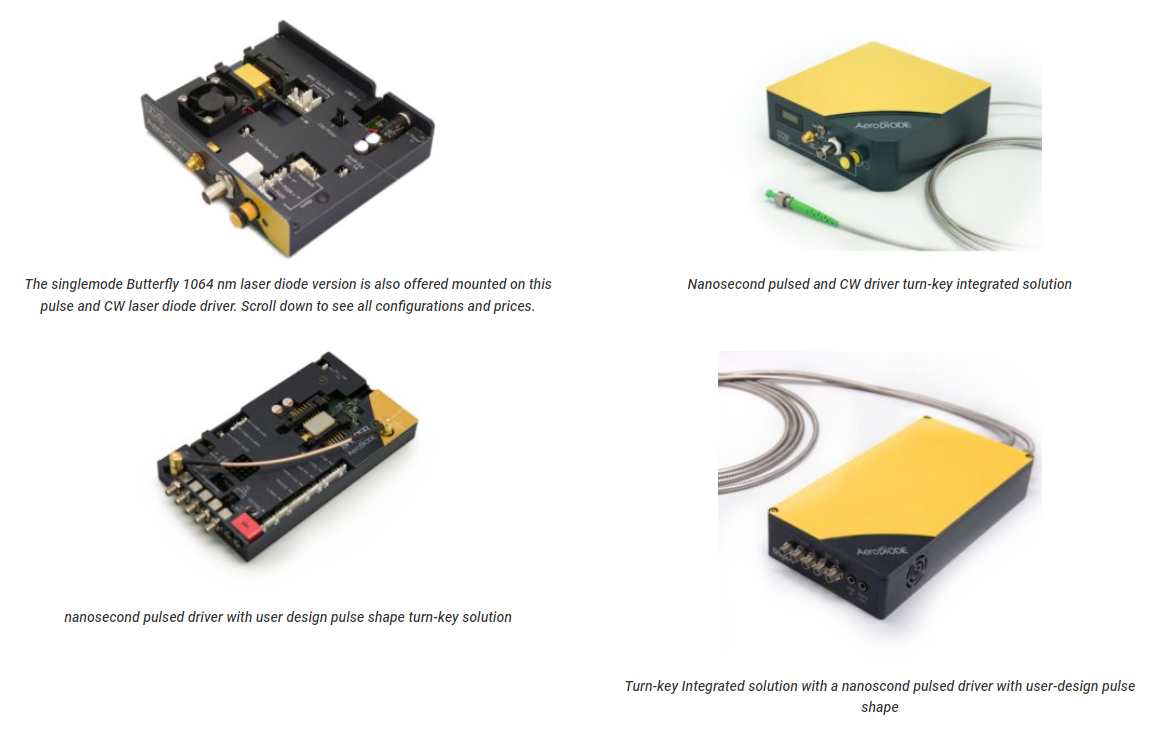

These fiber coupled 1064 nm laser diodes are offered as stock items or associated with a CW or Pulsed Laser Diode Driver. They are compatible with low noise CW or high speed nanosecond pulsed drivers (scroll down to see all versions). These turn-key laser modules with TEC controller are offered in an open or integrated version.

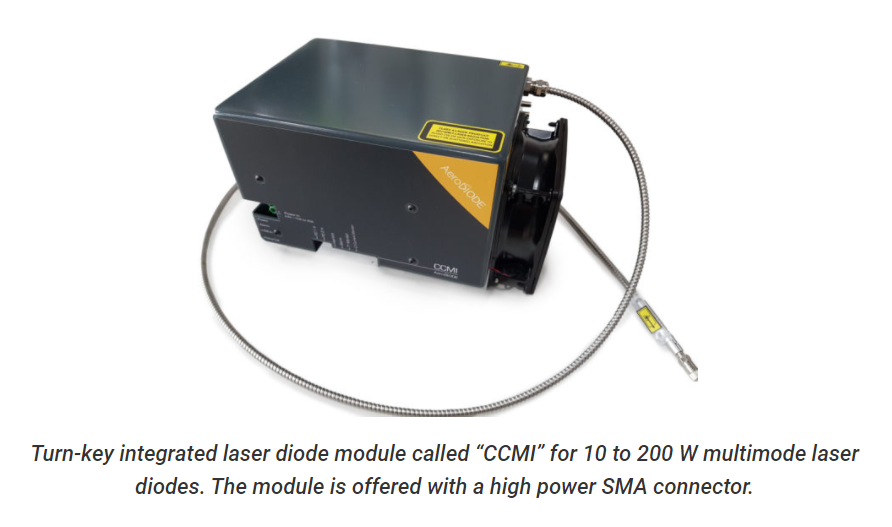

These 1064 nm laser diode can reach high power in nanosecond pulse regime up to 2 W. Most Turn-key diode+driver solutions are optimized for single-shot to CW performances with pulse width lengths down to 1 nanosecond. 1064 nm laser diode precision pulses are generated internally by an on-board pulse generator, or on demand from an external TTL signal. A multimode version is also offered for CW emission up to 10 W.
