型番：DFB-xxx-BT-xx-2.5-x-xx-LC-476 TOSA Module　メーカー：Applied Optoelectronics, inc.　商品コード：L002412

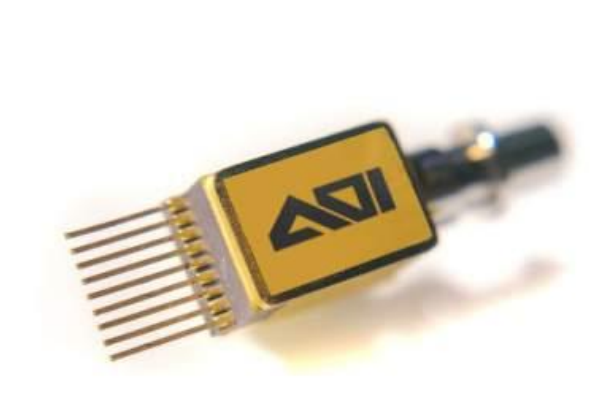

DFB-TOSA (9-pin) Module with integrated laser, monitor PD and micro-TEC

DFB-xxx-BT-xx-2.5-x-xx-LC-476 TOSA Module データシート.pdf

波長: 1528nm-1563nm
出力: -6.0mW
電流: -80mA
パッケージ: Compact MSA compliant 9-pin box TOSA package
テクノロジー: DFB Laser

【Description】

The DFB-xxx-BT-xx-2.5-x-xx-LC-476 DFB transmitter optical subassembly (TOSA) module with integrated laser, monitor PD and micro-TEC in an 9 pin small form factor package. It is designed for direct modulation DWDM SONET OC-48, SDH STM-16,GbE, Fiber channel applications for use in transceivers or other transmit/transponder modules. The TOSA will be available for up to 200km @1550nm (3600ps/nm) reaches. The device is available in the full range of C-band ITU-T wavelengths on a 100GHz channel spacing.

【Features】

C-band wavelengths selectable on ITUT 100GHz channel spacing
Direct modulation up to 2.7 Gbps
Compact MSA compliant 9-pin box TOSA package
Meets GR 468 reliability specifications
Available SC/APC and FC/APC or LC receptacle style

【Applications】

SFP pluggable transcievers for DWDM, CWDM, SONET/SDH, GbE and fiber channel
1550-nm line cards
Digital video transmission
