型番:30.070.00112 メーカー:Artifex Engineering 商品コード:L003780

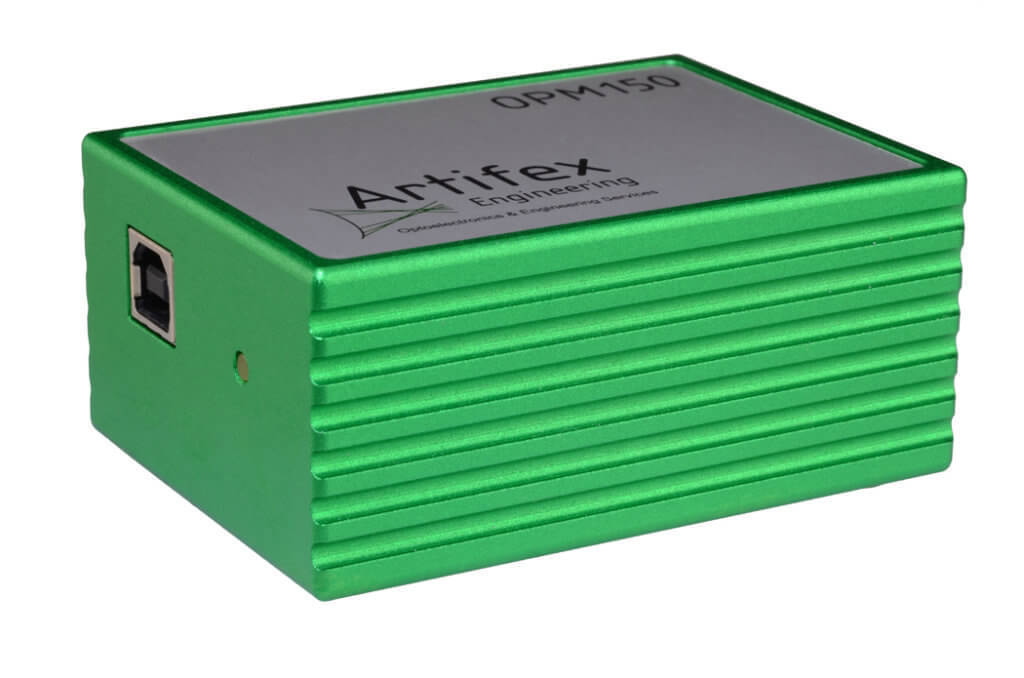

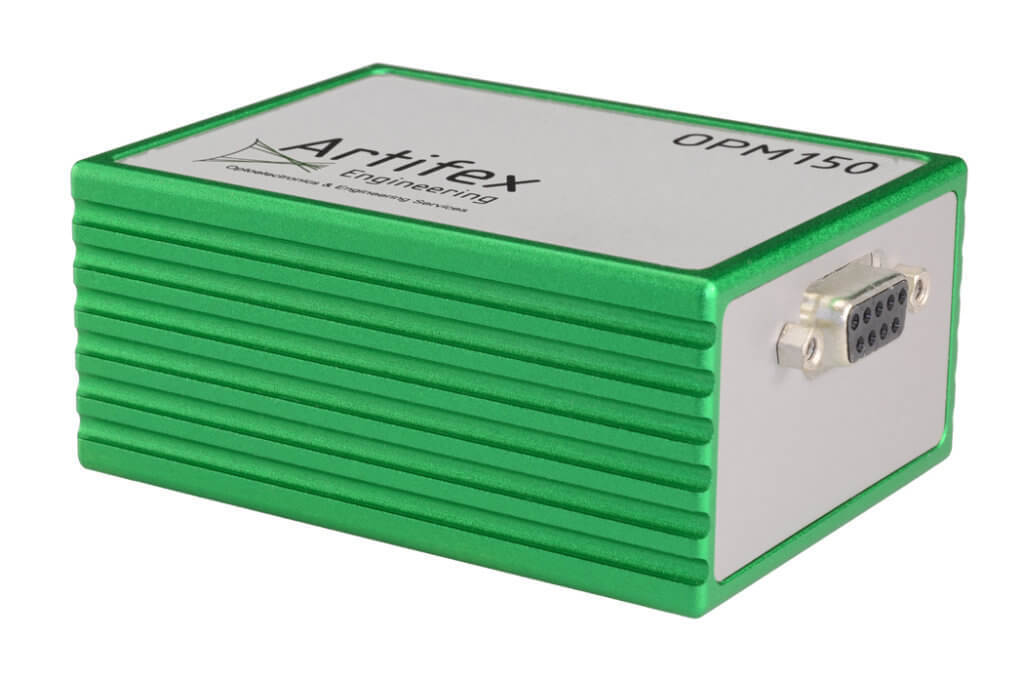

OPM150 5Hz Base Module

テクノロジー: CW and pulse

< Description >
The OPM150 base module contains the electrical transimpedance amplifier for the OPM150 detector heads as well as the USB communication module. The unit is USB powered and controlled. No external power supply is required. The enclosure is a solid body milled from full material. It is very robust and gives good shielding to electromagnetic interference. The base of the body has two tapped holes for mounting. The unit is very compact with dimensions 60x81x36mm (WxLxH).


< Specifications >
Connectors: DB9 (detector head); USB (communication)
Bandwidth: 5Hz
Sampling rate: 30S/s (via GUI software); 600S/s direct polling
Gain stages: 1kV/A; 10kV/A; 100kV/A; 1MV/A; 10MV/A
Accuracy: ±1%
Power supply: USB
Functions: graph and digital display modes, averaging

価格 地域 代理店
要問い合わせ 京都府 株式会社光響
