型番：　メーカー：Ondax, Inc.　商品コード：L000229

785nm, 500mW, Wavelength Stabilized

785nm, 500mW, Wavelength Stabilized
785nm, 500mW, Wavelength Stabilized
785nm, 500mW, Wavelength Stabilized
785nm, 500mW, Wavelength Stabilized

波長: 785nm-785nm
出力: 500mW-500mW
スペクトル幅: < 500kHz
パッケージ: TO-can, collimated
テクノロジー: narrow linewidth laser

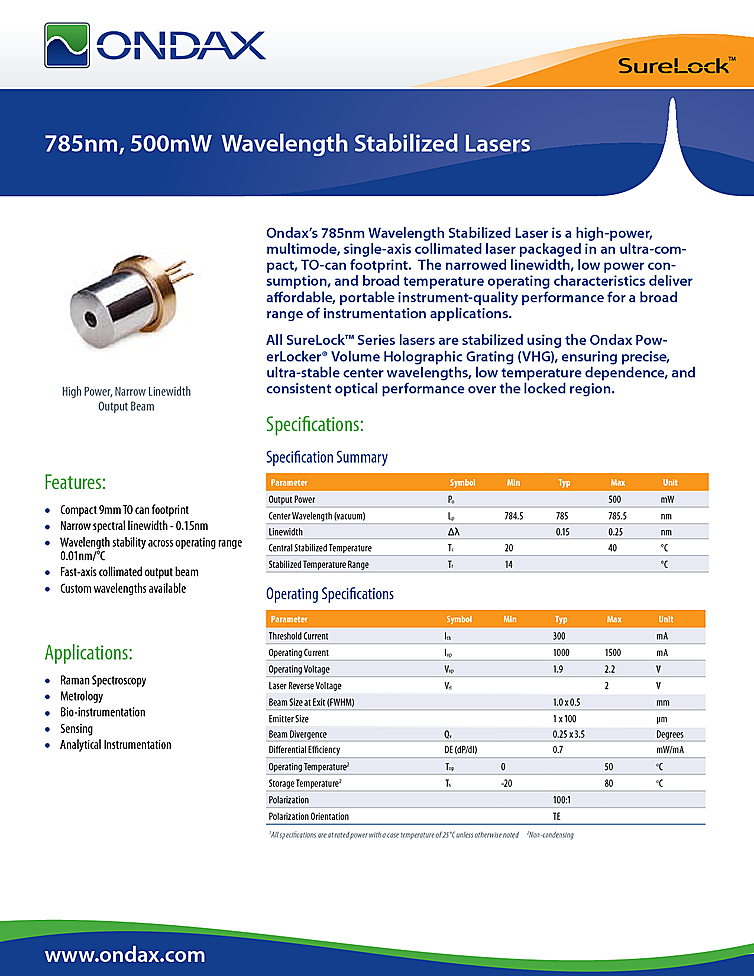

785nm : Ondax’s 785nm Wavelength Stabilized Laser is a high-power, multimode, single-axis collimated laser packaged in an ultra-compact, TO-can footprint. The narrowed linewidth, low power consumption, and broad temperature operating characteristics deliver affordable, portable instrument-quality performance for a broad range of instrumentation applications. All SureLock™ Series lasers are stabilized using the Ondax PowerLocker®
Volume Holographic Grating (VHG), ensuring precise, ultra-stable center wavelengths, low temperature dependence, and consistent optical performance over the locked region.

Features:
• Compact 9mm TO can footprint
• Narrow spectral linewidth - 0.15nm
• Wavelength stability across operating range 0.01nm/°C
• Fast-axis collimated output beam
• Custom wavelengths available

Applications:
• Raman Spectroscopy
• Metrology
• Bio-instrumentation
• Sensing
• Analytical Instrumentation

For more information about Ondax products and the name of a local representative or distributor, visit www.ondax.com, email sales@ondax.com, or call (626) 357-9600.

見積りBOXへ入れる 欲しい物リストに登録
メーカーWebサイトへ
価格 地域 代理店
要問い合わせ 東京都 株式会社ティー・イー・エム
