型番：　メーカー：ILX Lightwave (Newport)　商品コード：L002925

LDT-5910 Series TEC Controller

LDT-5910 Series TEC Controller
LDT-5910 Series TEC Controller
LDT-5910 Series TEC Controller
LDT-5910 Series TEC Controller
LDT-5910 Series TEC Controller
LDT-5910 Series TEC Controller

LDT-5910B Replacement This laser diode temperature controller from ILX Lightwave is a replacement for the LDT-5910B series laser diode TEC controller. This product is a 32 Watt thermoelectric temperature control unit with precision set point resolution of +0.001 degrees Celsius. The long term temperature stability of this temperature controller is +0.002 C. Other key features mentioned are a fully programmable PID control loop with auto-tune and preset PID values and independent heating and cooling current limits. The LDT-5910C can operate in constant temperature, sensor, and TE current while measuring TE current, sensor resistance, and TE voltage. These units replaced the obsolete ILX Lightwave LDT-5910B and A series controllers. For more information, please refer to the attached specification sheet.

見積りBOXへ入れる 欲しい物リストに登録
メーカーWebサイトへ

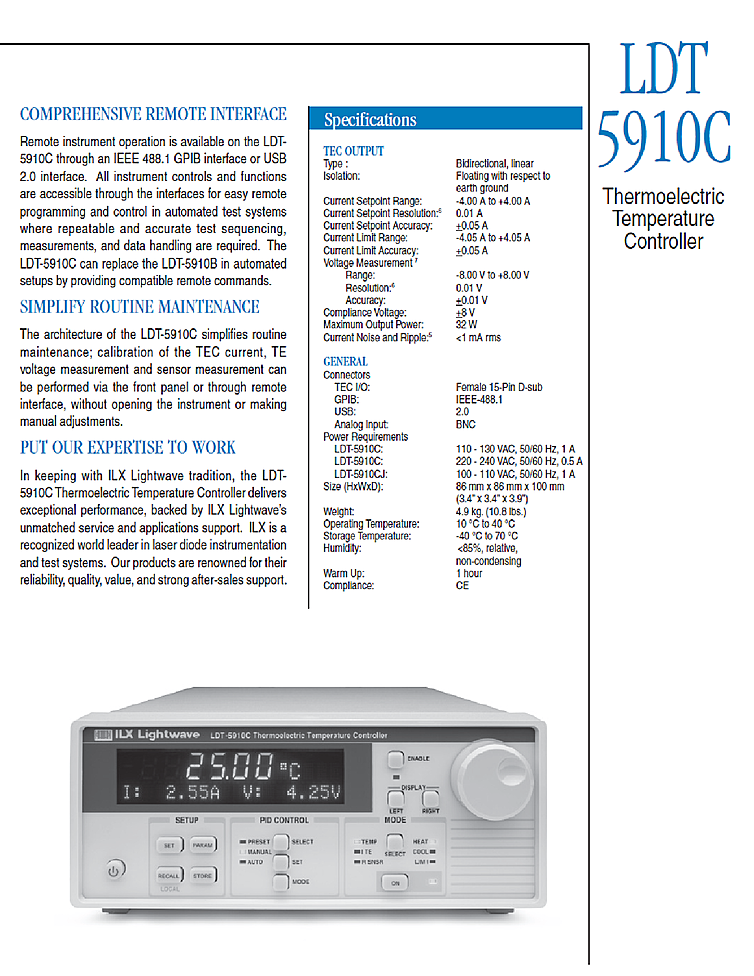

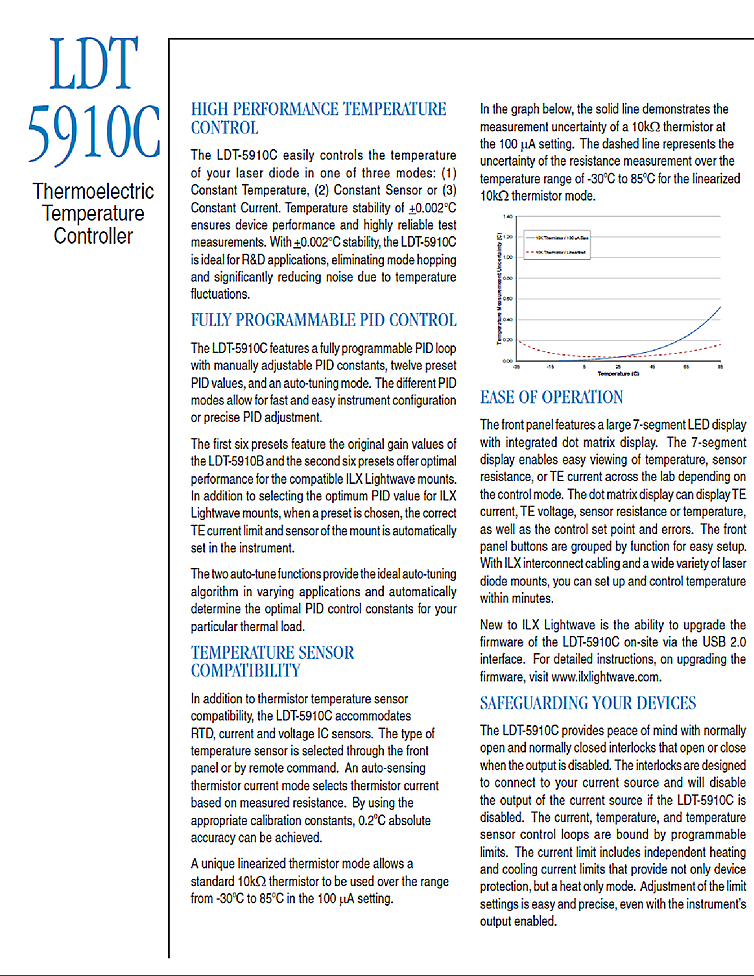

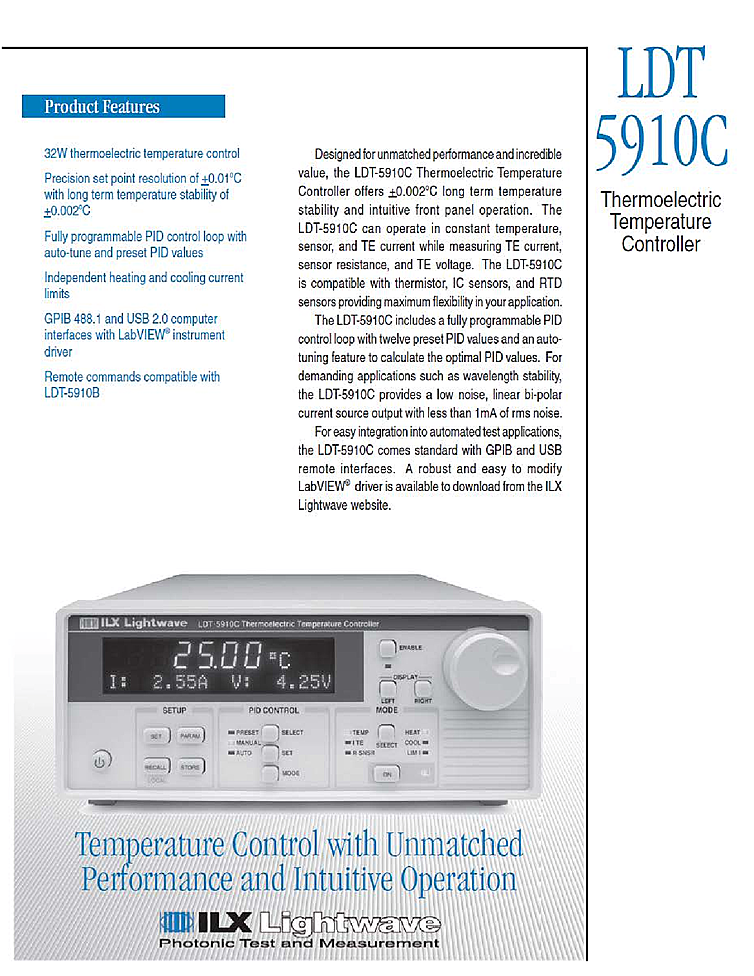

価格 地域 代理店
要問い合わせ 株式会社日本レーザー
