型番:LB650-2.5-3(16X45) メーカー:Picotronic GmbH 商品コード:L000835

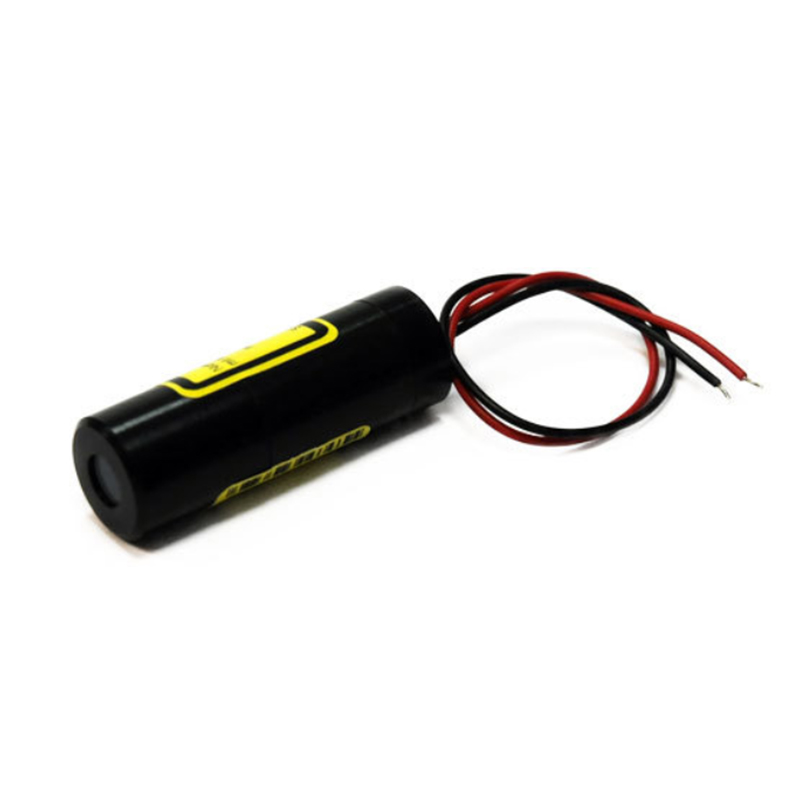

650nm / 2.5mW Red Isolated Line Lasermodule

メーカー希望小売価格: €53,70 波長: 650nm-
出力: 2.5mW-
電流: 15mA-40mA
電圧: 2.7V-3.3V
パッケージ: MODULE
テクノロジー: Line Laser
拡がり角: B - 0.3 mrad

Isolated Line lasermodule, red, 90°, 650nm, 2.5mW, 3V DC, 16x45mm, class 1

• Fan angle 90 °
• Operating Voltage 3 V DC
• Laser Class 1
• Uniform line thickness
• Fixed focus

< Main Parameters (*) >
Wavelength typ 650 nm
Optical Output Power typ 2.5 mW
Operating Voltage min 2.7 typ 3 max 3.3 V DC
Operating Current min 15 typ 25 max 40 mA
Operating Temperature min -20 max 50 °C
Storage Temperature min -40 max 80 °C

< Main Data >
Warranty 1 years

< Technical Parameters >
Lifetime > 5,000 h
RoHS yes

< Optical Parameters >
Beam Shape Line
Laser Class 1
Divergence B - 0.3 mrad
Fan Angle 90 °
Line Thickness <1.5mm@2m
Operating Distance 2 m
Optics glass lens AR coated
Laser technology Single Mode Diode
Focus fixed (2000mm)

< Electrical Parameters >
Potential of Housing isolated
Power Supply LFNT-3

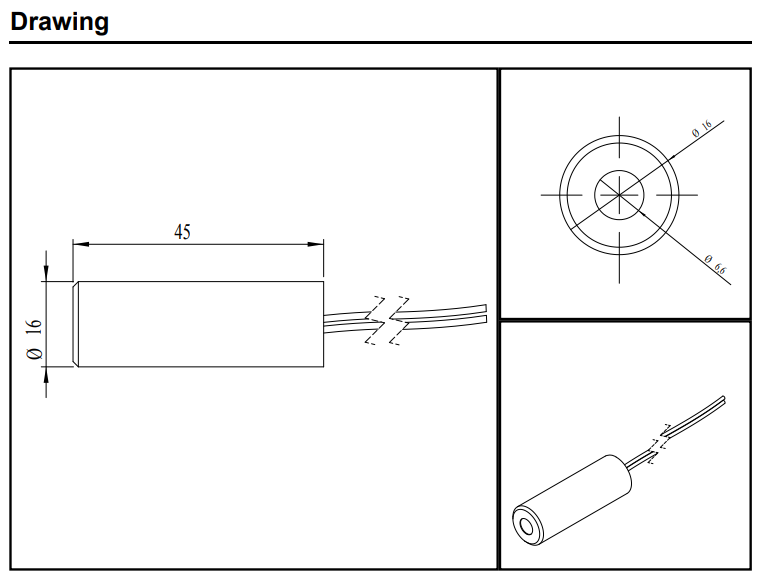

< Mechanical Parameters >
Size Ø16x45 mm
Material aluminium
Cable length 100 mm
Wire type 26AWG, 0,14mm²
Output Aperture 6.8 mm
Weight 23 g
Stripping of wire 5 mm

(*) Over the complete operating temperature range
