型番：155G1S02X、155G1S04X、155G1S07X　メーカー：LASER COMPONENTS GmbH　商品コード：L002251

High Power Pulsed Laser Diodes【1550-Series】

High Power Pulsed Laser Diodes【1550-Series】
High Power Pulsed Laser Diodes【1550-Series】
High Power Pulsed Laser Diodes【1550-Series】
High Power Pulsed Laser Diodes【1550-Series】

Pulsed Laser Diodes 1550-Series データシート.pdf

波長: 1535nm-1565nm
出力: 6W-15.5W
電圧: 5.5V-8.2V
パッケージ: Hermetic and custom designed package
テクノロジー: Pulsed

< Description >
Rangefinder systems that are built with 1550 nm pulsed laser diodes (PLDs) also operate at high power levels yet still in the eye-safe range – due to their wavelength. Common night-vision goggles cannot detect this wavelength, which makes these PLDs particularly well suited for military laser rangefinders or friend/foe identification.

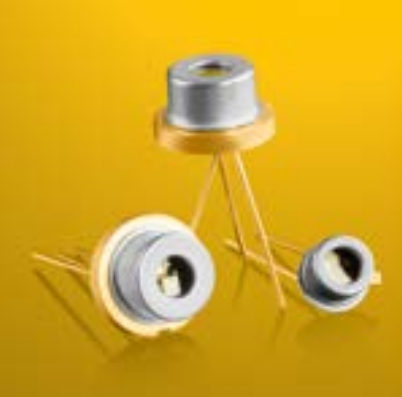

The base material of the 1550 series is InP with additional InGaAsP layers. The InGaAsP structure ensures high reliability, very good beam characteristics, and a high temperature stability. The wide operating temperature range is between –45°C and +85°C. The 1550 nm pulsed laser diodes are housed in a TO-18 can. They are also available in 9 mm packages or in customer-specific designs.

< Features >
▪ High intensity output
▪ Low divergence
▪ Excellent temperature stability
▪ Hermetic and custom designed package
▪ 25 degree beam divergence

< Applications >
▪ Eye safe range finding
▪ Surveying equipment
▪ “Friend or Foe” identification
▪ Laser radar
▪ Security barrier
