型番：VPSL-0635-005-x-9-B　メーカー：Blue Sky Research　商品コード：L003343

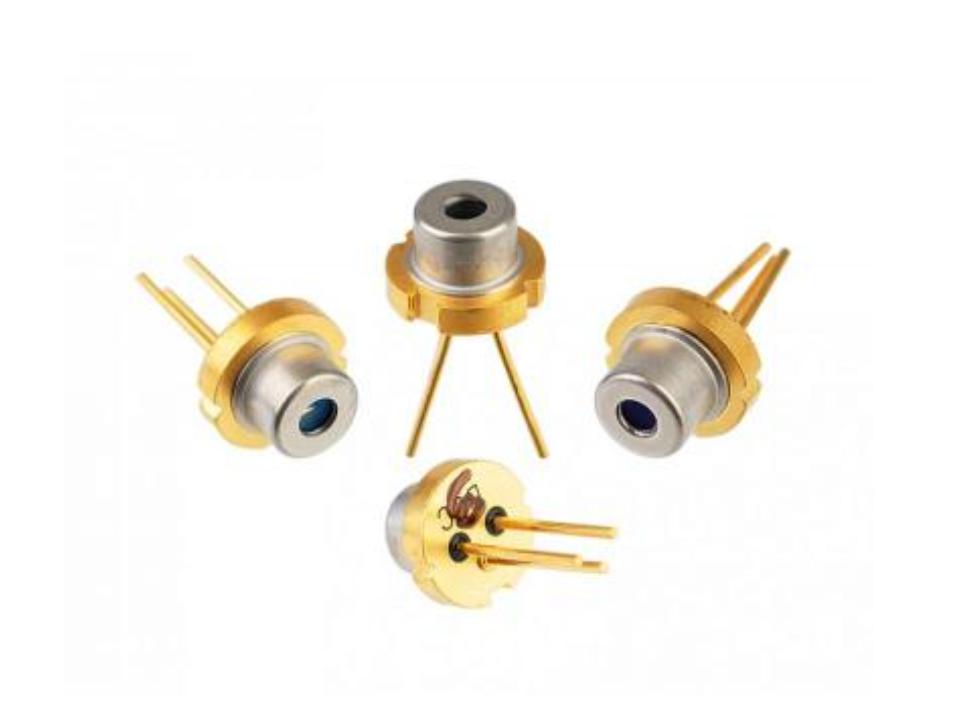

635nm / 5mW　VPS Laser Diode [TO-can]

635nm / 5mW　VPS Laser Diode [TO-can]
635nm / 5mW　VPS Laser Diode [TO-can]
635nm / 5mW　VPS Laser Diode [TO-can]
635nm / 5mW　VPS Laser Diode [TO-can]

VPSL-0635-005-x-9-B データシート.pdf

波長: 625nm-640nm
出力: -5mW
電流: 55mA-85mA
電圧: -2.7V
パッケージ: TO-can
形状: 円
拡がり角: 5, 8, 11 deg

< Description >
The VPSL-0635-005-x-9-B Laser Device is a 0.63 µm band, A1GaInP, index-guided, multiquantum well (MQW) laser diode with an integrated, internal, beam correcting optic. It is suitable as a light source for bar code readers, laser levelers and various other types of optical equipment. Hermetic sealing of the package assures high reliability.

< Features >
Visible light output
5mW CW optical power
Built-in monitor photodiode.
Circular, diverging beam, NA approximately 0.11
Diffraction limited wavefront, aberration equal or better than λ/4 peak to valley
Standard 9mm form factor
