型番：　メーカー：World Star Tech　商品コード：L001982

1064nm, 1Watt FBG Laser Diode

波長: 1064nm-1064nm
出力: 1W-1W
パッケージ: Butterfly
テクノロジー: grating stabilized

1064nm Key Features:
- High pulse output power, up to 1W peak
- Wavelength stabilized at 1064nm
- Broad bandwidth emission of typ. 0.9nm
- Short pulse operation of 5ns-500ns

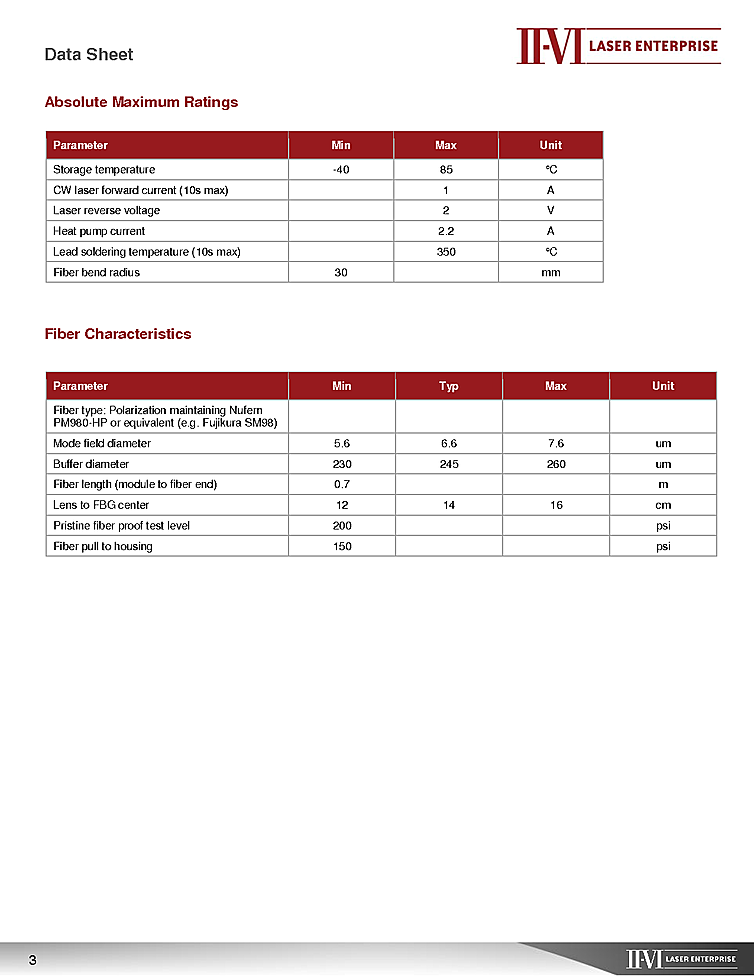

- Polarization maintaining singlemode optical fiber
- Internal thermoelectric heat pump and monitor diode

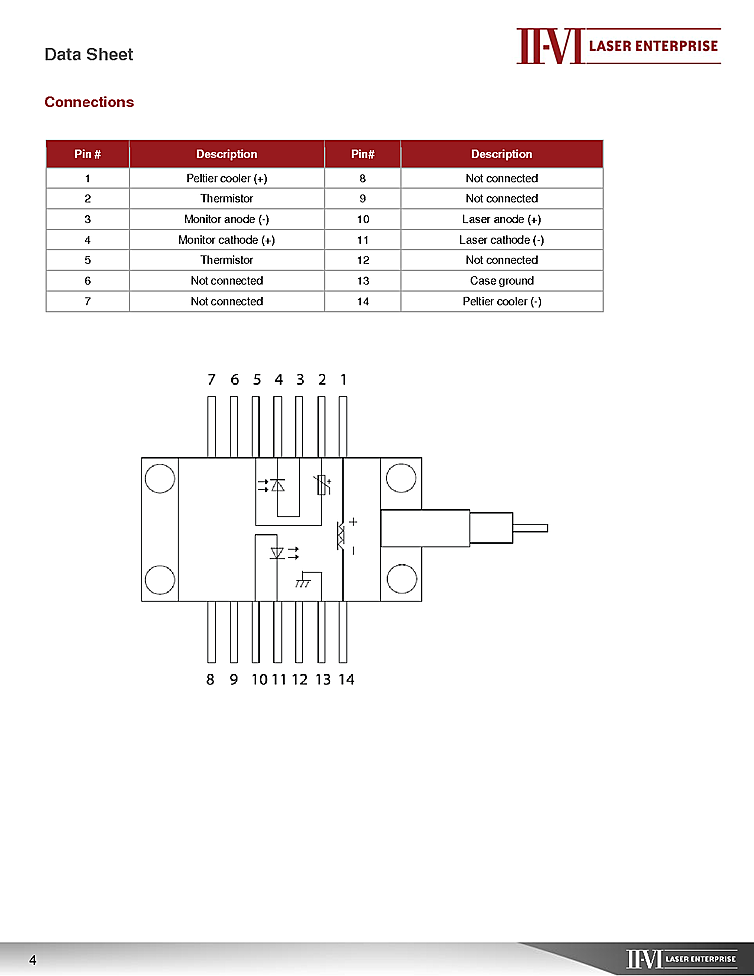

- Hermetically sealed 14-pin butterfly package

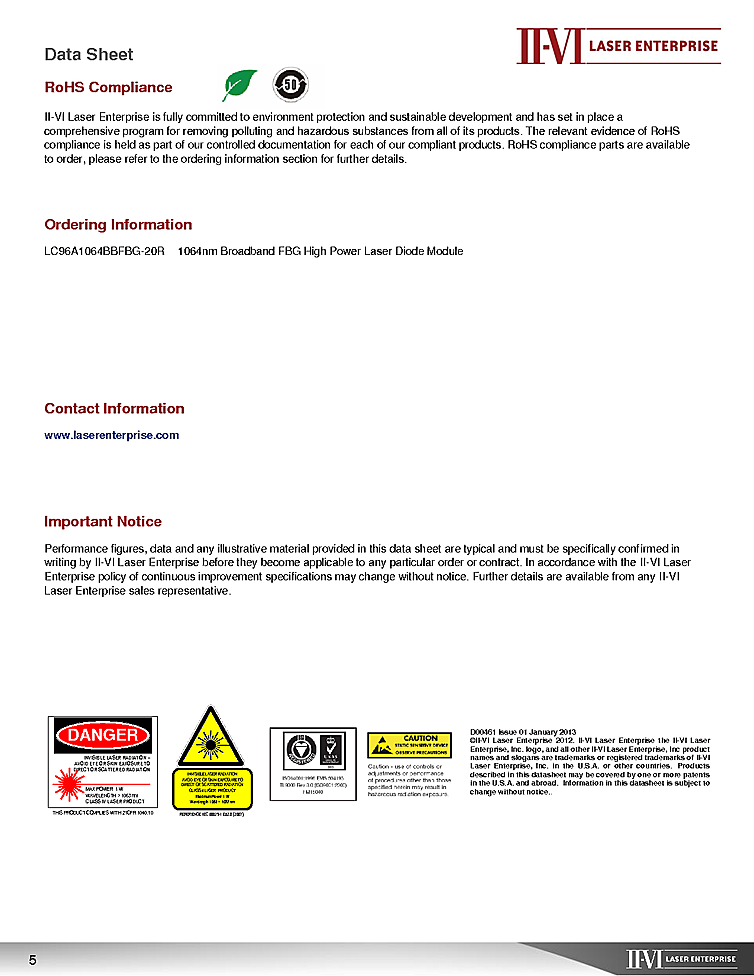

- RoHS compliant

Applications:
- Fiber lasers
- Sensing
These II-VI Laser Enterprise wavelength stabilized high power single mode laser modules are offered by World Start Tech, an authorized distributor for II-VI.
These devices have been designed as a light source for pulsed fiber laser applications. They deliver high peak output powers that are very stable with both time and temperature. These 1064nm diode lasers offer a broad bandwidth grating located in the polarization maintaining optical fiber close to the package which allows for short pulse operation.

For more information, please contact:
WORLD STAR TECH
185 Konrad Crescent Markham ON
L3R 8T9 Canada
