型番：　メーカー：Quantel (LD)　商品コード：L001186

915nm QCW Stacked Laser Array

915nm QCW Stacked Laser Array
915nm QCW Stacked Laser Array
915nm QCW Stacked Laser Array
915nm QCW Stacked Laser Array
915nm QCW Stacked Laser Array
915nm QCW Stacked Laser Array

波長: 915nm-915nm
出力: 500W-500W
パッケージ: stacked array
テクノロジー: QCW high power stack

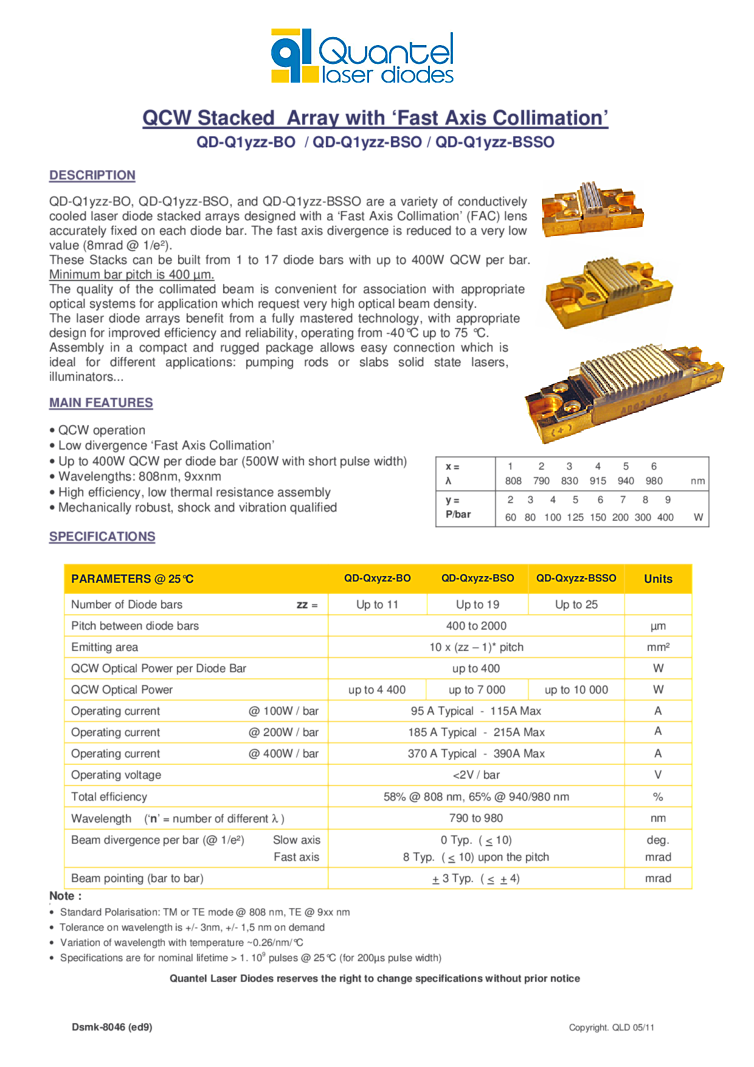

915nm QCW Stacked Array with Fast Axis Collimation from Quantel Laser.

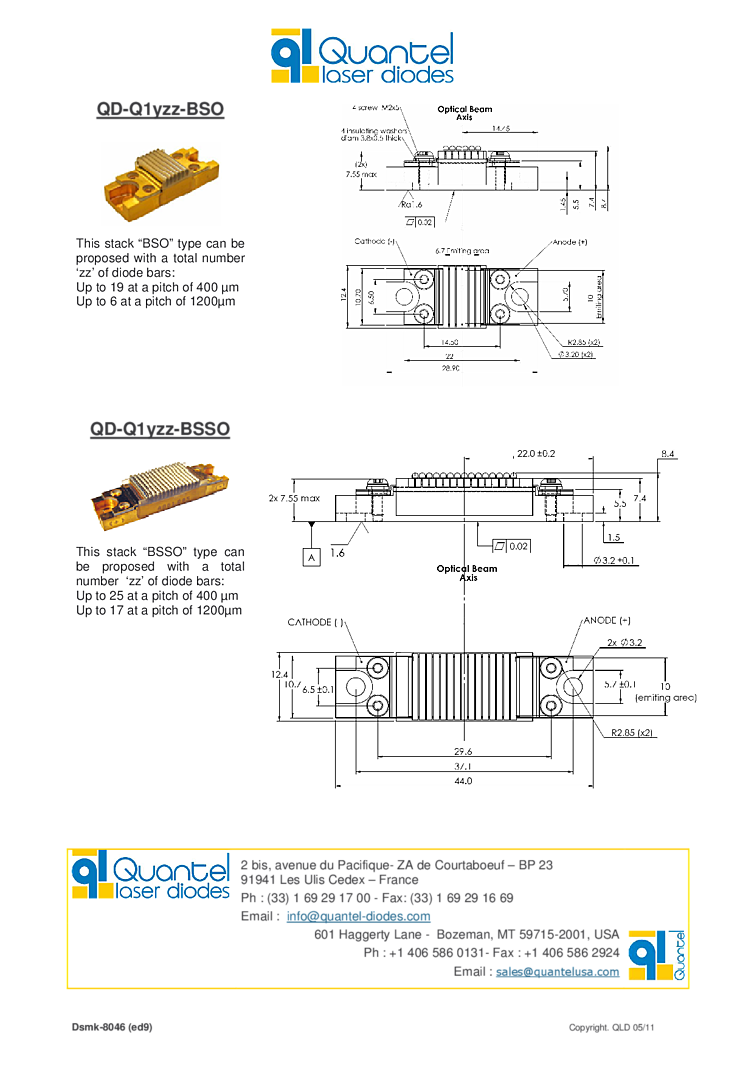

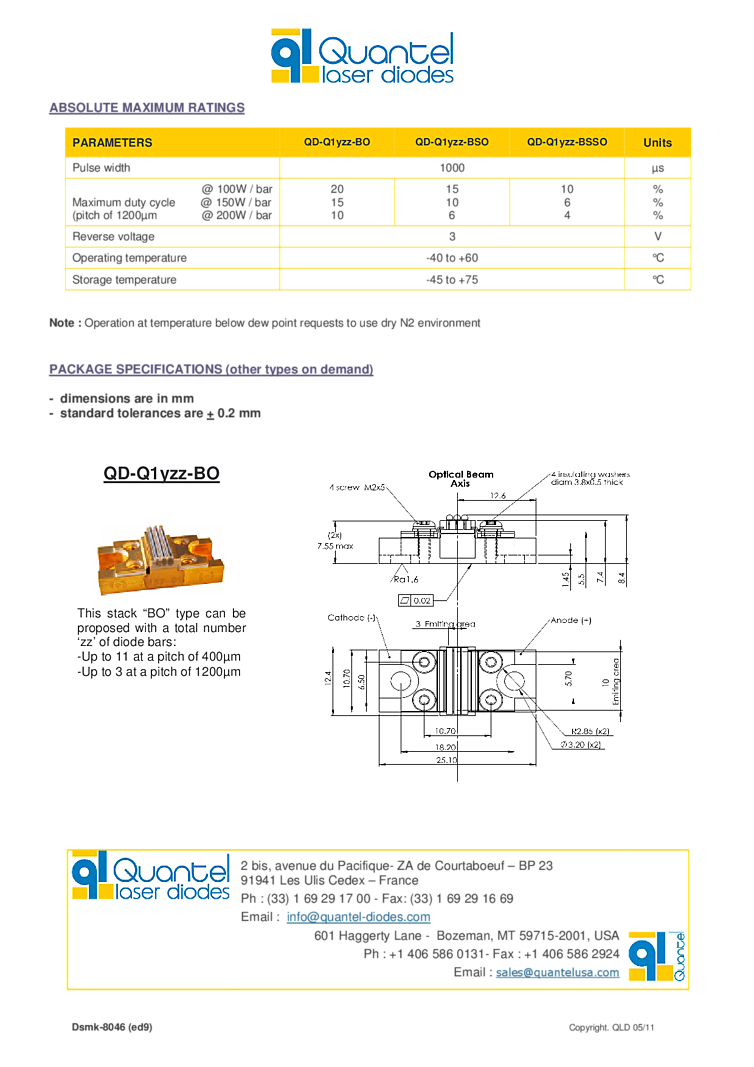

QD-Q1yzz-BO, QD-Q1yzz-BSO, and QD-Q1yzz-BSSO are a variety of conductively cooled laser diode stacked arrays designed with a ‘Fast Axis Collimation’ (FAC) lens accurately fixed on each diode bar. The fast axis divergence is reduced to a very low value (8mrad @ 1/e²). These Stacks can be built from 1 to 17 diode bars with up to 400W QCW per bar. Minimum bar pitch is 400 μm. The quality of the collimated beam is convenient for association with appropriate optical systems for application which request very high optical beam density. The laser diode arrays benefit from a fully mastered technology, with appropriate design for improved efficiency and reliability, operating from -40°C up to 75 °C. Assembly in a compact and rugged package allows easy connection which is ideal for different applications: pumping rods or slabs solid state lasers, illuminators...

MAIN FEATURES:
- QCW operation
- Low divergence Fast Axis Collimation
- Up to 400W QCW per diode bar (500W with short pulse width)
- Wavelengths: 808nm, 9xxnm
- High efficiency, low thermal resistance assembly
- Mechanically robust, shock and vibration qualified
