型番：LDX808-80　メーカー：OsTech electro optical instruments 　商品コード：L000854

Calibrated Turn-Key System with Integrated 808nm, 80 Watt (CW) Coherent Laser Diode

Calibrated Turn-Key System with Integrated 808nm, 80 Watt (CW) Coherent Laser Diode
Calibrated Turn-Key System with Integrated 808nm, 80 Watt (CW) Coherent Laser Diode
Calibrated Turn-Key System with Integrated 808nm, 80 Watt (CW) Coherent Laser Diode
Calibrated Turn-Key System with Integrated 808nm, 80 Watt (CW) Coherent Laser Diode
Calibrated Turn-Key System with Integrated 808nm, 80 Watt (CW) Coherent Laser Diode
Calibrated Turn-Key System with Integrated 808nm, 80 Watt (CW) Coherent Laser Diode
Calibrated Turn-Key System with Integrated 808nm, 80 Watt (CW) Coherent Laser Diode
Calibrated Turn-Key System with Integrated 808nm, 80 Watt (CW) Coherent Laser Diode
Calibrated Turn-Key System with Integrated 808nm, 80 Watt (CW) Coherent Laser Diode
Calibrated Turn-Key System with Integrated 808nm, 80 Watt (CW) Coherent Laser Diode

メーカー希望小売価格: $5,495 波長: 808nm-808nm
出力: 80W-80W
パッケージ: Turn-Key Source and Control System
テクノロジー: Integrated COHERENT Lasers CCP Bar

Product Overview:

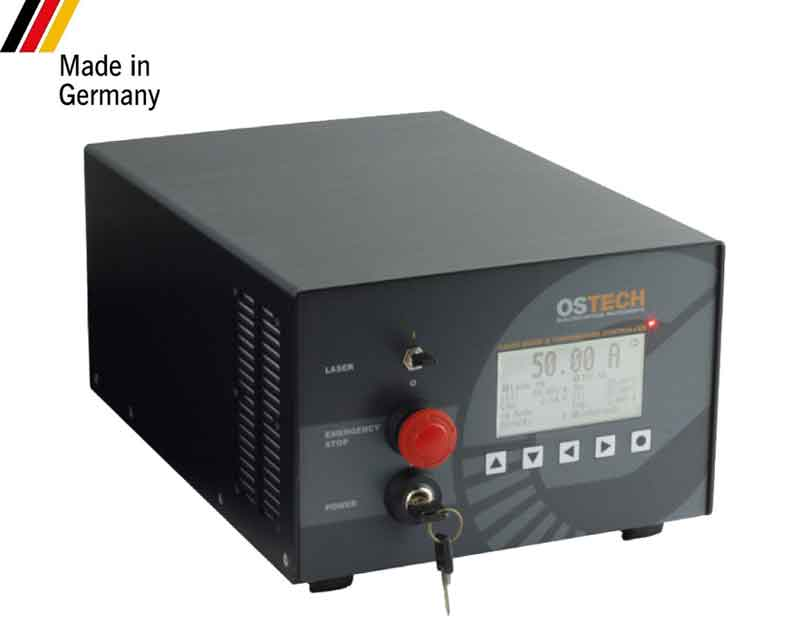

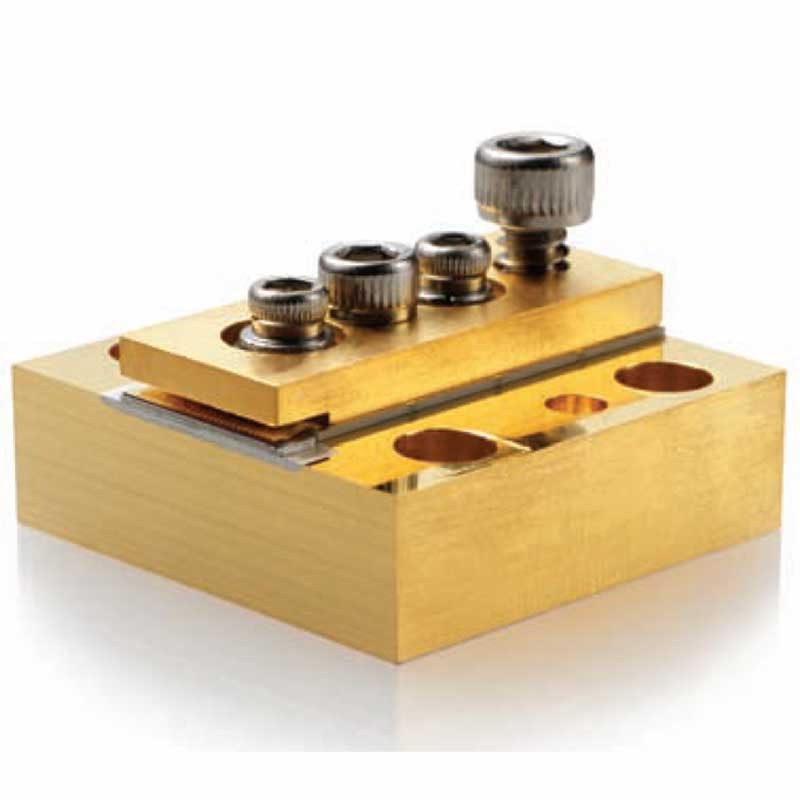

These 808nm, 80 Watt source and control systems offer a complete plug and play solution for R&D laboratory applications. The LDX808-80 is a calibrated turn-key solution which includes a Conduction Cooled Bar. These Bars feature unique AAA epitaxial technology for the highest possible reliability and lifetime. The system is comprised of an 80 Watt 28% fill factor COHERENT 808nm CCP module, an OsTech 100 Amp current source with 216 Watt temperature controller, and a high power cooling module. The cooling module comes pre-configured for the COHERENT module. The controller is optimized for high power modules and is pre-tested and calibrated with the laser module prior to shipment.

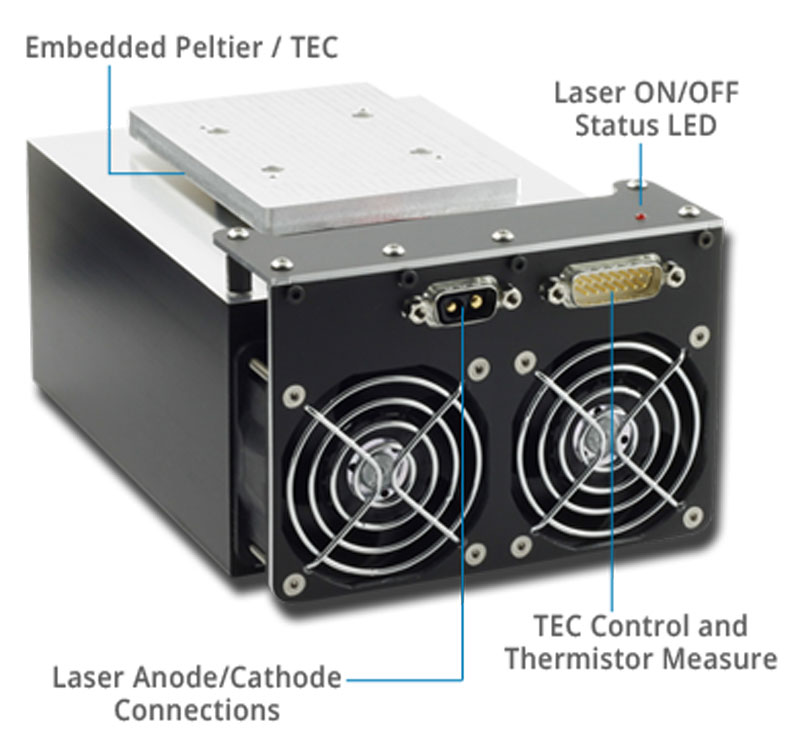

The laser diode heat sink is a high performance mounting solution designed for high power laser diode modules. It is a convenient and high performance solution for cooling and temperature stabilization of laser diodes in laboratory environments.
