型番：　メーカー：Denselight　商品コード：L001786

1653nm Narrow Linewidth Laser Diode

1653nm Narrow Linewidth Laser Diode
1653nm Narrow Linewidth Laser Diode
1653nm Narrow Linewidth Laser Diode
1653nm Narrow Linewidth Laser Diode
1653nm Narrow Linewidth Laser Diode
1653nm Narrow Linewidth Laser Diode
1653nm Narrow Linewidth Laser Diode
1653nm Narrow Linewidth Laser Diode

波長: 1653nm-1653nm
出力: 8mW-8mW
スペクトル幅: < 500kHz
パッケージ: butterfly
テクノロジー: narrow linewidth

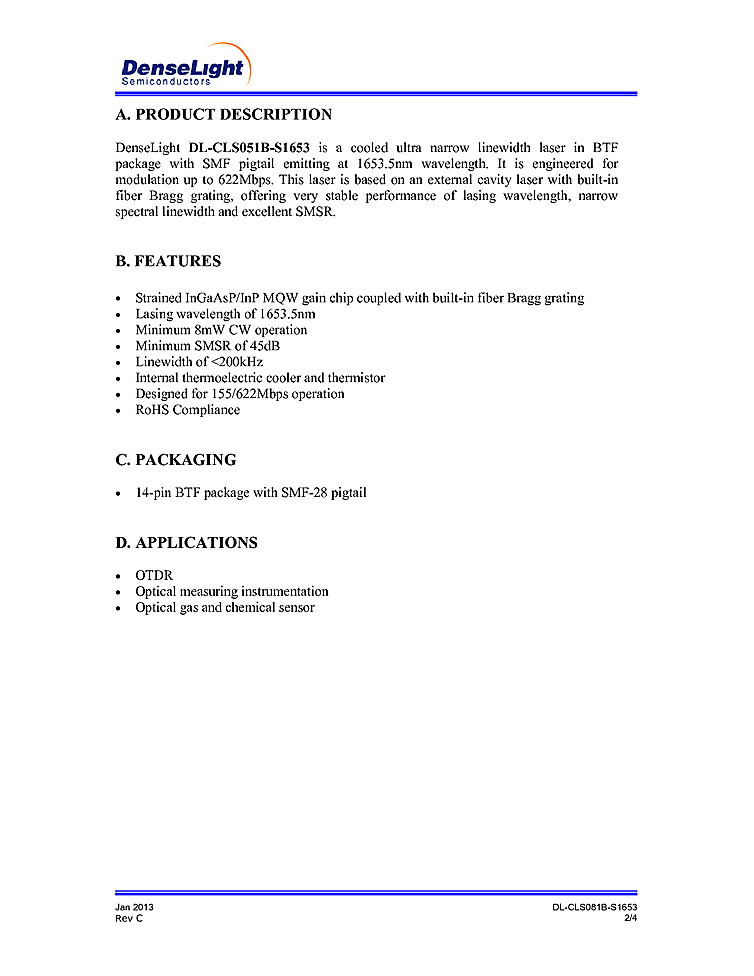

1653nm The DL-CLS051B-S1653 from Denselight is a cooled ultra narrow linewidth laser in a butterfly package with SMF pigtail emitting at 1653.5nm. It is engineered for modulation up to 622Mbps. This laser is based on an external cavity laser with built-in fiber Bragg grating, offering very stable performance of lasing wavelength, narrow spectral linewidth and excellent SMSR.


FEATURES:
• Strained InGaAsP/InP gain chip, built-in fiber Bragg grating
• Lasing wavelength of 1653.5nm
• Minimum 8mW CW operation
• Minimum SMSR of 45dB
• Linewidth < 200kHz

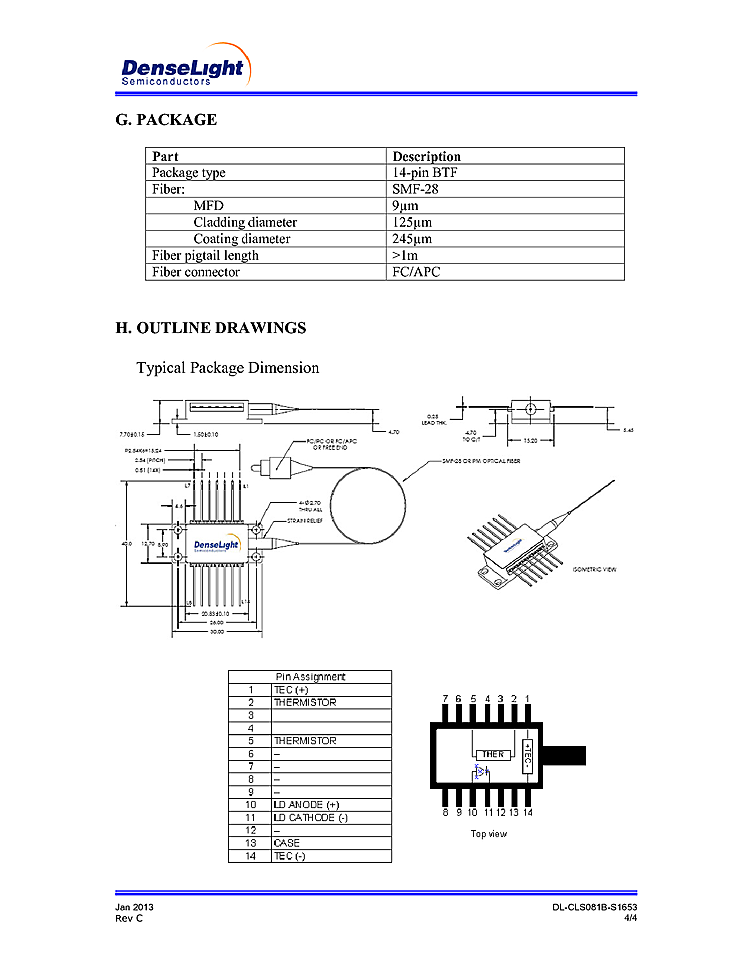

• 14-pin BTF package with SMF-28 pigtail
