型番：PLD10000 / 12500　メーカー：　商品コード：L002848

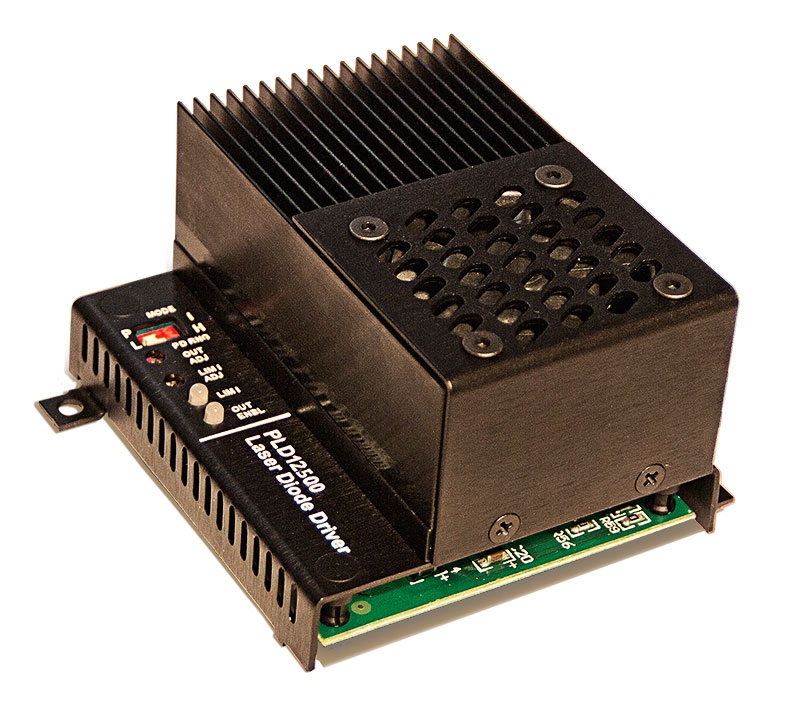

Precision Laser Diode Current Source Module: 10 Amp and 12.5 Amp Current Ranges

メーカー希望小売価格: $429 / $495 電流: 10A-10A

Product Overview:
These high performance, low cost laser diode current power supplies can be used as a low cost laboratory laser diode current source for high power devices, or as an OEM controller for product integration. The PLD series laser diode driver module delivers precision, stability and laser diode protection at a very affordable price. These current sources are well suited for controlling medium to high power multi-mode pump lasers and high power 1.31 to 1.55 micron devices. Slow start ramping circuitry protects your laser diode from current / voltage overshoots, and user set current limits offer additional protection. The unit is a DIP PCB mounted package. The compact heatsink and fan are integrated to optimize thermal performance with the smallest possible footprint. The unit supports both ACC (constant current) or APC (monitor PD feedback controlled) modes of operation.

見積りBOXへ入れる欲しい物リストに登録

価格	地域	代理店
代理店が登録されていません

Precision Laser Diode Current Source Module: 10 Amp and 12.5 Amp Current Ranges
