型番：ATLEX-S 　メーカー：ATL Lasertechnik GmbH　商品コード：L003812

UV-Light Source for Low/Mid Rrange Duty Cycle S Applications: ATLEX-S

UV-Light Source for Low/Mid Rrange Duty Cycle S Applications: ATLEX-S
UV-Light Source for Low/Mid Rrange Duty Cycle S Applications: ATLEX-S
UV-Light Source for Low/Mid Rrange Duty Cycle S Applications: ATLEX-S
UV-Light Source for Low/Mid Rrange Duty Cycle S Applications: ATLEX-S
UV-Light Source for Low/Mid Rrange Duty Cycle S Applications: ATLEX-S
UV-Light Source for Low/Mid Rrange Duty Cycle S Applications: ATLEX-S
UV-Light Source for Low/Mid Rrange Duty Cycle S Applications: ATLEX-S
UV-Light Source for Low/Mid Rrange Duty Cycle S Applications: ATLEX-S
UV-Light Source for Low/Mid Rrange Duty Cycle S Applications: ATLEX-S
UV-Light Source for Low/Mid Rrange Duty Cycle S Applications: ATLEX-S
UV-Light Source for Low/Mid Rrange Duty Cycle S Applications: ATLEX-S
UV-Light Source for Low/Mid Rrange Duty Cycle S Applications: ATLEX-S
UV-Light Source for Low/Mid Rrange Duty Cycle S Applications: ATLEX-S
UV-Light Source for Low/Mid Rrange Duty Cycle S Applications: ATLEX-S
UV-Light Source for Low/Mid Rrange Duty Cycle S Applications: ATLEX-S
UV-Light Source for Low/Mid Rrange Duty Cycle S Applications: ATLEX-S
UV-Light Source for Low/Mid Rrange Duty Cycle S Applications: ATLEX-S
UV-Light Source for Low/Mid Rrange Duty Cycle S Applications: ATLEX-S

波長: 193nm-248nm
出力: 2.4W-6W
パルスの最大繰返し: < 100Hz - 1000Hz
エネルギー: 10mJ-15mJ
パルス幅: 5 – 8 ns
ビーム径: (V x H) 4 x 6 mm
拡がり角: (V x H) 1 x 2 mrad
エネルギー安定性: < 3 %
重さ: 65 kg
冷却方法: Air

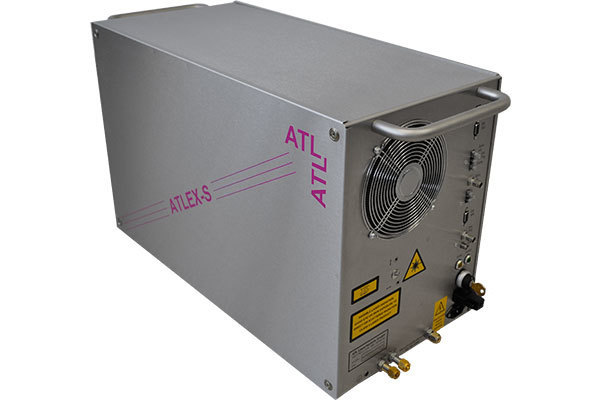

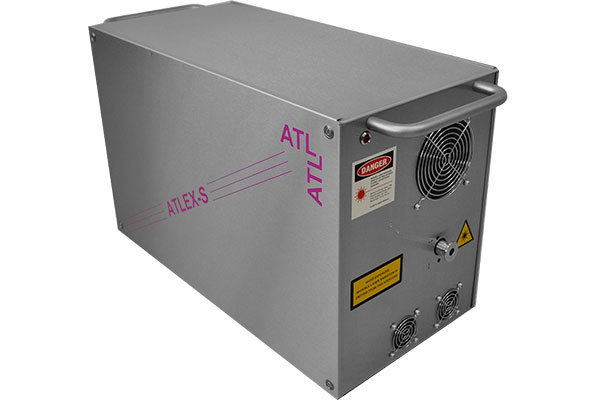

ATLEX-S-Series-Laser is a very compact UV-light source designed for low- and mid-range duty cycle S Applications.


【Main features】

Ultra compact size
Soft corona preionization
HV-solid state pulser
Laser head volume < 3l
TMC (Total-Metal-Ceramic) Vessel
Integrated vacuum pump & halogen filter
Totally air-cooled, active thermal management

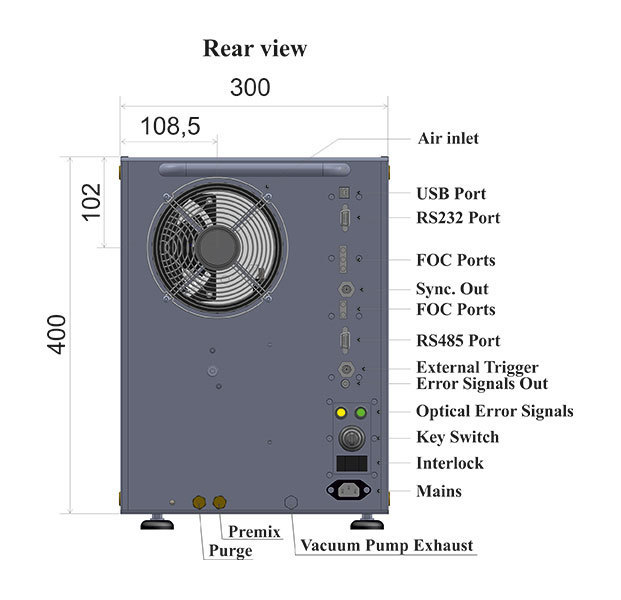

RS-485, RS232, USB and fiber optic Interface for system integration
Flushable optics holder
Energy stabilization mode
Dynamic fan speed controls
Meets European CE-standard
RoHS compliance

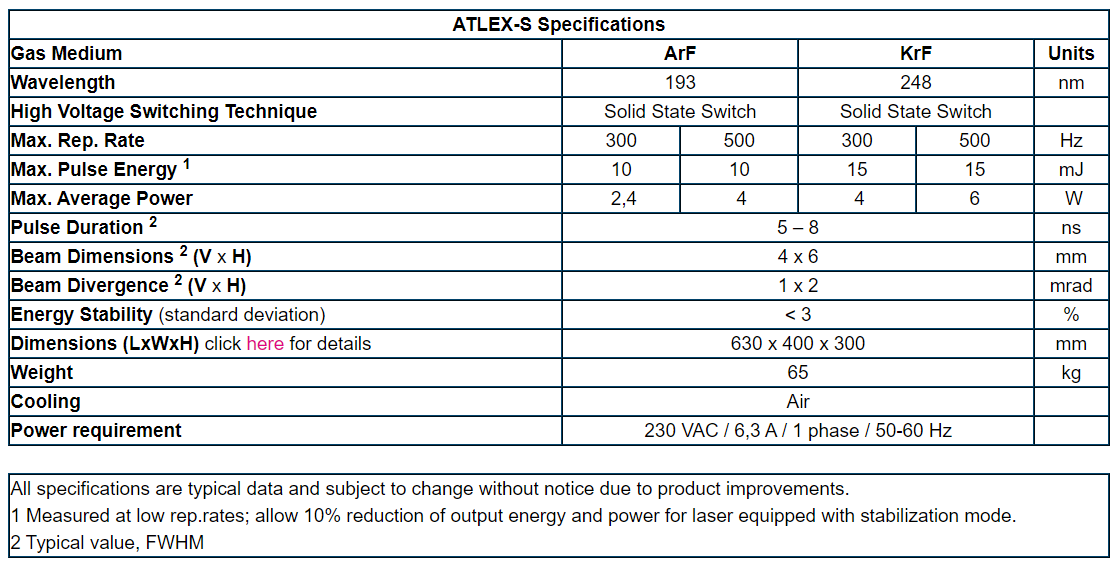

【Specifications】

Gas Medium: ArF, KrF
High Voltage Switching Technique: Solid State Switch
Max. Rep. Rate: 300-500Hz
Power requirement: 230 VAC / 6,3 A / 1 phase / 50-60 Hz


【Applications】

Medicine (refractive surgery)
Spectroscopy
Micromachining
Testing and measurement
