型番：INNLD1064　メーカー：Innolume GmbH　商品コード：L001562

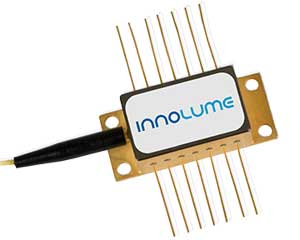

1064nm Laser Diode with >1.2 Watts of Peak Pulsed Output Power

1064nm Laser Diode with >1.2 Watts of Peak Pulsed Output Power
1064nm Laser Diode with >1.2 Watts of Peak Pulsed Output Power
1064nm Laser Diode with >1.2 Watts of Peak Pulsed Output Power
1064nm Laser Diode with >1.2 Watts of Peak Pulsed Output Power
1064nm Laser Diode with >1.2 Watts of Peak Pulsed Output Power
1064nm Laser Diode with >1.2 Watts of Peak Pulsed Output Power
1064nm Laser Diode with >1.2 Watts of Peak Pulsed Output Power
1064nm Laser Diode with >1.2 Watts of Peak Pulsed Output Power

メーカー希望小売価格: Request Price 波長: 1064nm-1064nm
出力: 1200mW-1200mW
パッケージ: butterfly
テクノロジー: Pulsed or CW

Product Overview:

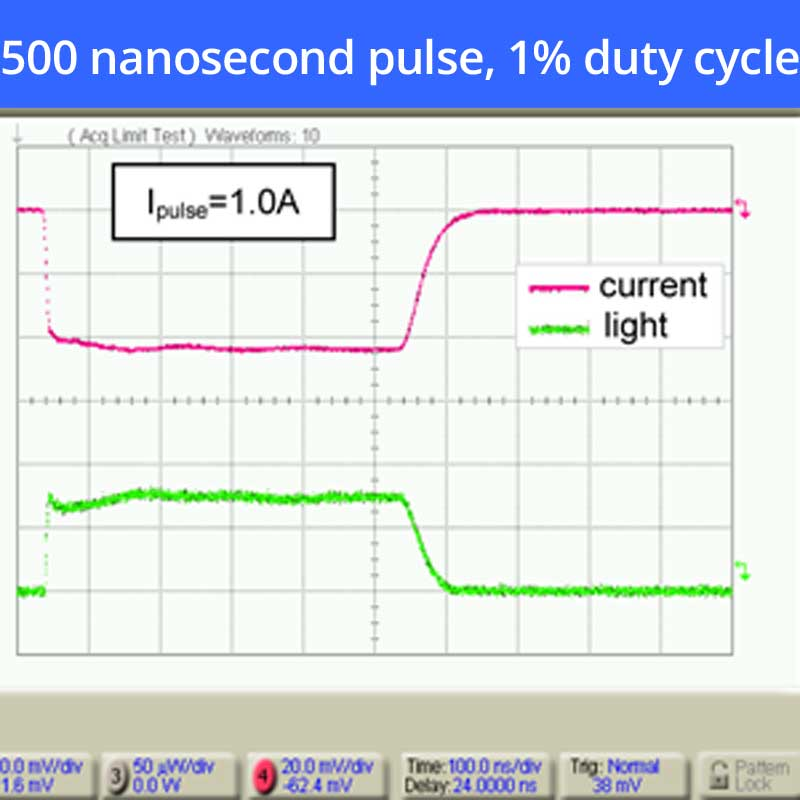

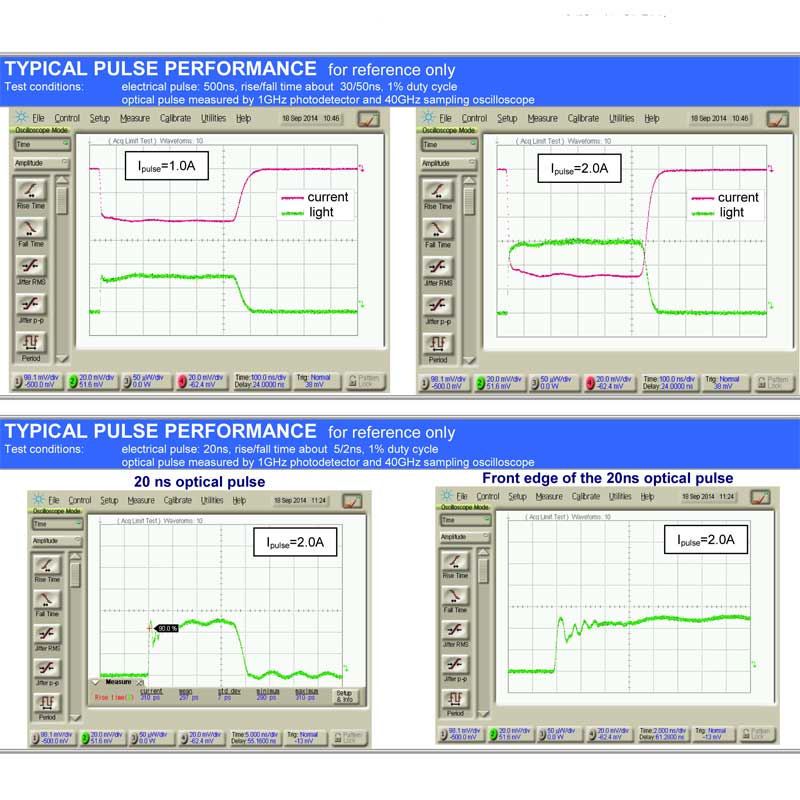

These 1064nm laser diodes offer high peak power up to 1200mW and deliver a very low noise optical pulse. These sources are ideal for seeding fiber lasers as well as multiple instrumentation and measurement equipment applications.

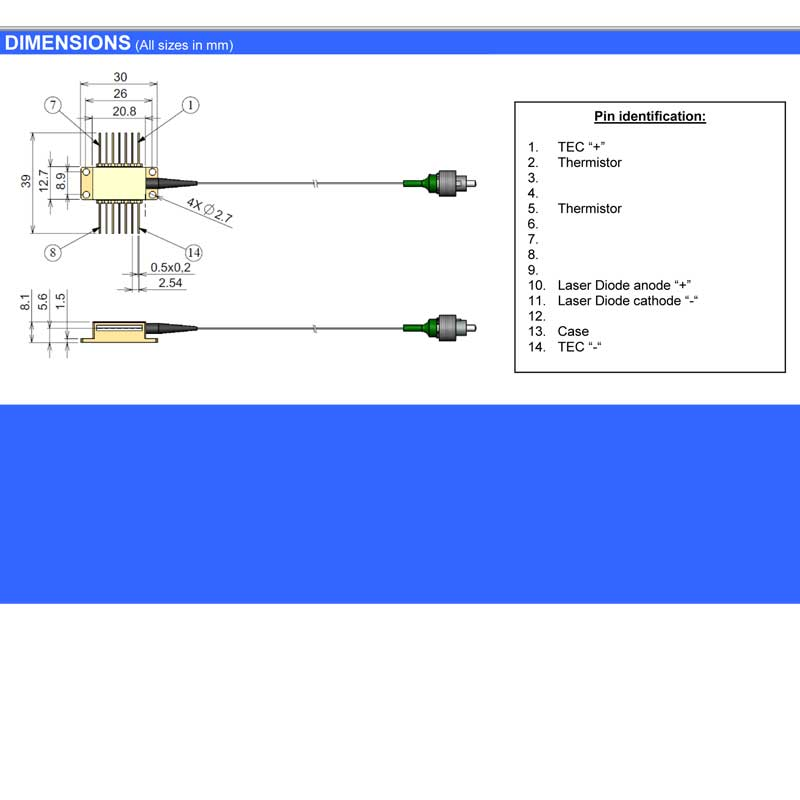

This diode laser series offers wavelengths from 1030nm-1090nm is available. A proprietary mirror coating technology enables long life-time and high reliability performance. A PM fiber is available and these devices are RoHS compliant. They are offered in multiple packaging options, including butterfly with integrated TEC cooler and optional photodiode. Customers can choose between PM980 or HI1060 fiber with a standard FC/APC connector. For other packing or fiber pigtail options, please contact us for more information.

見積りBOXへ入れる 欲しい物リストに登録
メーカーWebサイトへ
価格 地域 代理店
要問い合わせ 東京都 セブンシックス株式会社
