型番： メーカー：IPG Photonics 商品コード：L001407
915 NM, 980 NM Laser Diode, 100W
波長: 915nm-980nm
出力: 100W-100W
パッケージ: fiber coupled module
テクノロジー: high power array, semiconductor laser

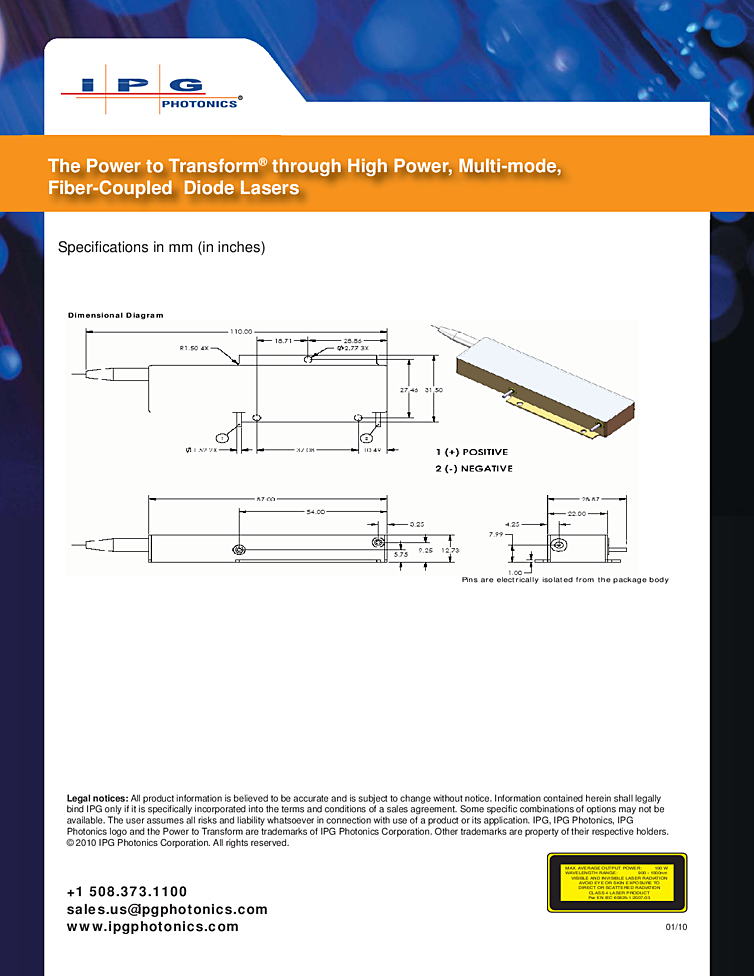

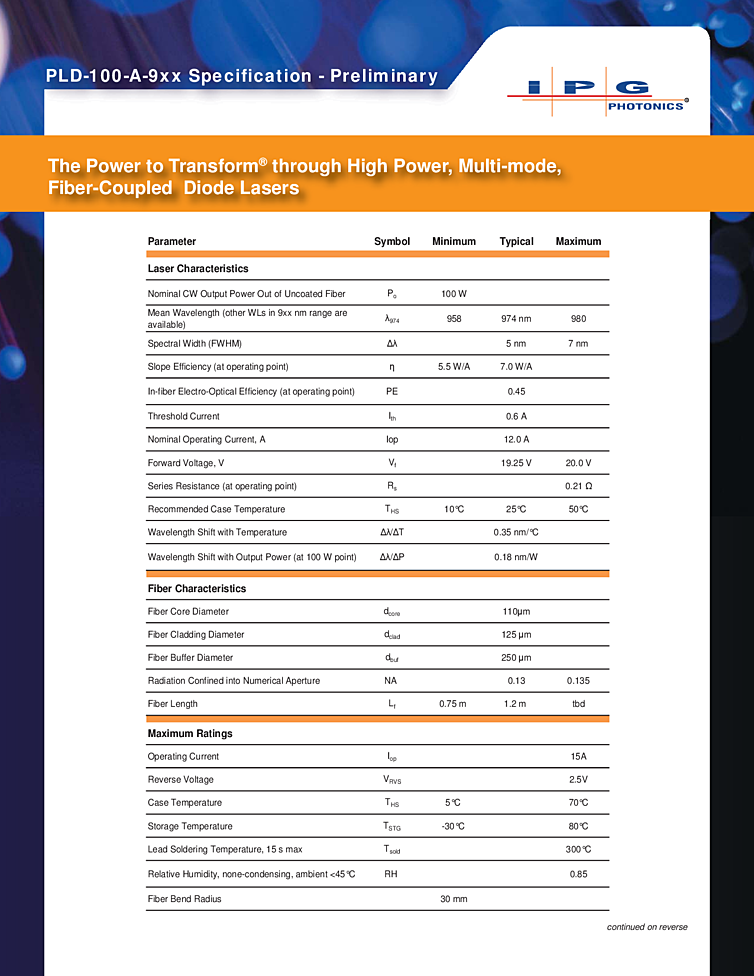

915nm, 980nm laser diodes from IPG are high power modules. The data sheet is a preliminary data sheet for high power multi-emitter, fiber coupled pump laser modules. These 100W lasers are offered at 980 nm and at 915 nm. Key specifications in the attached data sheet include a threshold current specified at 600mA and a nominal operating current specified at 12.0 Amps. Forward voltage for these IPG laser diode devices is typcially 19.25 Volts. Series resistance for these multi-emitter diode lasers (at operating point) is specified as 0.21 ohms.
IPG Photonics Corporation
50 Old Webster Road
Oxford, MA 01540 USA
www.ipgphotonics.com
| 価格 | 地域 | 代理店 | |
|---|---|---|---|
| 要問い合わせ | IPGフォトニクス ジャパン株式会社 | ||
