型番： メーカー：QPC Lasers 商品コード：L001390
DFB Laser | 1064nm
波長: 1064nm-1064nm
出力: 60mW-60mW
パッケージ: butterfly
テクノロジー: DFB Laser

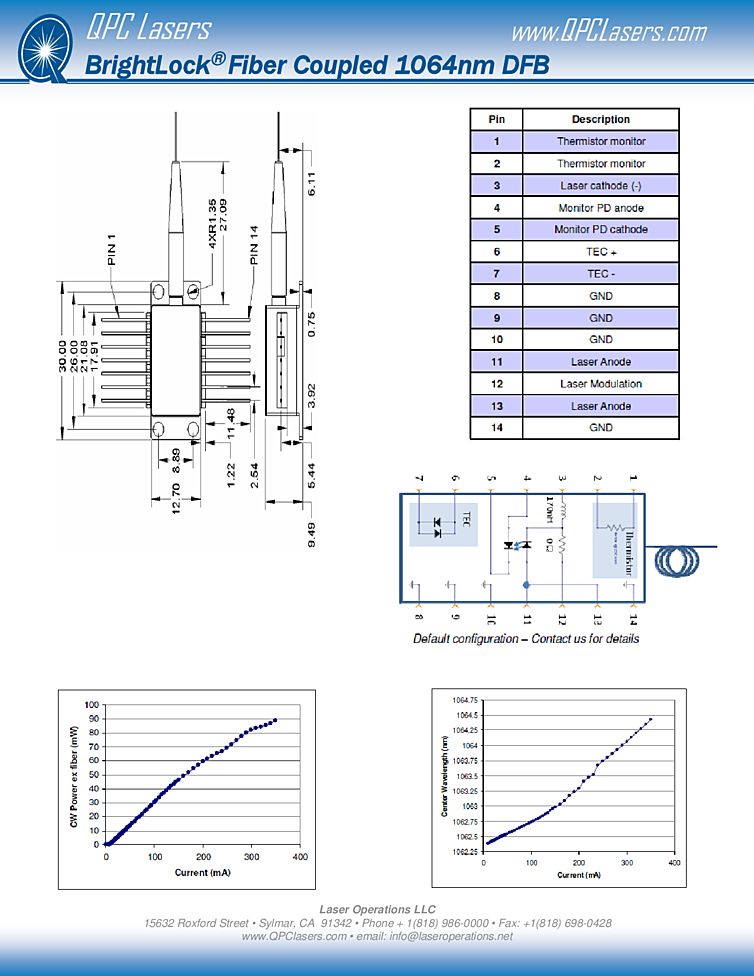

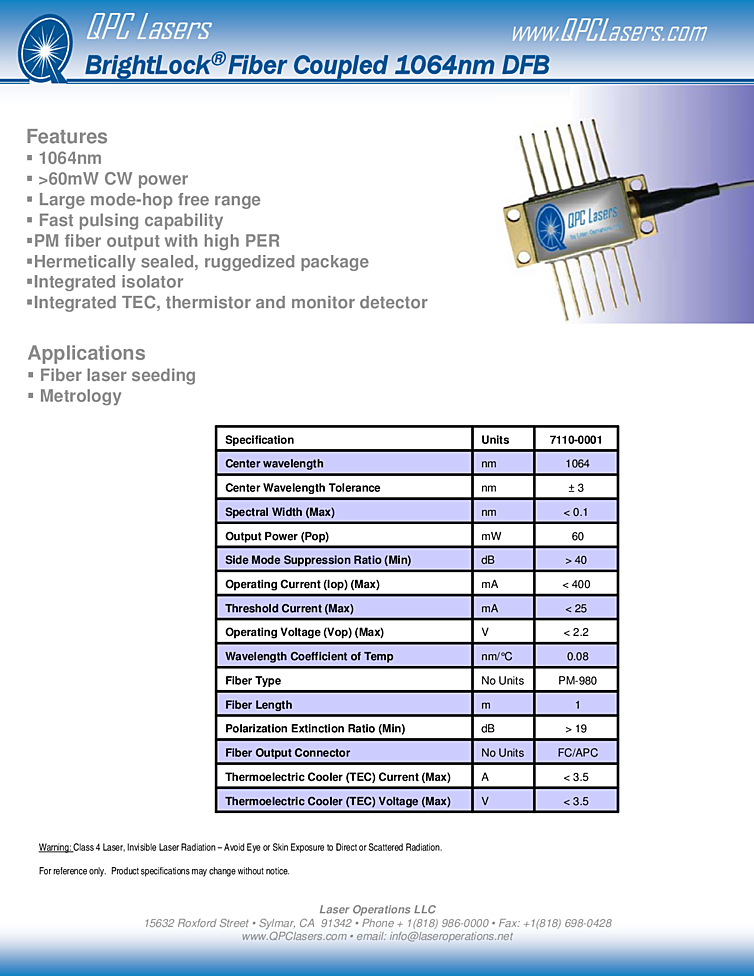

1064nm The data sheet attached for the QPC DFB laser describes a 1064nm device with typical operation current of < 400mA and a typical threshold current of < 25 mA. Key features include > 60mW CW optical output power and a large mode-hop free range. Also, this DFB laser features fast pulsing capability and PM fiber output with high PER. The data sheet references a hermetically sealed, ruggedized package with a an integrated isolator, integrated TEC, thermistor and monitor PD. Applications described in the data sheet include fiber laser seeding and metrology. Device by QPC Laser.
| 価格 | 地域 | 代理店 | |
|---|---|---|---|
|
代理店が登録されていません |
|||
