型番：　メーカー：QD Laser　商品コード：L001260

1064nm Laser Diode, 100mW

1064nm Laser Diode, 100mW
1064nm Laser Diode, 100mW
1064nm Laser Diode, 100mW
1064nm Laser Diode, 100mW
1064nm Laser Diode, 100mW
1064nm Laser Diode, 100mW

波長: 1064nm-1064nm
出力: 100mW-100mW
パッケージ: butterfly
テクノロジー: DFB Laser

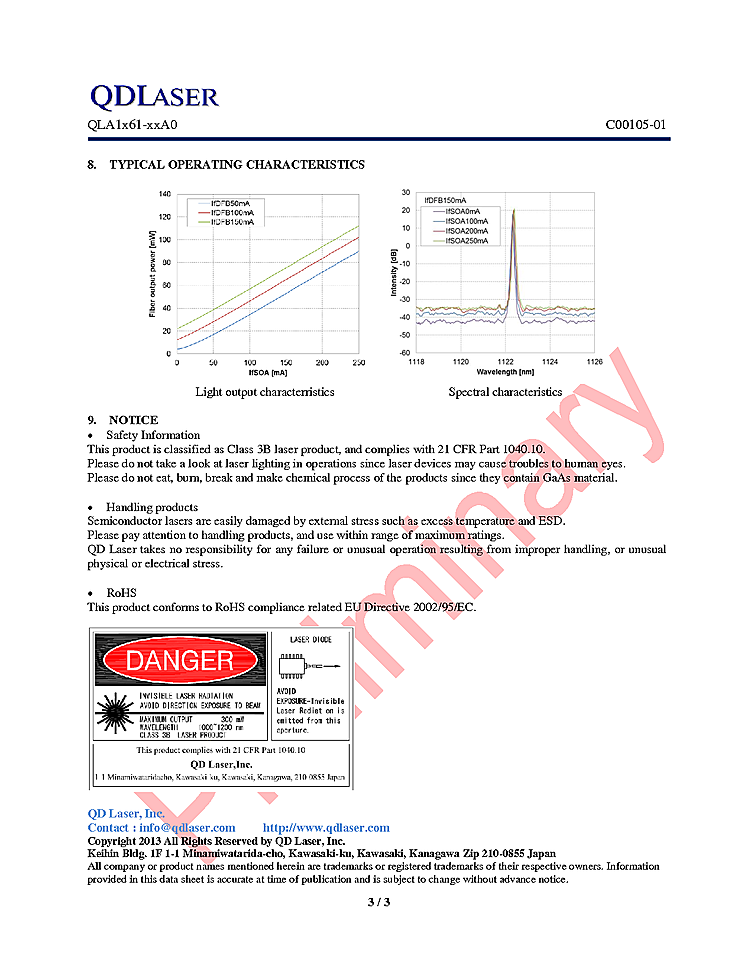

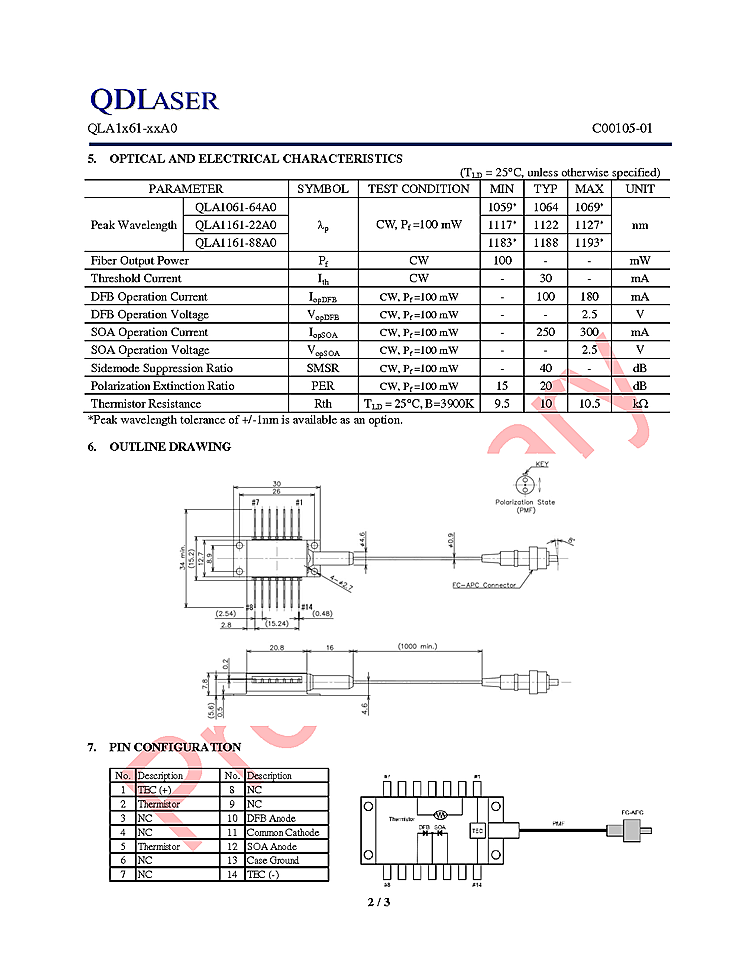

1064nm laser diode from QDLaser offers 100mW of optical output power. This DFB/SOA device, the QLA1x61-xxA0, is a distributed feedback (DFB) laser with integrated semiconductor optical amplifier (SOA) for use in seeder and sensing applications. The laser is assembled into a 14-pin butterfly package with an optical isolator and a thermo-electric cooler.

FEATURES:
- High fiber output power >100mW
- Single longitudinal mode operation
- Fiber-pigtailed 14-pin butterfly package with a TEC
- Optical isolator
- Polarization maintaining fiber integration

APPLICATION:
- Seeder
- Sensing
- Wavelength Conversion

見積りBOXへ入れる 欲しい物リストに登録
メーカーWebサイトへ
価格 地域 代理店
要問い合わせ 京都府 株式会社光響
