型番:LWIR DFB 7.43 µm QCL HHL Pkg メーカー:Adtech Optics, INC. 商品コード:L003242

7.43μm / 180.8mW LWIR DFB QCL HHL Pkg

波長: 7.43μm-
出力: -180.8mW
電流: -0.65A
電圧: -10.2V
パッケージ: HIGH HEAT LOAD (HHL) PACKAGE
テクノロジー: LWIR DFB QCL

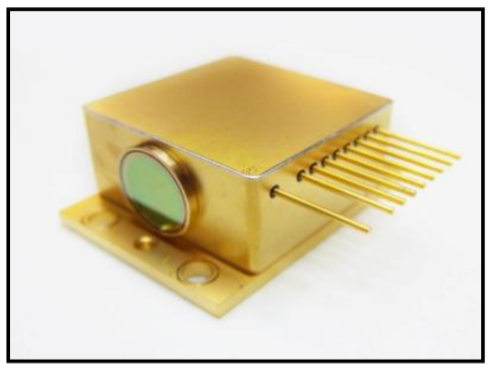

HIGH HEAT LOAD (HHL) PACKAGE
OVERVIEW
・Thermo-electrically cooled. External heat sink still required.
・Sealed in a nitrogen-purged atmosphere.
・Package dimensions (approx): 1.75 x 1.25 x 0.72 in (excluding pins).

(LASER SPECIFICATIONS)
Process: DFB
Oper. Temperature: 15 – 45 °C
Facet Coating: Front AR / Back HR

(ELECTRO–OPTICAL CHARACTERIZATION)
Driving Conditions;
Operation Mode: CW
Temperature: 15 °C

Electrical;
Thresh. Current: 0.27 A
Thresh. Voltage: 8.3 V
Laser Efficiency: 2.7%

Optical;
Center Wavelength: 7.43 µm

(SPECTRAL CHARACTERIZATION AND BEAM QUALITY)
Driving Conditions;
Operation Mode: CW

Wavelength Tuning;
Temperature: 0.58 nm/K
Current: 34.4 nm/A

SMSR: 30 dB

Beam Profile;
Full Beam Waist: 4.36 mm
M2: 1.31
