型番： メーカー：QD Laser 商品コード：L001226
1064nm Laser Diode, DFB, 400mW
波長: 1064nm-1064nm
出力: 400mW-400mW
パッケージ: Butterfly
テクノロジー: DFB Laser
1064nm laser diode from QDLaser is a high power pulsed 1064nm distributed feedback (DFB) laser for use in seeder for fiber lasers and sensing applications. The laser is assembled into a 14-pin butterfly package with an optical isolator, a monitor PD and a thermo-electric cooler.
FEATURES:
- Single longitudinal mode operation
- High peak output power of 400mW pulsed operation
- 1-10nsec pulse width available

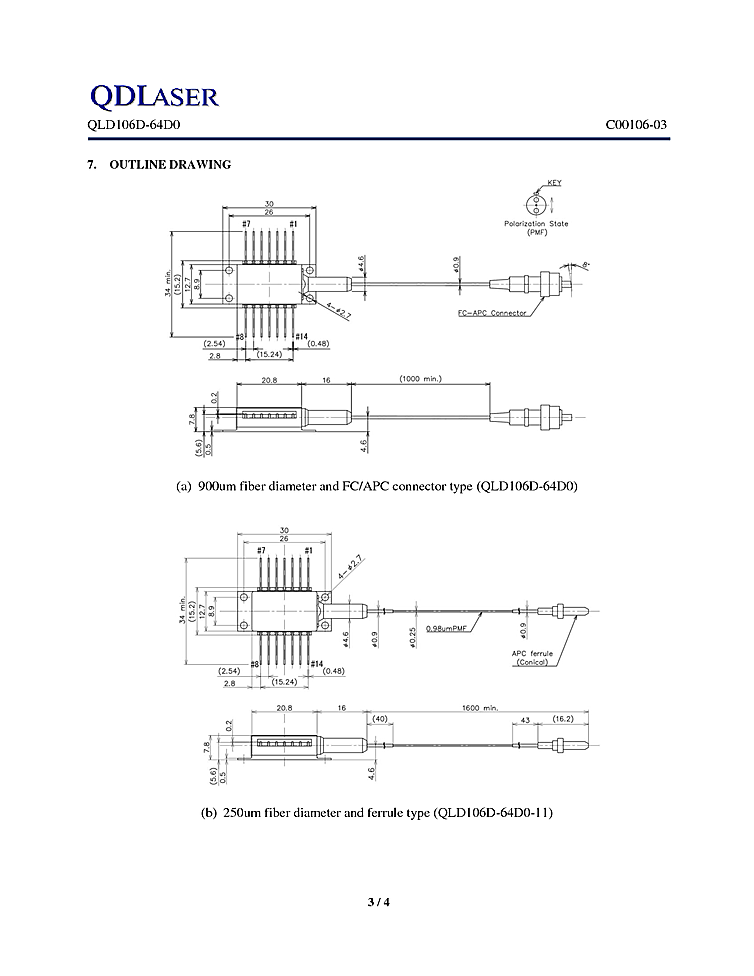

- Fiber-pigtailed 14-pin butterfly package with a TEC
- Optical isolator integration
- Polarization maintaining fiber integration
APPLICATIONS:
- Seeder for fiber lasers
- Sensing
| 価格 | 地域 | 代理店 | |
|---|---|---|---|
| 要問い合わせ | 京都府 | 株式会社光響 | |
