型番：RLLD0009　メーカー：RealLight Technology　商品コード：L001194

915nm Laser Diode, HHL Packaged with Fiber Connector, Single Emitter

915nm Laser Diode, HHL Packaged with Fiber Connector, Single Emitter
915nm Laser Diode, HHL Packaged with Fiber Connector, Single Emitter
915nm Laser Diode, HHL Packaged with Fiber Connector, Single Emitter
915nm Laser Diode, HHL Packaged with Fiber Connector, Single Emitter
915nm Laser Diode, HHL Packaged with Fiber Connector, Single Emitter
915nm Laser Diode, HHL Packaged with Fiber Connector, Single Emitter
915nm Laser Diode, HHL Packaged with Fiber Connector, Single Emitter
915nm Laser Diode, HHL Packaged with Fiber Connector, Single Emitter
915nm Laser Diode, HHL Packaged with Fiber Connector, Single Emitter
915nm Laser Diode, HHL Packaged with Fiber Connector, Single Emitter

メーカー希望小売価格: Request Price 波長: 915nm-915nm
出力: 10W-10W

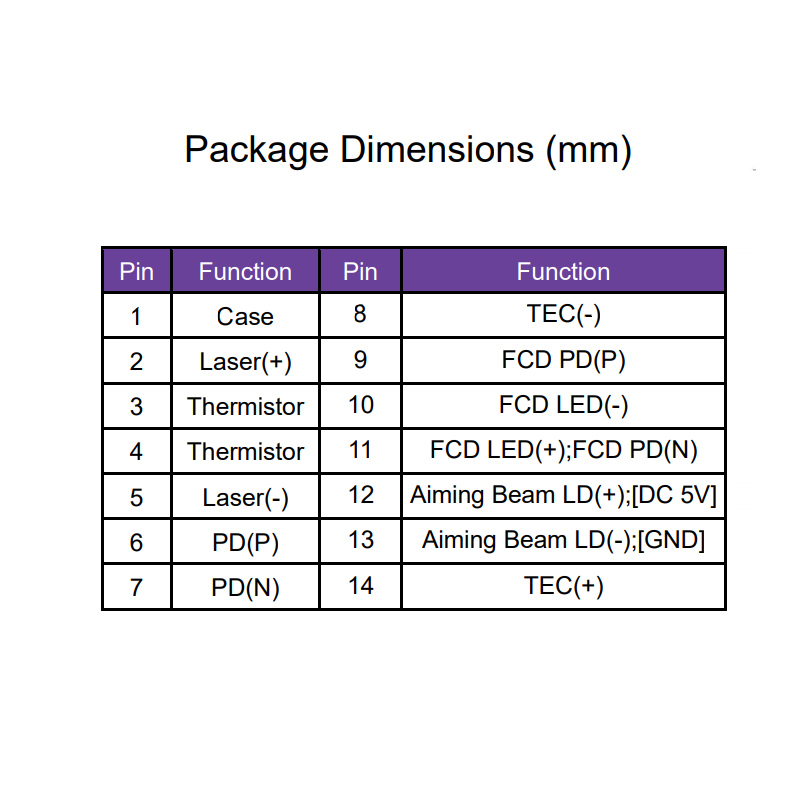

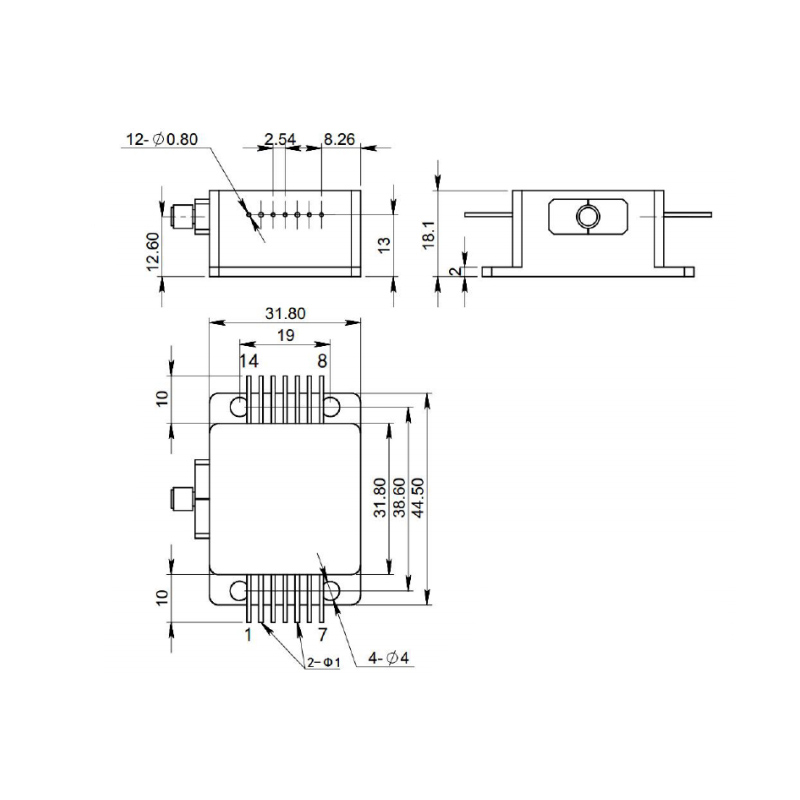

パッケージ: HHL with Fiber Connector
テクノロジー: High Power Multi-Mode Laser Diode

Product Overview:
These 10 watt laser diodes offer high brightness from a convenient HHL package. The HHL is offers a simplified thermal management by distributing and efficiently dissipating the waste heat from the laser. This allows the user to implement either and air cooled or water cooled heat sink base plate with to achieve high reliability and a long life time.
915 nm Laser Diode Applications:
This model was developed for for applications including the pumping of fiber lasers. The high brightness makes them a great choice for material processing applications requiring a fiber coupled output in the 10W range. These lasers were also developed for medical R&D applications as well as remote power transmission. They are manufactured by RealLight, which is a high technology company specializing in research, development, and manufacturing of high power fiber pigtailed semiconductor lasers. They are offered worldwide through Laser Lab Source.
