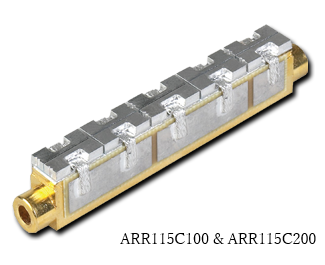

型番：ARR115C100、ARR115C200、ARR115C200-H、ARR115P1000、ARR115P1500、ARR115P2000、ARR115P3000、ARR115P4000、ARR115P8000　メーカー：Northrop Grumman Corporation　商品コード：L001093

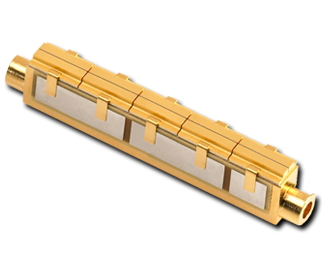

5, 10, 15, 20, 40-Bar X-Stretch Derringer 5 Long Packages

5, 10, 15, 20, 40-Bar X-Stretch Derringer 5 Long Packages
5, 10, 15, 20, 40-Bar X-Stretch Derringer 5 Long Packages
5, 10, 15, 20, 40-Bar X-Stretch Derringer 5 Long Packages
5, 10, 15, 20, 40-Bar X-Stretch Derringer 5 Long Packages

Derringer 5 Long データシート.pdf

波長: 790nm-1550nm
出力: 100W-8000W
電流: 25A-175A
電圧: 8.5V-80.0V
パッケージ: Derringer package
テクノロジー: High power laser diode array

The Derringer package features a proprietary water cooling design that enables excellent heat extraction without the need for deionized water. The arrays are well-suited to side-pumping of solid-state laser (SSL) crystals, as well as any direct diode application which requires multiple bars in a linear configuration. The 5-long Derringer features an emission output length of approximately 5 cm. CW output powers of up to 200W are available. For QCW configurations, the maximum output is 12 kW out of a 40-bar array.

見積りBOXへ入れる 欲しい物リストに登録
メーカーWebサイトへ
価格 地域 代理店
要問い合わせ ノースロップ・グラマン ジャパン
