型番：DFB-ITU-100　メーカー：Emcore Corporation　商品コード：L002016

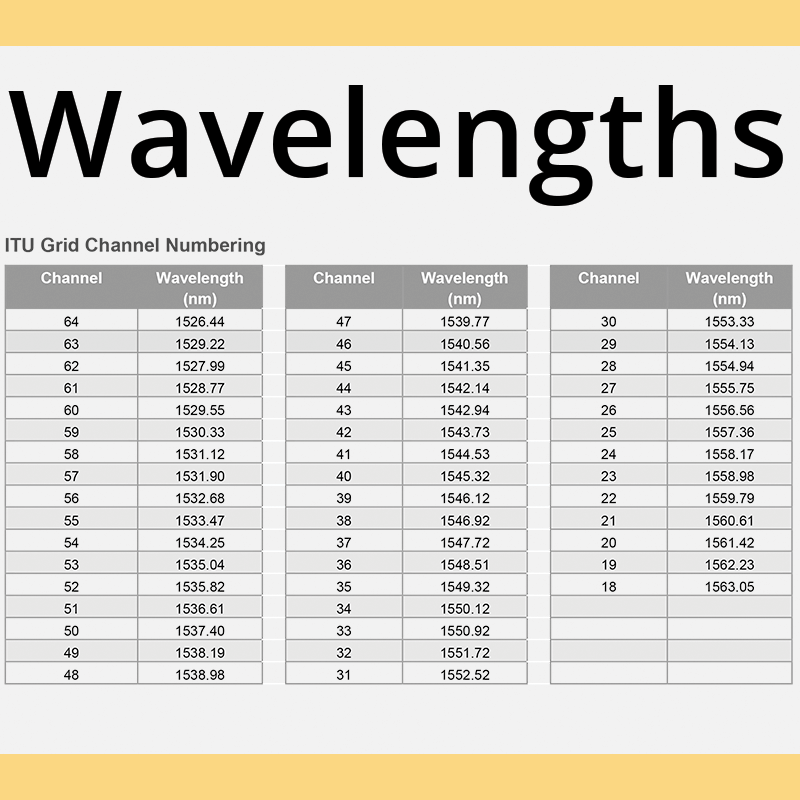

High Power DFB Laser Diode, C-Band, ITU Grid Wavelengths: 1528nm~1563nm, 100mW Output Power

High Power DFB Laser Diode, C-Band, ITU Grid Wavelengths: 1528nm~1563nm, 100mW Output Power
High Power DFB Laser Diode, C-Band, ITU Grid Wavelengths: 1528nm~1563nm, 100mW Output Power
High Power DFB Laser Diode, C-Band, ITU Grid Wavelengths: 1528nm~1563nm, 100mW Output Power
High Power DFB Laser Diode, C-Band, ITU Grid Wavelengths: 1528nm~1563nm, 100mW Output Power
High Power DFB Laser Diode, C-Band, ITU Grid Wavelengths: 1528nm~1563nm, 100mW Output Power
High Power DFB Laser Diode, C-Band, ITU Grid Wavelengths: 1528nm~1563nm, 100mW Output Power
High Power DFB Laser Diode, C-Band, ITU Grid Wavelengths: 1528nm~1563nm, 100mW Output Power
High Power DFB Laser Diode, C-Band, ITU Grid Wavelengths: 1528nm~1563nm, 100mW Output Power
High Power DFB Laser Diode, C-Band, ITU Grid Wavelengths: 1528nm~1563nm, 100mW Output Power
High Power DFB Laser Diode, C-Band, ITU Grid Wavelengths: 1528nm~1563nm, 100mW Output Power

メーカー希望小売価格: Request Price 波長: 1528nm-1563nm
出力: 100mW-100mW

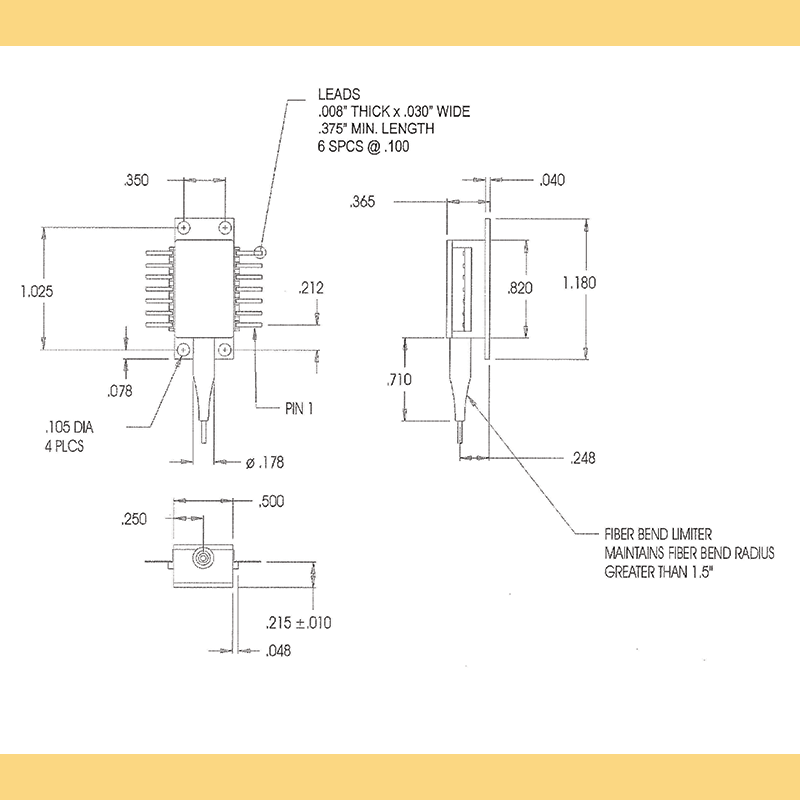

パッケージ: Butterfly
テクノロジー: DFB

Product Overview:

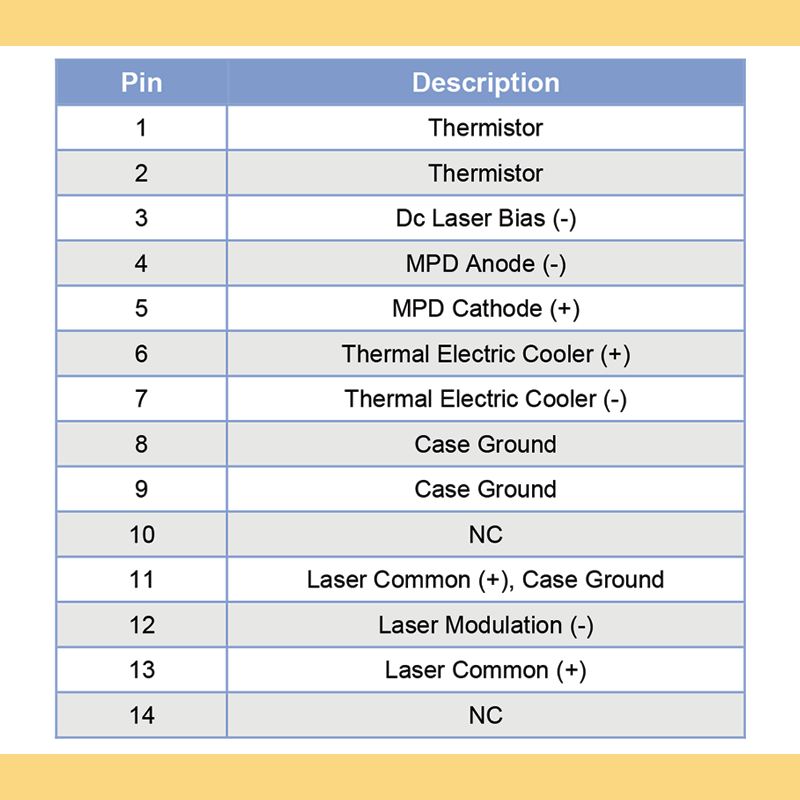

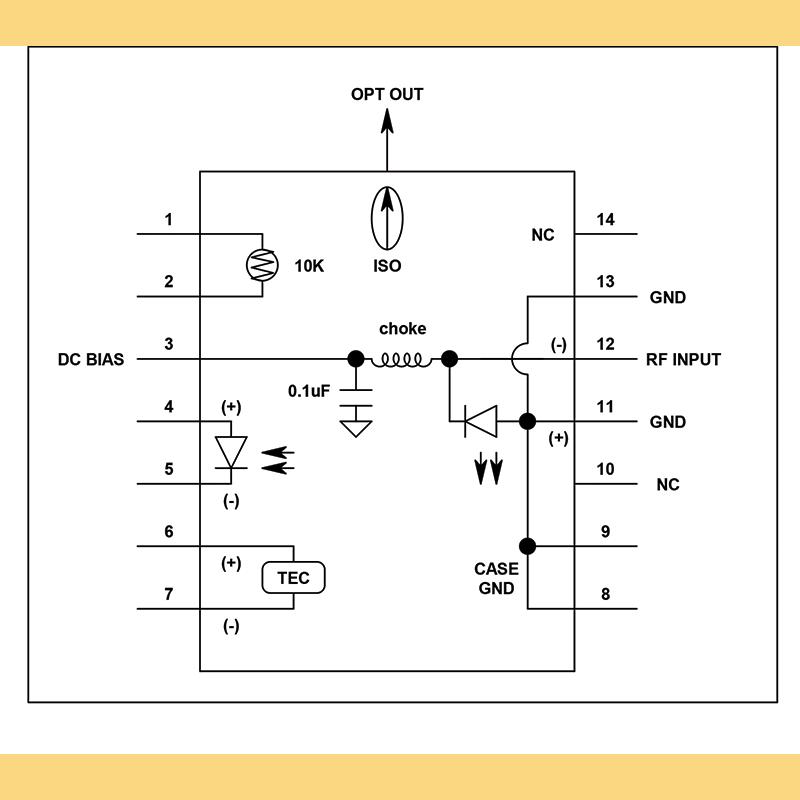

These high power DFB laser diodes from EMCORE are offered at C-Band wavelengths across the ITU grid. They come at 100 GHz spaced increments, and offer up to 100 mW of optical output power from a high performance DFB chip. They come with an integrated thermistor, back facet photodiode and optical isolator. These butterfly packaged DFB sources offer a high efficiency coupling scheme to deliver 100 mW of CW optical power. They come in an industry standard "Type 2" pin configuration.
