型番：30.070.00055　メーカー：Artifex Engineering　商品コード：L003788

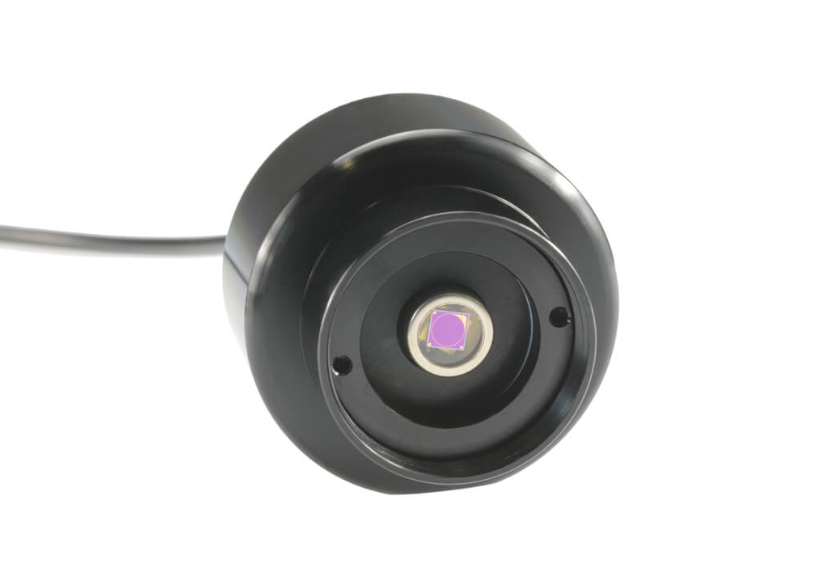

OPM150 x2.0IGA-Detector

OPM150 x2.0IGA-Detector
OPM150 x2.0IGA-Detector

波長: 800nm-2000nm
出力: 1nW-8mW

< Description >
A small area InGaAs photodiode detector head, compatible with the OPM150 series of optical power meter. The special design of the material gives high sensitivity up to 2000nm. This extends significantly beyond the range of standard InGaAs materials. The head mechanics are designed to be compatible with various common optomechanics systems to allow simple integration. Various adapters for tube systems, camera objectives and optical fibres are available to further enhance the ease of integration. When connected to the OPM150 base unit, each head is automatically recognized and its individual calibration data are uploaded to the system. In addition, the user may load upto 5 separate filter curves. Thus, the dynamic range and functionality of the unit can be expanded while ensuring proper calibration.


< Specifications >
Wavelength range: 800-2000nm
Sensitive area: ø3mm
Minimum measureable power: 1nW (at 1550nm)
Maximum measureable power: 3mW (at 1550nm)
Maximum outer dimensions: ø30mm x 30mm


< Accessories >
Calibrated diffuse reflecting attenuators: OD1, OD2
Adapters for tube systems
Adapters for fibre inputs: FC, SMA, LC, ø 1.25 ferrule

見積りBOXへ入れる 欲しい物リストに登録
メーカーWebサイトへ
価格 地域 代理店
要問い合わせ 京都府 株式会社光響
