型番： メーカー：Coherent 商品コード：L000856
Coherent Laser, 808nm, 45Watt
波長: 808nm-808nm
出力: 45W-45W
パッケージ: fiber coupled laser module
テクノロジー: high powered laser array

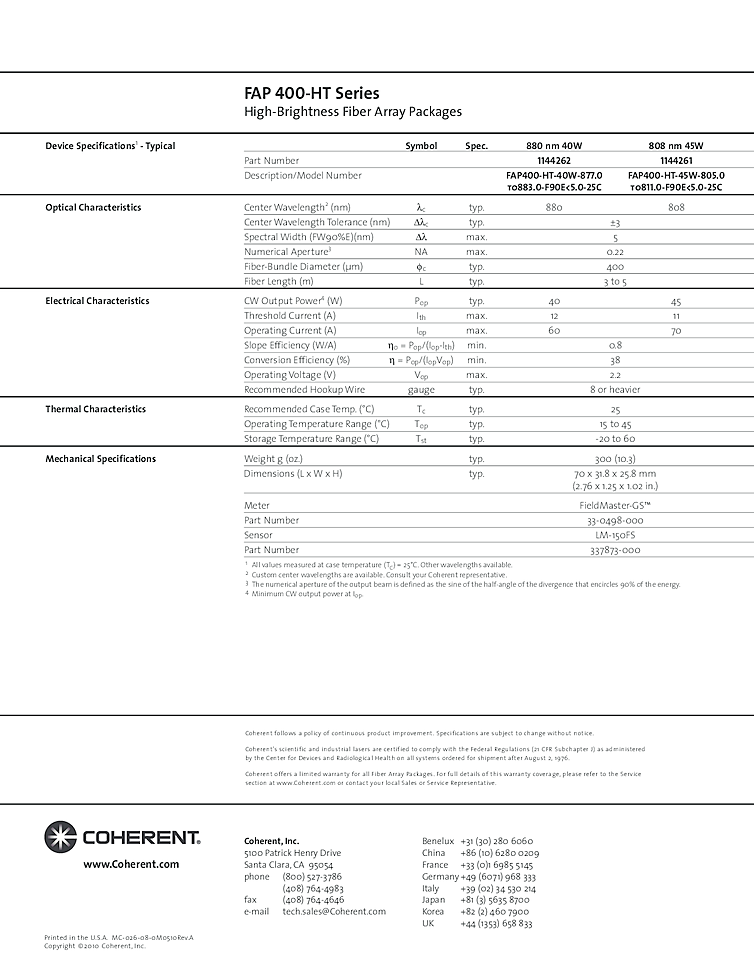

808nm FAP 400-HT Series laser diodes are having following features and specifications as in attached data sheet. Features include Aluminum-free Active Area, high brightness and efficiency, rugged construction, compact size and convenient mounting. This comes in Fiber Array Packages. Center Wavelength Tolerance (nm) is specified as ±3, Fiber-Bundle Diameter (µm) specified as 400, Threshold Current (A) is 11, Slope Efficiency (W/A) specified as 0.8, Operating Voltage (V) max is 2.2 and Weight g (oz.) is 300 (10.3)
| 価格 | 地域 | 代理店 | |
|---|---|---|---|
| 要問い合わせ | コヒレント・ジャパン株式会社 | ||
