型番：JOLD-45-CPXF-1L　メーカー：JENOPTIK　商品コード：L000852

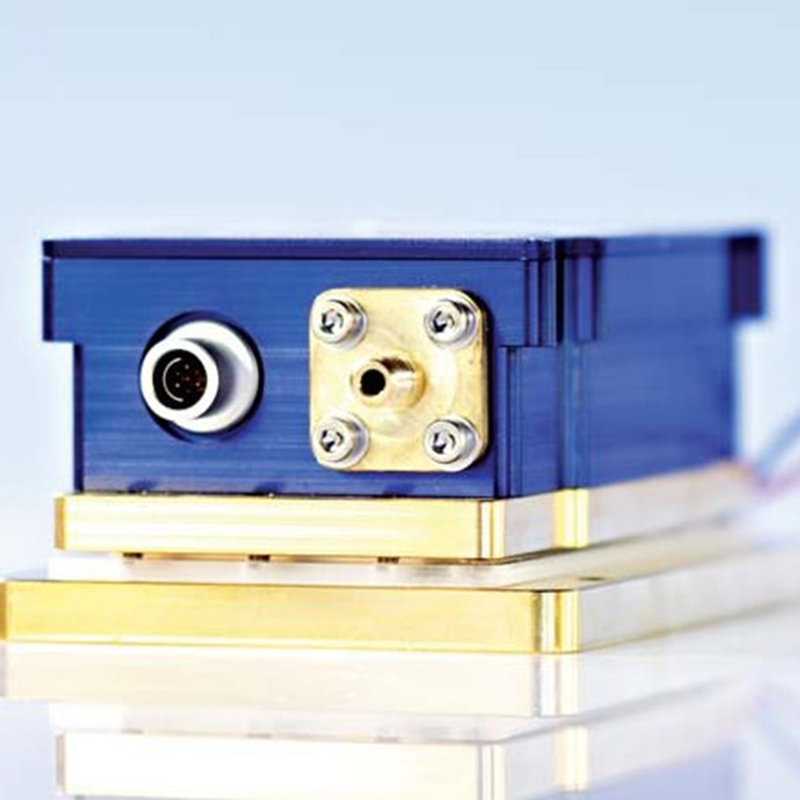

808nm, 45 Watt Laser Diode Array, Fiber Coupled Package

808nm, 45 Watt Laser Diode Array, Fiber Coupled Package
808nm, 45 Watt Laser Diode Array, Fiber Coupled Package

メーカー希望小売価格: Request 波長: 808nm-808nm
出力: 45W-45W
パッケージ: Fiber Coupled Module, Detachable Fiber
テクノロジー: CW Mode of Operation, Passively Cooled

Product Overview:
These Jenoptik laser modules offer up to 45 Watts of CW power at 808nm from a thermally efficient fiber coupled module. They are rated for applications such as pumping of solid-state lasers and fiber lasers,
material processing and medical applications. Referencing the attached data sheet, these modules come with an integrated TEC for stabilization. They are passively cooled and offer a slope efficiency value of 0.95 watts per amp of electrical input power. The temperature sensor integrated into the module is pt100 style and pt1000 style. The maximum cooling power to be applied to the TEC elements is listed at 346 Watts of power.
