型番：DFB-1XXX-T5-5-2.5-XX-A-X-M787　メーカー：Applied Optoelectronics, inc.　商品コード：L001781

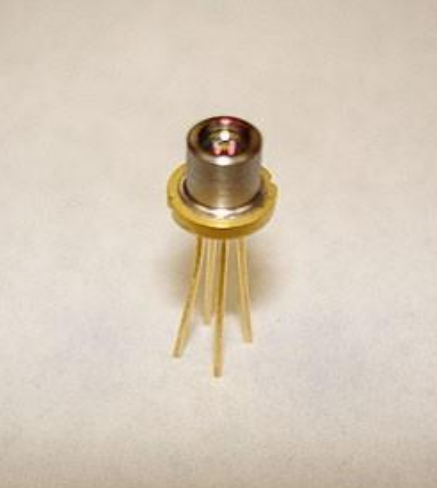

TO-56 of MQW-DFB Laser for low-cost high-speed transmitters

TO-56 of MQW-DFB Laser for low-cost high-speed transmitters
TO-56 of MQW-DFB Laser for low-cost high-speed transmitters

DFB-1XXX-T5-5-2.5-XX-A-X-M787 データシート.pdf

波長: 1270nm-1610nm
出力: 5.0mW-
パッケージ: 5.6-mm TO-style package
テクノロジー: DFB Laser

【Description】

The DFB-1XXX-T5-5-2.5-XX-A-X-M787 series of MultiQuantum Well (MQW) Distributed Feedback (DFB) lasers are well suited for low-cost high speed transmitters. The devices feature high output power, wide operating temperature range, and high side mode suppression. Their uncooled, hermetically sealed, TO-56 style packages are a cost-effective means of providing a low-noise light source for intermediate-reach and long-reach digital transmission applications.


【Features】

Advanced Multiple Quantum Well (MQW) Distributed Feedback (DFB) Laser Design
Cost-effective Uncooled Laser Technology
SMSR typ. 40 dB
5.6-mm TO-style package


【Applications】

SONET 2.5Gbps Transmitter
Point-to-point fiber optic links
