型番：QUALD0003　メーカー：Quantel (LD)　商品コード：L000849

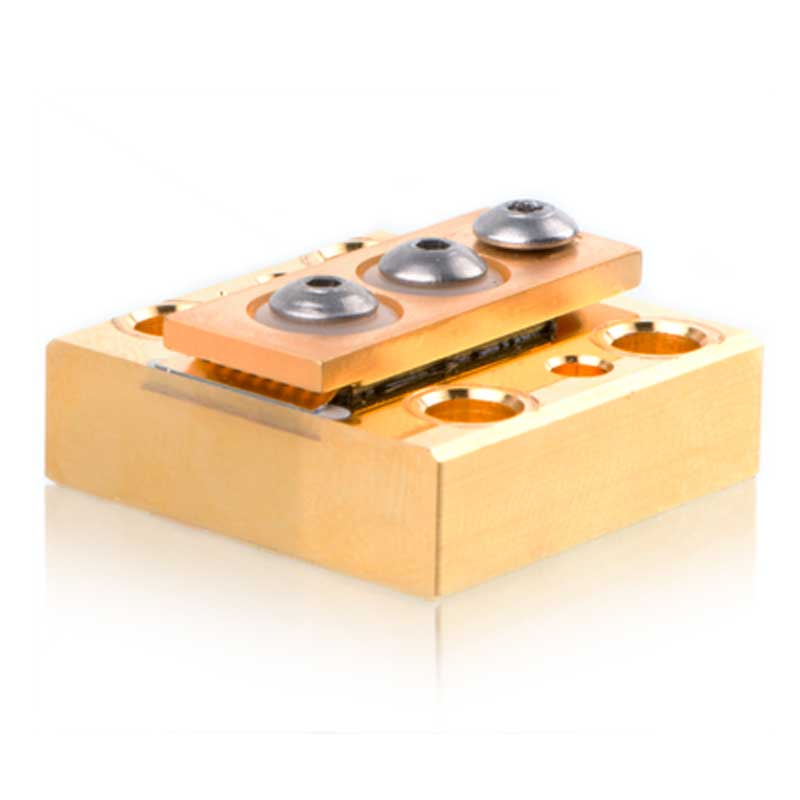

High Power 808nm QCW Linear Laser Diode Bar Array

High Power 808nm QCW Linear Laser Diode Bar Array
High Power 808nm QCW Linear Laser Diode Bar Array

メーカー希望小売価格: Request Price 波長: 808nm-808nm
出力: 100W-100W
パッケージ: CS-Mount
テクノロジー: Horizontal Bar, QCW Mode of Operation

Product Overview:
These high power 808nm conductively cooled single laser diode bars operate at high QCW optical power. These devices are offered on an H-packaged bar package with Quasi-CW laser output up to 100 watts at 808nm. The design is optimized to very high repetition rate (up to 50 kHz). They operate at a high duty cycle (20%) and offer and high average optical power due to the package offering a low thermal resistance. An additional FAC lens is an option to offer a well collimated beam at 8 mrad @ 1/e². Theuy are assembled in a compact and rugged package using AuSn hard solder, which allows the building of bars for dense pumping arrays for a wide range of applications.
