型番:CB650-1.2-3(16X58)-F100 メーカー:Picotronic GmbH 商品コード:L000832
メーカー希望小売価格: €62,94
波長: 650nm-
出力: 1.2mW-
電流: 15mA-40mA
電圧: 2.7V-3.3V
パッケージ: MODULE
テクノロジー: Cross Laser
拡がり角: B - 0.3 mrad

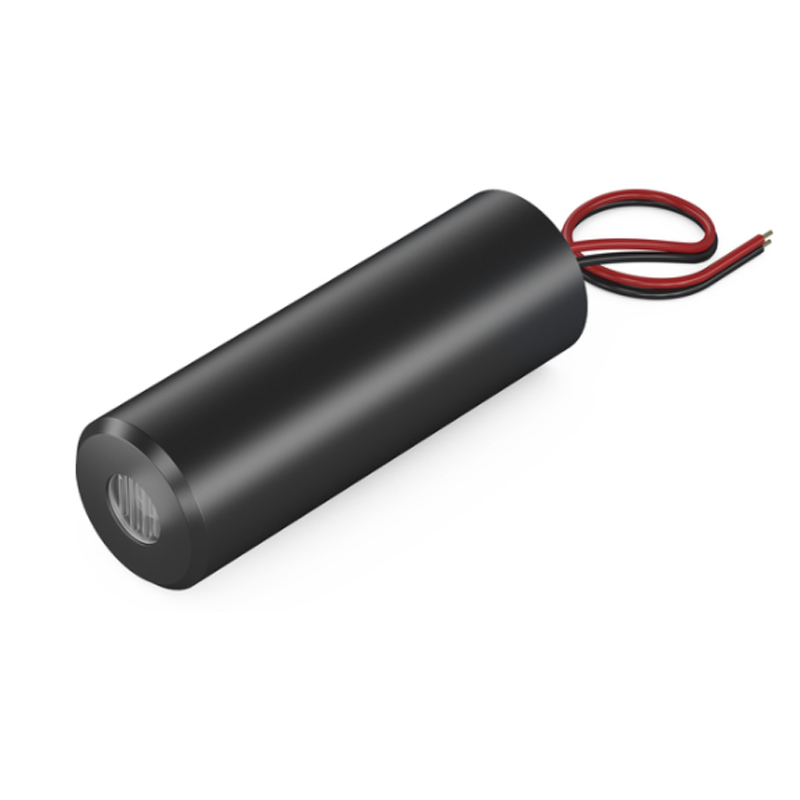

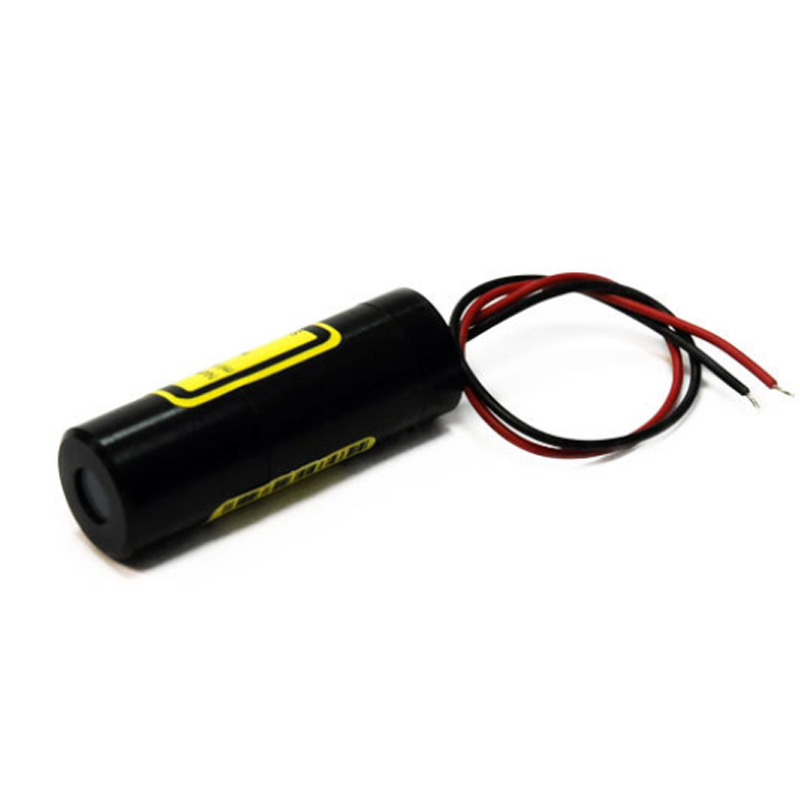

Isolated cross lasermodule, red, 90°, 650nm, 1.2mW, 3V DC, focus 100mm, 16x45mm, class 1
< Main Parameters (*) >
Wavelength typ 650 nm
Optical Output Power typ 1.2 mW
Operating Voltage min 2.7 typ 3 max 3.3 V DC
Operating Current min 15 typ 25 max 40 mA
Operating Temperature min -20 max 50 °C
Storage Temperature min -40 max 80 °C
< Main Data >
Warranty 1 years
< Technical Parameters >
Lifetime > 5,000 h
RoHS yes
< Optical Parameters >
Beam Shape Cross
Laser Class 1
Divergence B - 0.3 mrad
Fan Angle 90 °
Line Thickness <0.3mm@0.1m
Operating Distance 0.1 m
Optics glass lens AR coated
Laser technology Single Mode Diode
Focus fixed (100mm)
< Electrical Parameters >
Potential of Housing isolated
Max. Mod. Frequency 50 kHz
Power Supply LFNT-3
< Mechanical Parameters >
Size Ø16x45 mm
Material aluminium
Cable length 100 mm
Wire type 26AWG, 0,14mm²
Output Aperture 6.8 mm
Housing Color black
Weight 23 g
(*) Over the complete operating temperature range
