型番:E650-12-3(43X175)APT30 メーカー:Picotronic GmbH 商品コード:L000843

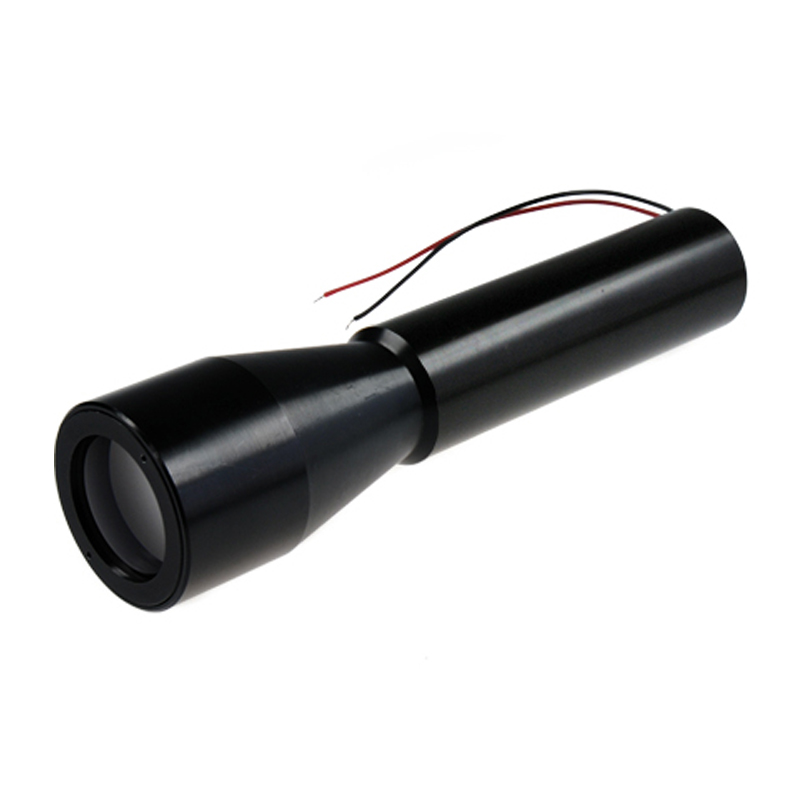

12mW Red Isolated Expander Lasermodule (APT30)

メーカー希望小売価格: €278,91 波長: 650nm-
出力: 12mW-
電流: 50mA-150mA
電圧: 2.7V-3.3V
パッケージ: MODULE
テクノロジー: Expander Laser

Isolated Expander lasermodule, red, 650nm, 12mW, 3V DC, 43x175mm, class 3R

• Laser Class 3R
• Operating Voltage 3 V DC
• Image processing
• Glas lenses anti reflex coated
• Compact size

< Main Parameters (*) >
Wavelength typ 650 nm
Optical Output Power typ 12 mW
Operating Voltage min 2.7 typ 3 max 3.3 V DC
Operating Current min 50 typ 100 max 150 mA
Operating Temperature min -20 max 50 °C
Storage Temperature min -40 max 80 °C

< Main Data >
Warranty 1 years

< Technical Parameters >
Lifetime > 5,000 h
RoHS yes

< Optical Parameters >
Beam Shape expander
Laser Class 3R
Beam Diameter 30 mm
Operating Distance 150 m
Optics glass lens AR coated
Laser technology diode
Focus fixed

< Electrical Parameters >
Potential of Housing isolated
Power Supply LFNT-3

< Mechanical Parameters >
Size Ø43x175 mm
Material aluminium
Cable length 100 mm
Wire type 26AWG, 0,14mm²
Output Aperture 30 mm
Weight 151 g

(*) Over the complete operating temperature range
