型番：30.070.00026、30.070.00041　メーカー：Artifex Engineering　商品コード：L003785

OPM150 G3 FC/SMA-Detector

波長: 800nm-1550nm
出力: 1µW-8mW

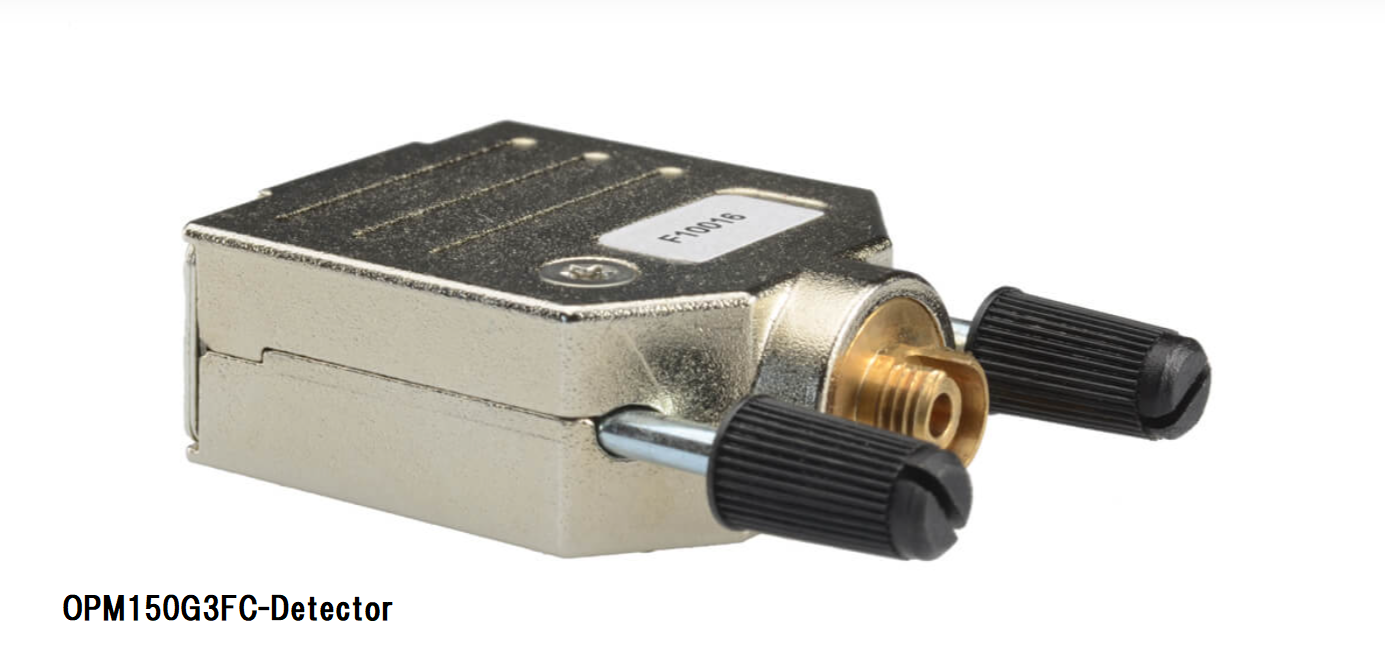

・OPM150G3FC-Detector (30.070.00026): FC fibre connector
　This compact unit is designed specifically for measurement of power out of FC-connectorized fibres only.

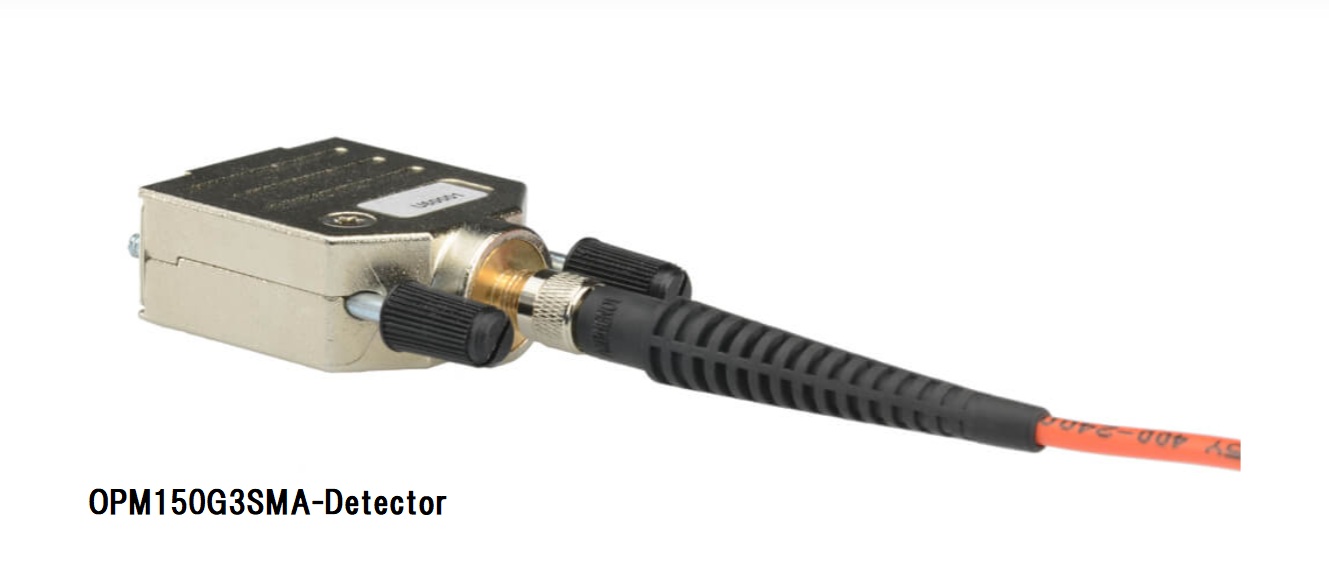

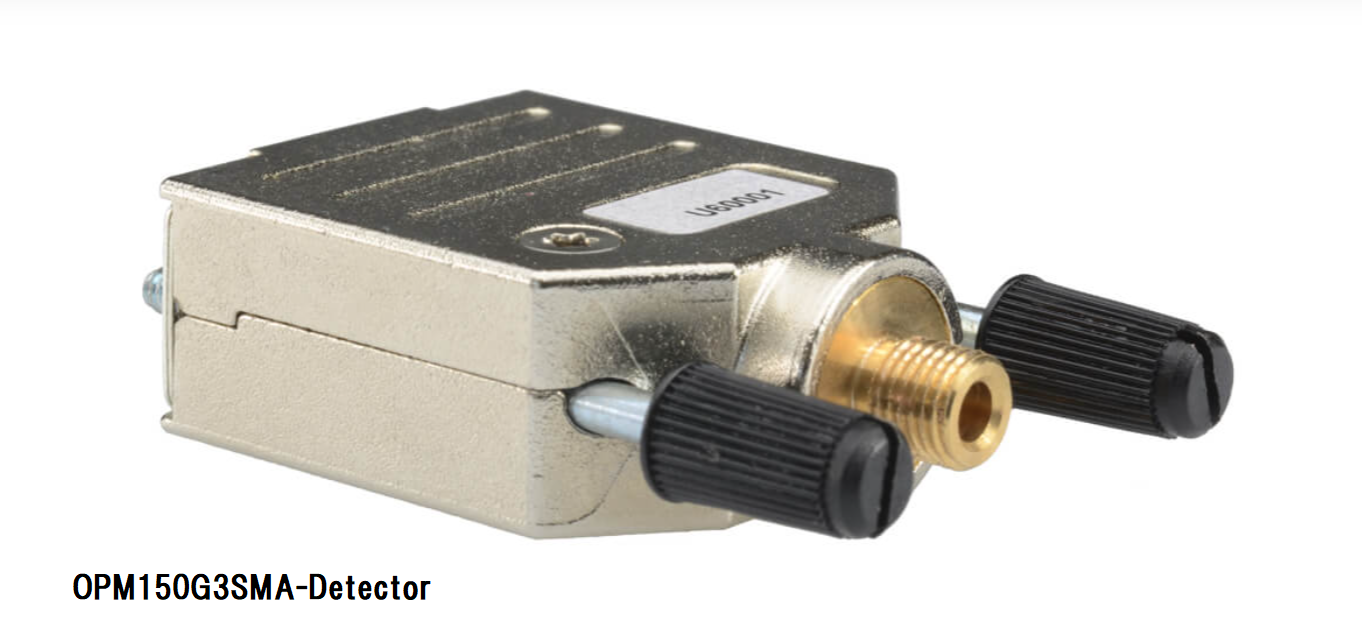

・OPM150G3SMA-Detector (30.070.00041): SMA fibre connector
　This compact unit is designed specifically for measurement of power out of SMA-connectorized fibres only.

< Description >
A germanium (Ge) photodiode detector head, compatible with the OPM150 series of optical power meter. The fibre receptacle, photodetector and calibration memory chip are all contained in the connector body. When connected to the OPM150 base unit, each head is automatically recognized and its individual calibration data are uploaded to the system.

< Specifications >
Wavelength range: 800-1550nm
Maximum fibre core: ø 1000µm at NA 0.39, ø 1500µm at NA 0,22
Minimum measureable power: 1µW (at 1550nm)
Maximum measureable power: 8mW (at 1550nm) with Base Module 30.070.00002, 4mW (at 1550nm) with Base Module 30.070.00058
Maximum outer dimensions: 47.5 x 31.3 x 14.8mm
