型番：VPSL-0635-015-x-9-B　メーカー：Blue Sky Research　商品コード：L003345

635nm / 15mW　VPS Laser Diode [TO-can]

635nm / 15mW　VPS Laser Diode [TO-can]
635nm / 15mW　VPS Laser Diode [TO-can]
635nm / 15mW　VPS Laser Diode [TO-can]
635nm / 15mW　VPS Laser Diode [TO-can]

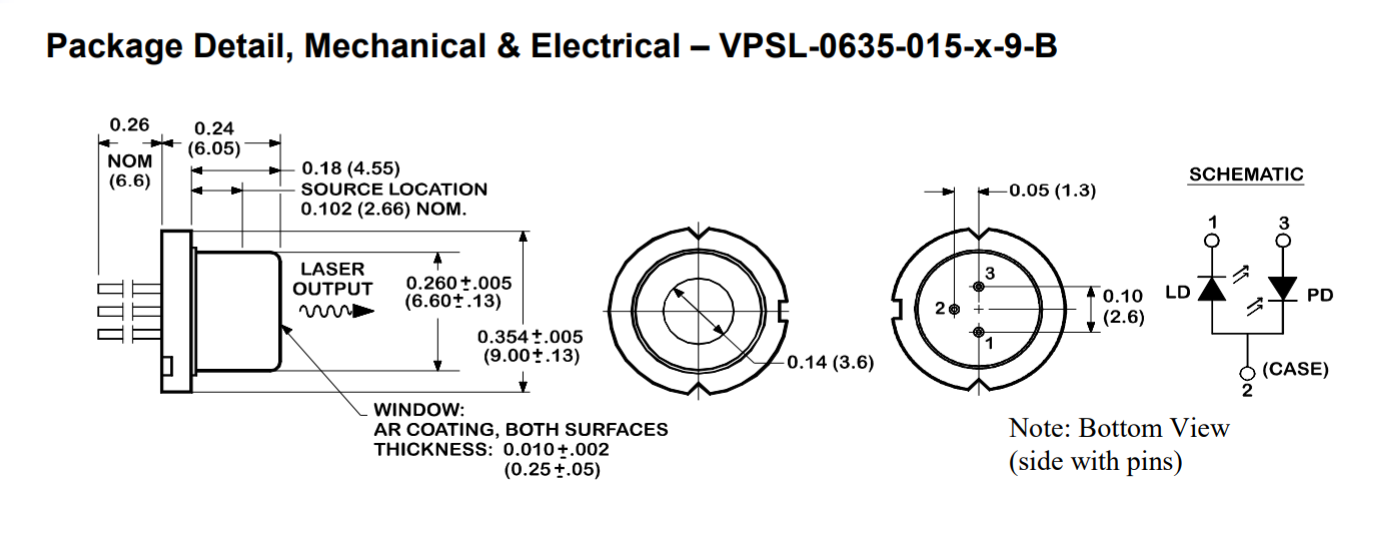

VPSL-0635-015-x-9-B データシート.pdf

波長: 630nm-640nm
出力: -15mW
電流: 85mA-100mA
電圧: -2.7V
パッケージ: TO-can
形状: 円
拡がり角: 5, 8, 11 deg

< Description >
The VPSL-0635-015-x-9-B is a 0.63 µm band, A1GaInP index-guided, multi-quantum well (MQW) laser diode with an integrated, internal, beam correcting optic. It is suitable as a light source for laser levelers and optical equipment for measurement. Hermetic sealing of the package assures high reliability.

< Features >
Visible light output
15mW CW optical power
Built-in monitor photodiode
Circular, diverging beam, NA approximately 0.11
Diffraction limited wavefront
Standard 9mm form factor
