型番:E650-2-3(24X96)APT20 メーカー:Picotronic GmbH 商品コード:L000834

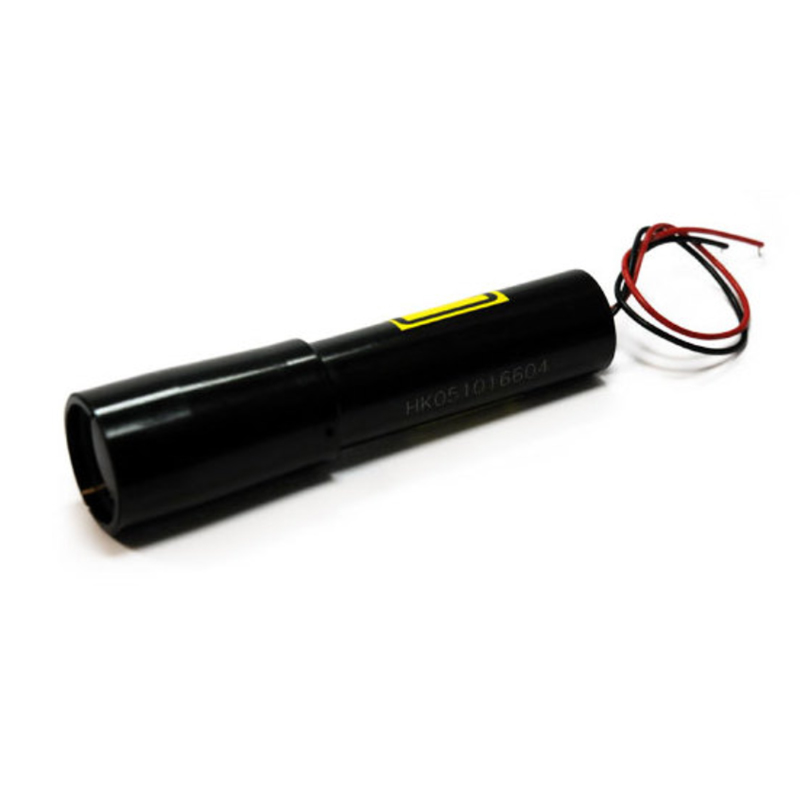

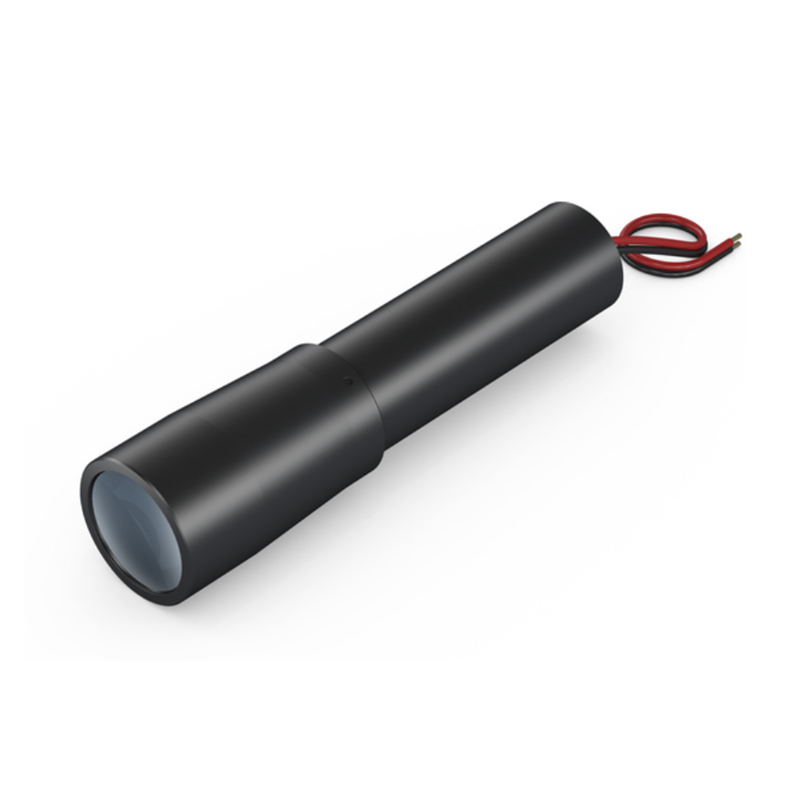

2mW Red Focusable Isolated Expander Lasermodule (APT20)

メーカー希望小売価格: €173,03 波長: 650nm-
出力: 2mW-
電流: 15mA-45mA
電圧: 2.7V-3.3V
パッケージ: MODULE
テクノロジー: Expander Laser

Focusable isolated Expander lasermodule, red, 650nm, 2mW, 3V DC, 24x96mm, class 3R

• Operating Voltage 3 V DC
• Image processing
• Compact size
• Adjustable focus
• Glas lenses anti reflex coated

< Main Parameters (*) >
Wavelength typ 650 nm
Optical Output Power typ 2 mW
Operating Voltage min 2.7 typ 3 max 3.3 V DC
Operating Current min 15 typ 30 max 45 mA
Operating Temperature min -20 max 50 °C
Storage Temperature min -40 max 80 °C

< Main Data >
Warranty 1 years

< Technical Parameters >
Lifetime > 5,000 h
RoHS yes

< Optical Parameters >
Beam Shape expander
Laser Class 3R
Operating Distance 20 m
Optics glass lens AR coated
Laser technology diode
Focus adjustable

< Electrical Parameters >
Potential of Housing isolated
Power Supply LFNT-3

< Mechanical Parameters >

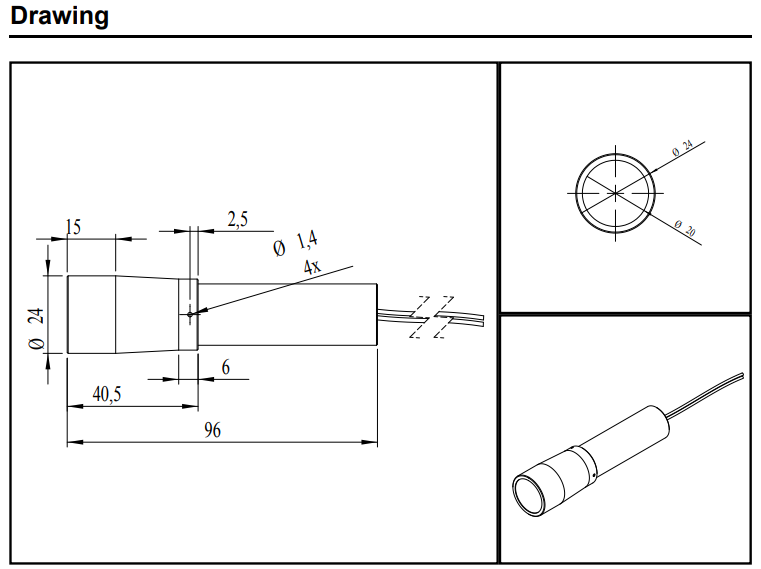

Size Ø24x96 mm
Material aluminium
Cable length 100 mm
Wire type 26AWG, 0,14mm²
Output Aperture 20 mm
Weight 75 g

(*) Over the complete operating temperature range
