波長: 715nm-990nm
出力: 150mW-2100mW
テクノロジー: Ti:Sapphire Femtosecond Solid-StateLaser
ビーム径: <2 mm
拡がり角: <1 mrad
エネルギー安定性: <0.2% rms

【Description】

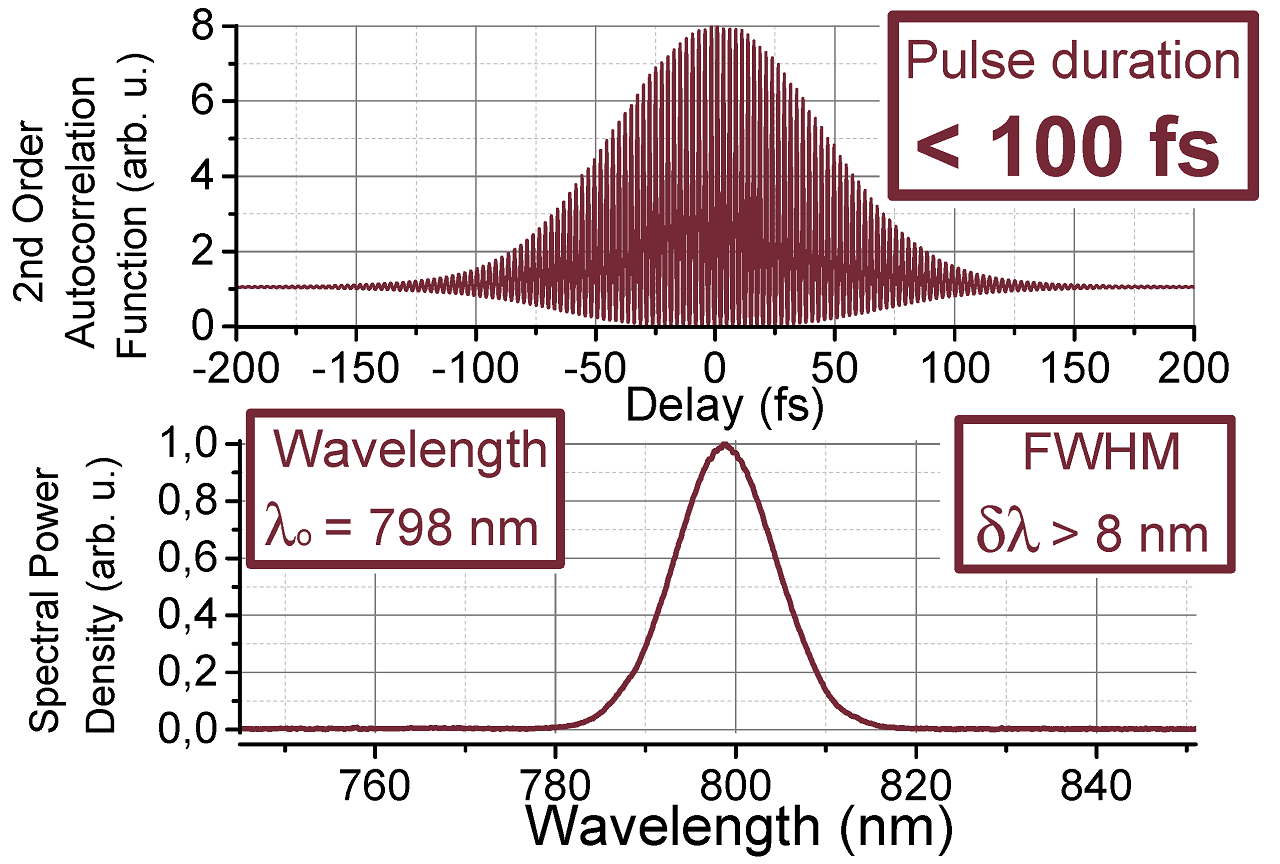

The TiF-100 laser system offers high average power and broad tuning range in a single compact packgage. The system emits spectrally-limited pulses with a duration shorter than 100 fs at 800 nm. Among the TiF series lasers, this model has the highest average output power, both in the pulsed femtosecond mode and in the continuous wave mode with a narrow linewidth. The unit is a flexible tool suitable for numerous applications and can really be a workhorse for many different projects going on simultaneously.

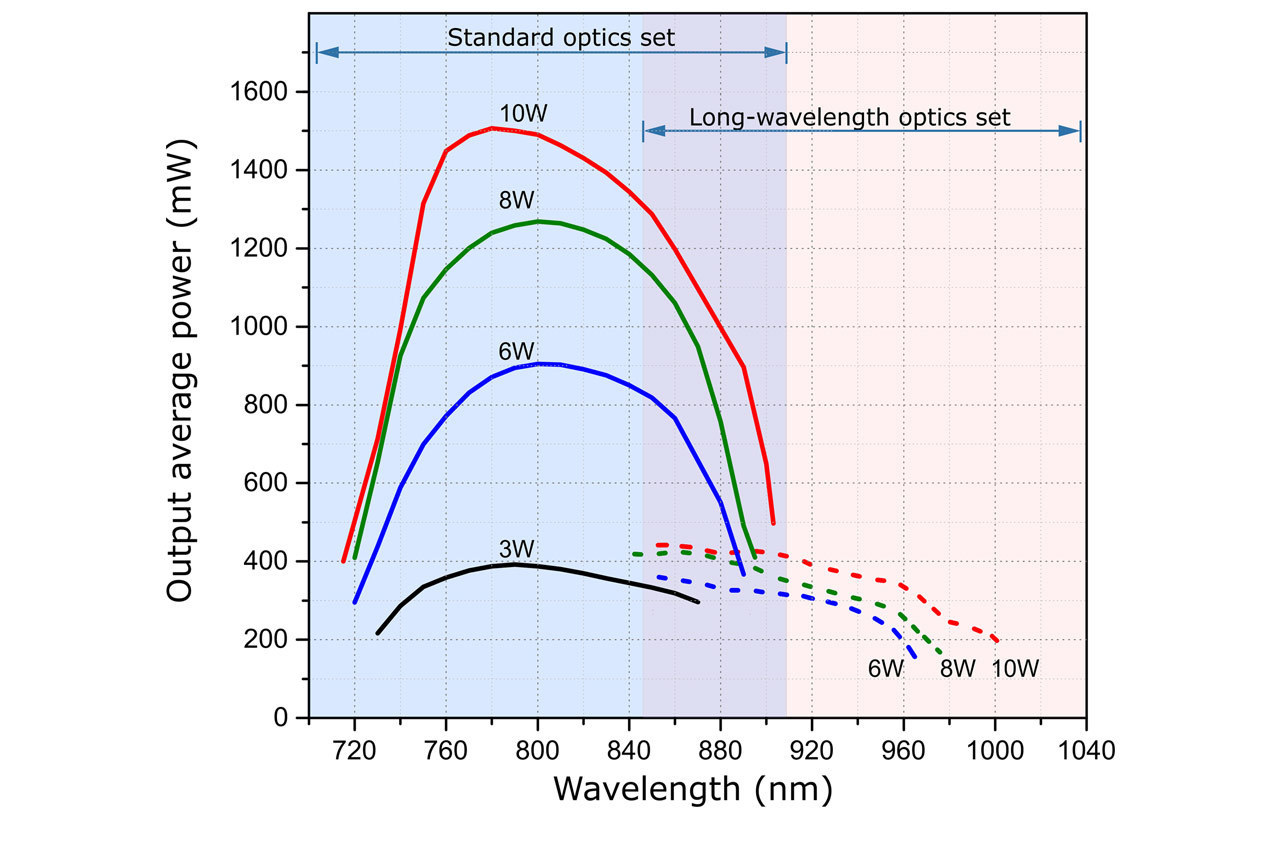

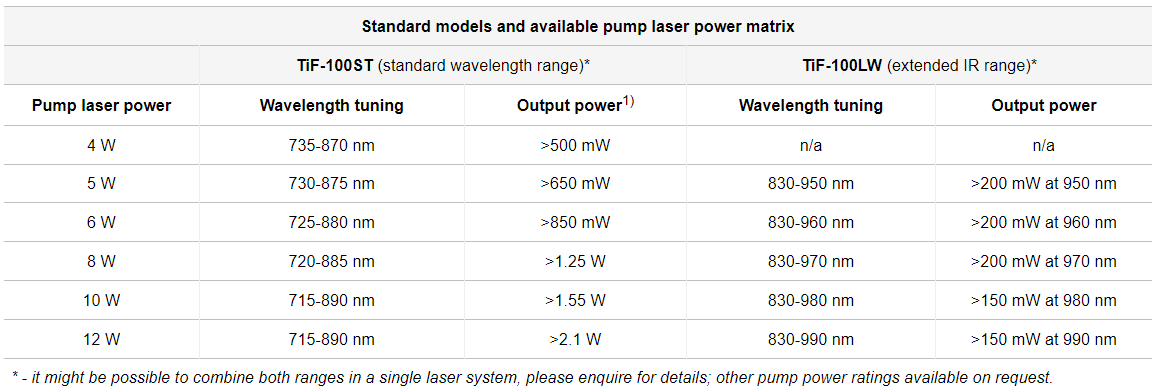

The system can be supplied as a stand-alone version for pumping by an external pump laser or as a version with an industry-standard pump laser integrated on site or at our factory. However, the dimensions of the Ti:S laser head are the same for either version, the stand-alone version may later be fitted with an integrated pump laser at minimum additional cost. The acceptable pump laser power for the TiF-100 is up to 12 Watts. See tuning curves in the datasheet for output power vs. wavelength dependence.

There are three pre-designed factory supply packages:
- the ‘Manual’ factory package includes a push-button non-automatic electric starter and allows manual tuning of the wavelength and pulse duration setting by using micrometer screws placed on the side walls of the laser box.
- the ‘Basic’ factory package includes a simple USB motorized wavelength tuning slit and a push-button non-automatic electric starter. Wavelength tuning and calibration with this package is done via step number information in basic Windows software.

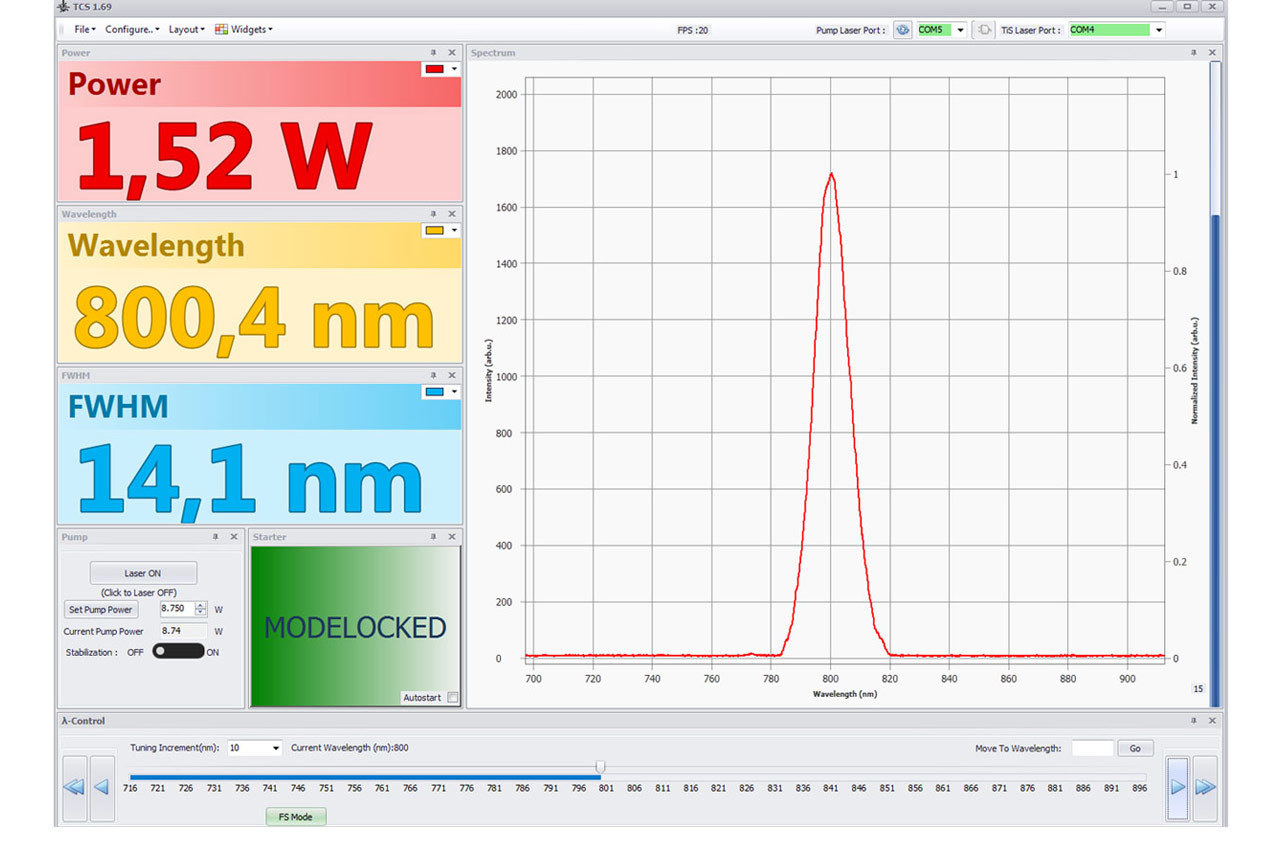

- the ‘Auto’ factory package includes a built-in spectrometer and power meter, single-touch wavelength tuning with presets, configurable widget software, active power lock function and automatic mode-lock start and monitoring. With this package the system boasts exceptional long-term stability and longer uninterrupted runtime.

The system can also be equipped with an optional birefringent filter and optional etalons providing narrowband tunable CW regime over the whole tuning range.

An external prism pair or a tunable pulse compressor (the APC Kit or APC Pro units) for dispersion pre-compensation is also available.

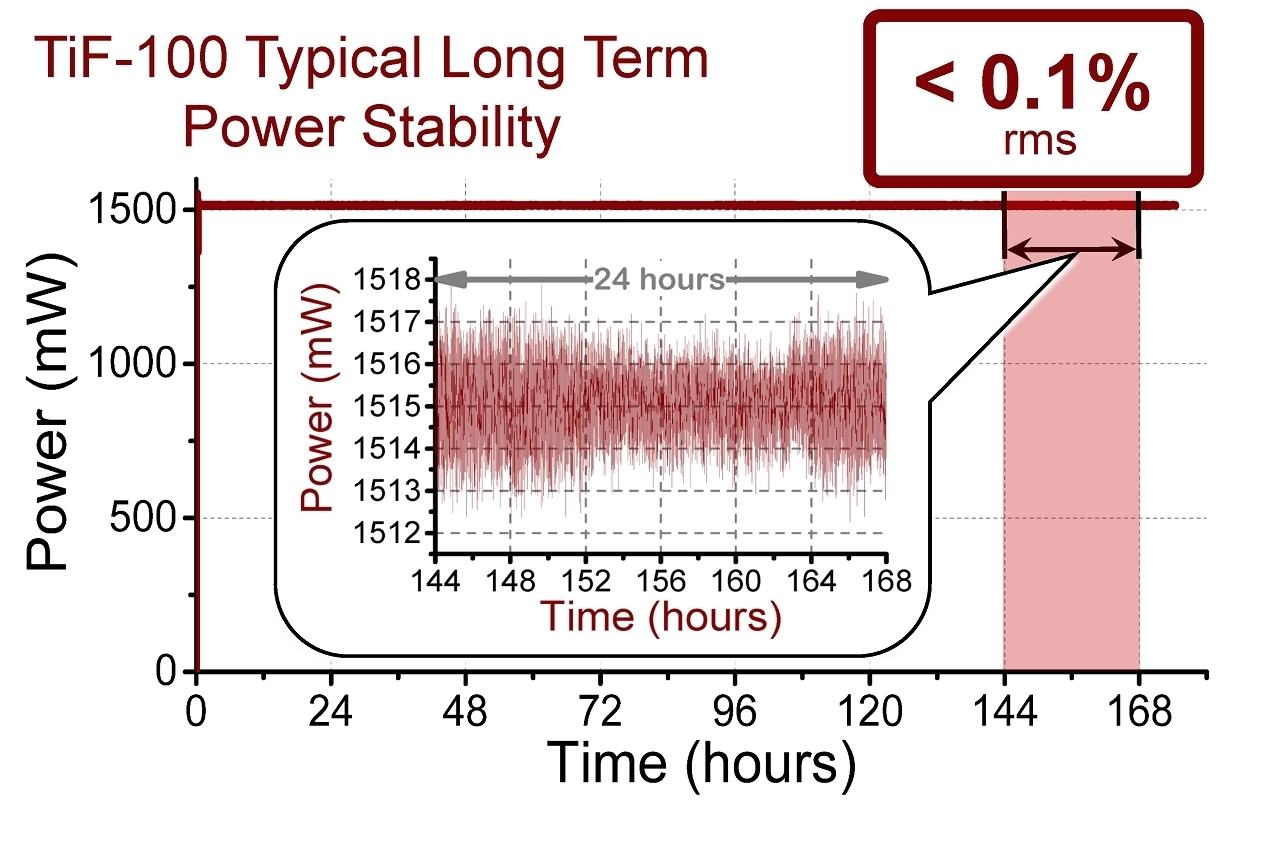

The monolithic thermostabilized body of the TiF-100 provides excellent passive stability of the output radiation parameters.

【Features】
715-990 nm USB tuning range
<100 fs pulse duration
Up to 2.1 W output power
Monolithic thermally stabilized body
Automatic mode-locking and power stability locking (optional)
Integrated spectrometer and power meter (optional)
Switchable tunable CW/fs cavity arms (option)
