型番:LB650-1-3(16X45) メーカー:Picotronic GmbH 商品コード:L000833
メーカー希望小売価格: €45,29
波長: 650nm-
出力: 1mW-
電流: 15mA-40mA
電圧: 2.7V-3.3V
パッケージ: MODULE
テクノロジー: Line Laser
拡がり角: B - 0.3 mrad

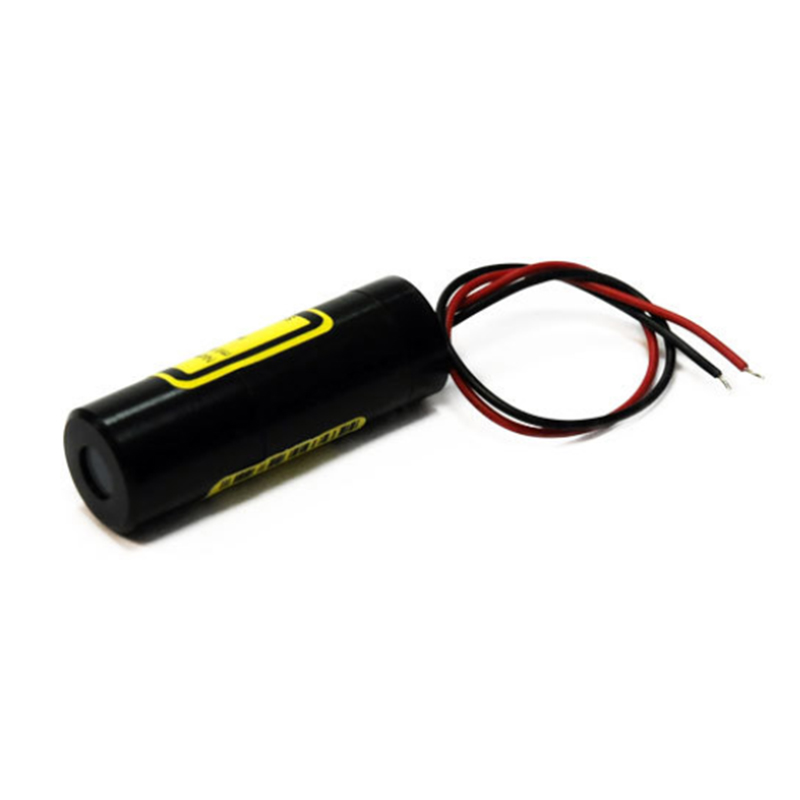

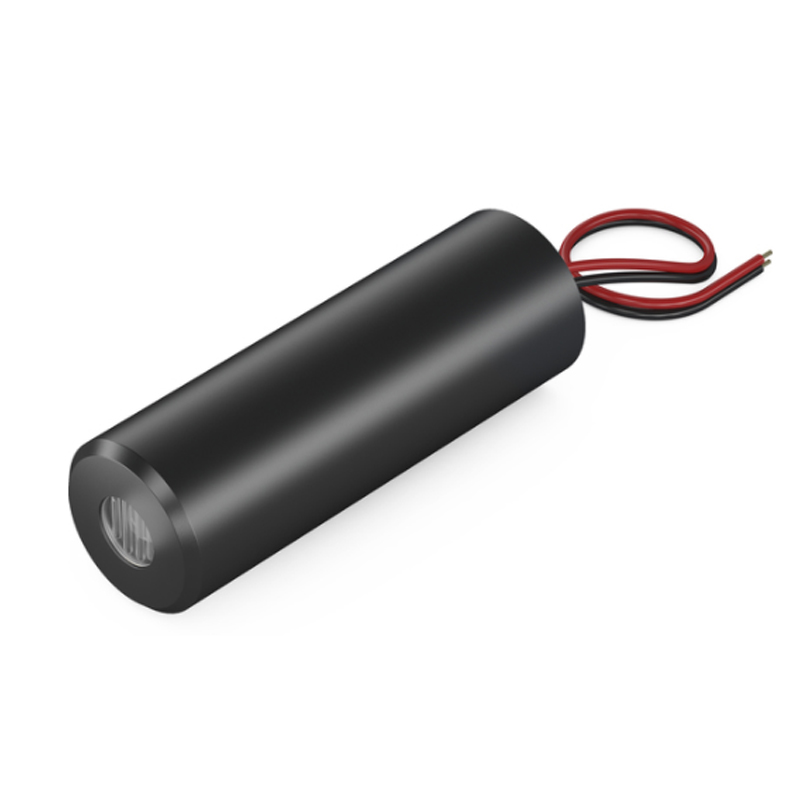

Isolated Line lasermodule, red, 90°, 650nm, 1mW, 3V DC, 16x45mm, class 1
• Fan angle 90 °
• Laser Class 1
• Operating Voltage 3 V DC
• Low power consumption
• Fixed focus
< Main Parameters (*) >
Wavelength typ 650 nm
Optical Output Power typ 1 mW
Operating Voltage min 2.7 typ 3 max 3.3 V DC
Operating Current min 15 typ 25 max 40 mA
Operating Temperature min -20 max 50 °C
Storage Temperature min -40 max 80 °C
< Main Data >
Warranty 1 years
< Technical Parameters >
Lifetime > 5,000 h
RoHS yes
< Optical Parameters >
Beam Shape Line
Laser Class 1
Divergence B - 0.3 mrad
Fan Angle 90 °
Line Thickness <2mm@2m
Operating Distance 2 m
Optics glass lens AR coated
Laser technology diode
Focus fixed (2000mm)
< Electrical Parameters >
Potential of Housing isolated
Power Supply LFNT-3

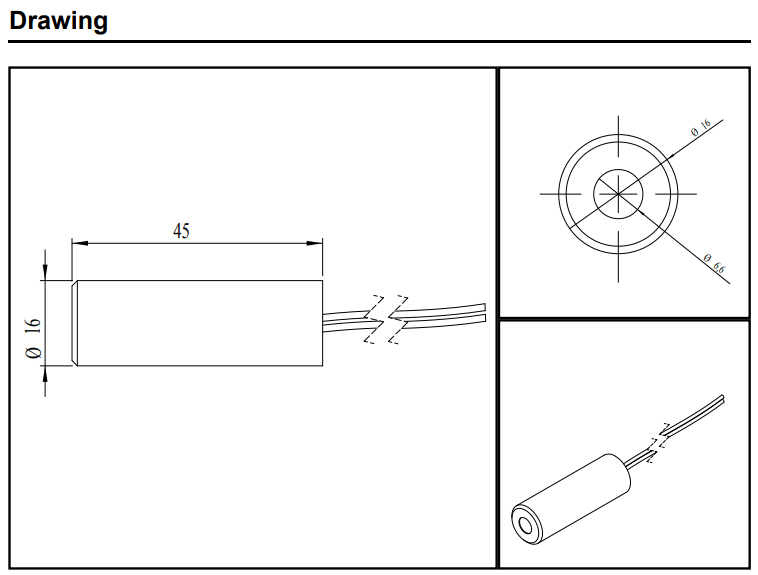

< Mechanical Parameters >
Size Ø16x45 mm
Material aluminium
Cable length 100 mm
Wire type 26AWG, 0,14mm²
Output Aperture 6.8 mm
Housing Color black
Weight 23.5 g
(*) Over the complete operating temperature range
