型番:CB635-2-24(16X64)-F500-PL-C1000 メーカー:Picotronic GmbH 商品コード:L000826

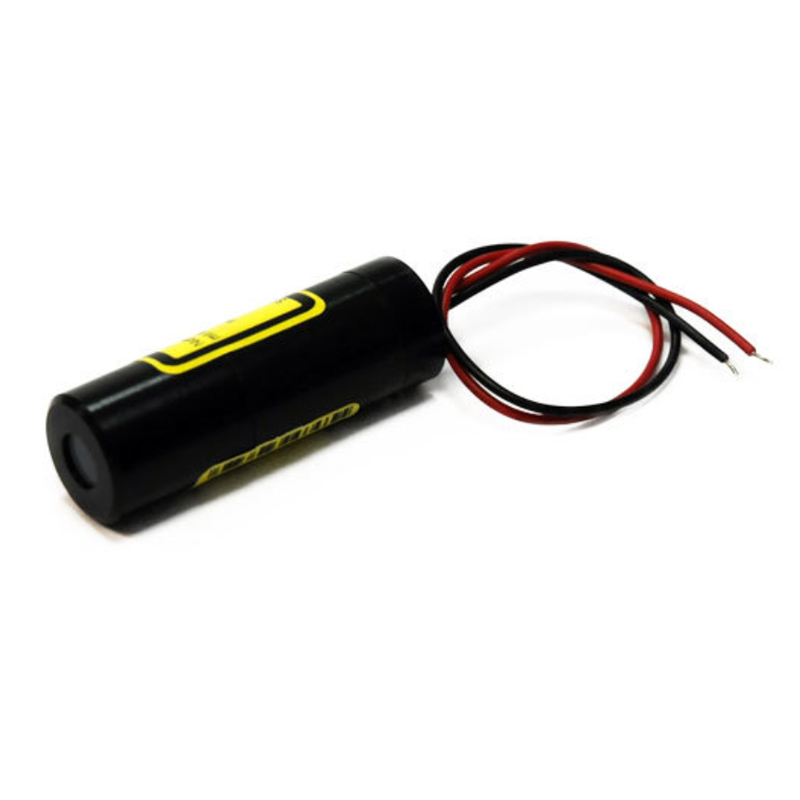

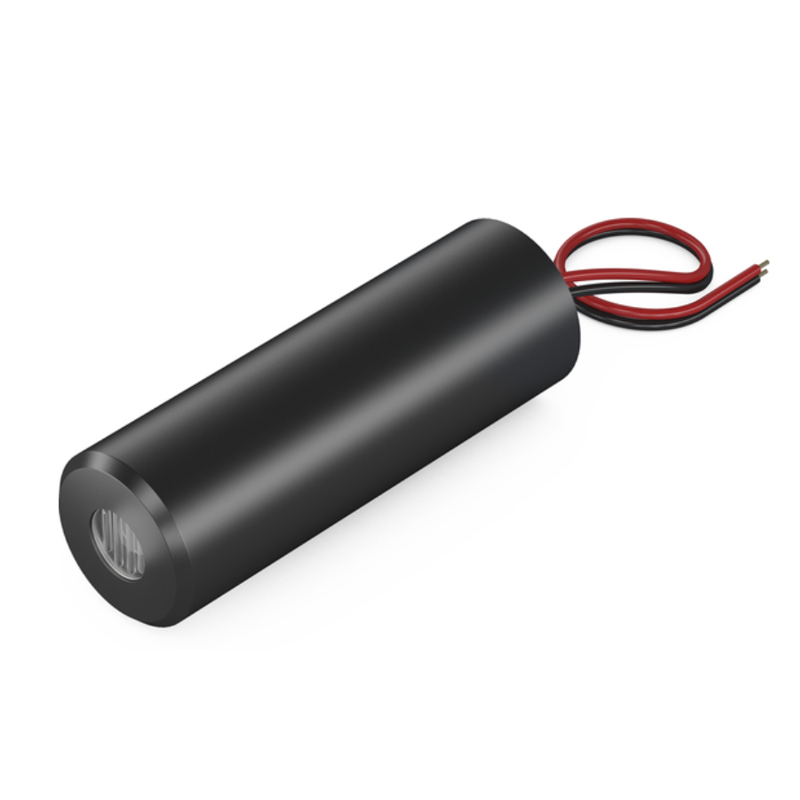

2mW Red Isolated Cross Lasermodule (F500-PL-C1000)

メーカー希望小売価格: €90,67 波長: 635nm-
出力: 2mW-
電流: 3mA-60mA
電圧: 22.7V-24.3V
パッケージ: MODULE
テクノロジー: Cross Laser
拡がり角: B - 0.3 mrad

Isolated Cross lasermodule, red, 90°, 635nm, 2mW, 24V DC, 16x64mm, class 1, protection lens

• Operating Voltage 24 V DC
• Laser Class 1
• Uniform line thickness
• Fixed focus
• Glas lenses anti reflex coated

< Main Parameters (*) >
Wavelength typ 635 nm
Optical Output Power typ 2 mW
Operating Voltage min 22.7 typ 24 max 24.3 V DC
Operating Current min 3 typ 37 max 60 mA
Operating Temperature min -20 max 50 °C
Storage Temperature min -40 max 80 °C

< Main Data >
Warranty 1 years

< Technical Parameters >
Lifetime > 10,000 h
RoHS yes

< Optical Parameters >
Beam Shape Cross
Laser Class 1
Divergence B - 0.3 mrad
Fan Angle 90 °
Line Thickness <0.3mm@0.5m
Operating Distance 0.5 m
Optics glass lens AR coated
Laser technology Single Mode Diode
Protection Lens yes
Focus fixed (500mm)
Verticality < ± 0.5 °

< Electrical Parameters >
Potential of Housing isolated

< Mechanical Parameters >
Size Ø16x64 mm
Material aluminium
Cable length 1,000 mm
Wire type 26AWG, 0,14mm²
Output Aperture 6.8 mm
Housing Color black
Weight 23.5 g
Stripping of wire 5 mm

(*) Over the complete operating temperature range
