型番:LB635-1-3(16X45) メーカー:Picotronic GmbH 商品コード:L000825
メーカー希望小売価格: €53,70
波長: 635nm-
出力: 1mW-
電流: 15mA-45mA
電圧: 2.7V-3.3V
パッケージ: MODULE
テクノロジー: Line Laser
拡がり角: B - 0.3 mrad

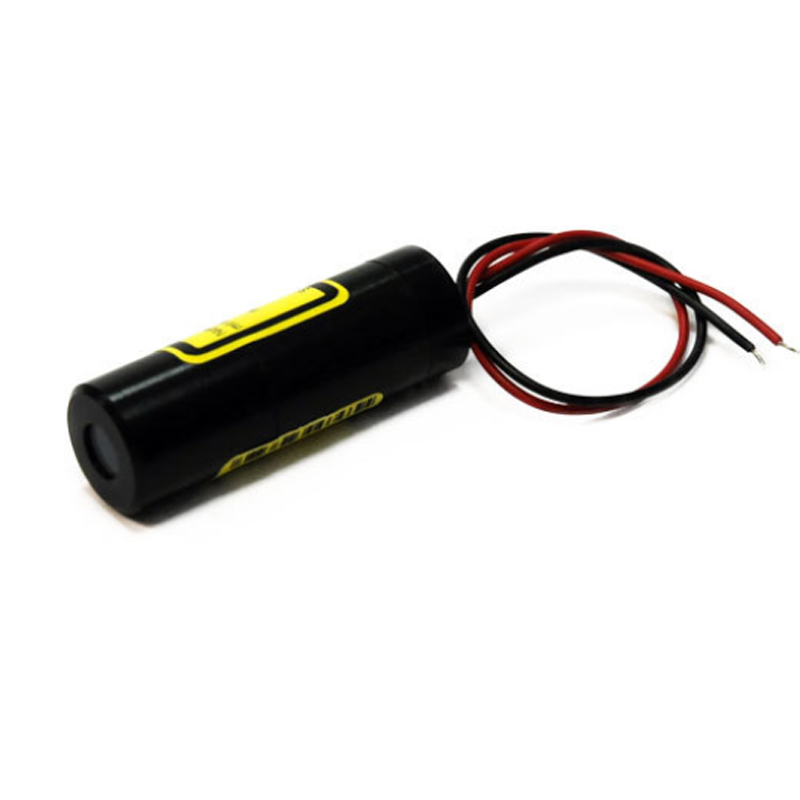

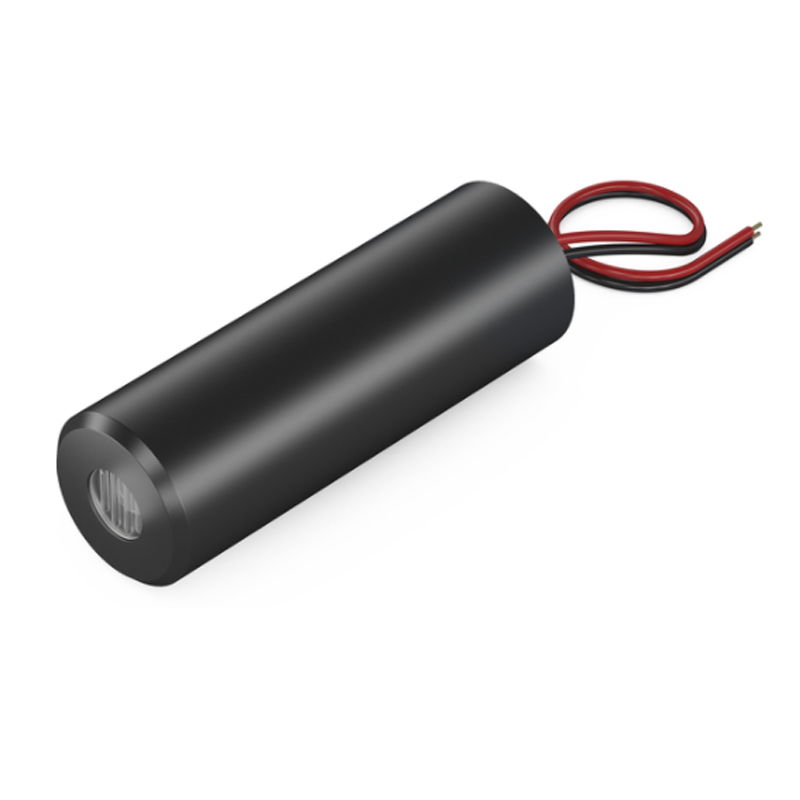

Isolated Line lasermodule, red, 90°, 635nm, 1mW, 3V DC, 16x45mm, class 1
• Operating Voltage 3 V DC
• Laser Class 1
• Fan angle 90 °
• Uniform line thickness
• Compact size
< Main Parameters (*) >
Wavelength typ 635 nm
Optical Output Power typ 1 mW
Operating Voltage min 2.7 typ 3 max 3.3 V DC
Operating Current min 15 typ 27 max 45 mA
Operating Temperature min -20 max 50 °C
Storage Temperature min -40 max 80 °C
< Main Data >
Warranty 1 years
< Technical Parameters >
Lifetime > 10,000 h
RoHS yes
< Optical Parameters >
Beam Shape Line
Laser Class 1
Divergence B - 0.3 mrad
Fan Angle 90 °
Line Thickness <1mm@1m
Operating Distance 1 m
Optics glass lens AR coated
Laser technology Single Mode Diode
Focus fixed (1000mm)
< Electrical Parameters >
Potential of Housing isolated
Power Supply LFNT-3

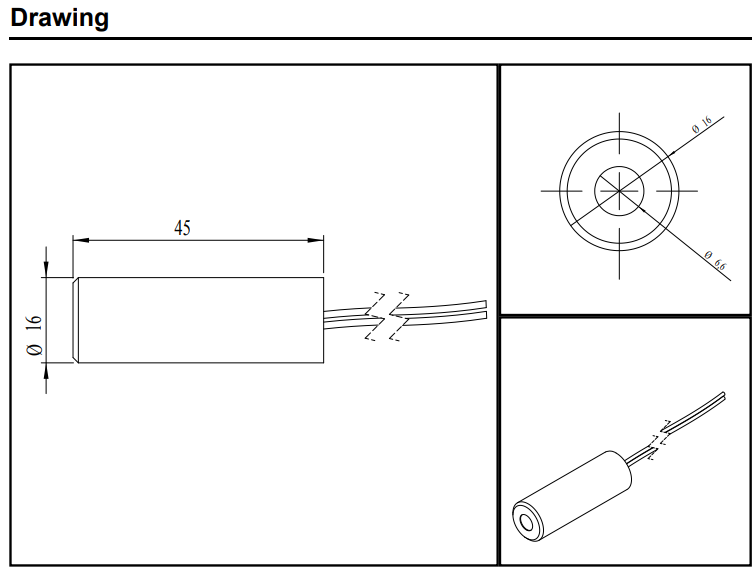

< Mechanical Parameters >
Size Ø16x45 mm
Material aluminium
Cable length 100 mm
Wire type Belden, Typ 1007, 26AWG
Output Aperture 6.8 mm
Housing Color black
Weight 23.5 g
Stripping of wire 5 mm
(*) Over the complete operating temperature range
