型番：　メーカー：Northrop Grumman Corporation　商品コード：L001087

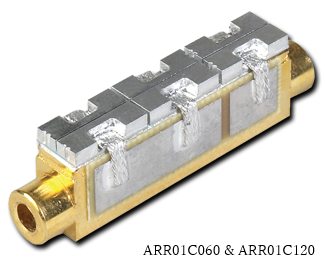

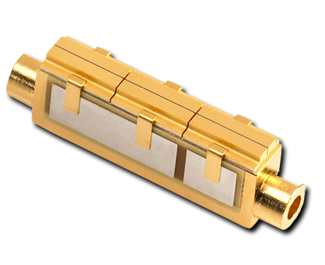

3, 9, 12, 18, 24-Bar Derringer 3 Long Packages

3, 9, 12, 18, 24-Bar Derringer 3 Long Packages
3, 9, 12, 18, 24-Bar Derringer 3 Long Packages
3, 9, 12, 18, 24-Bar Derringer 3 Long Packages
3, 9, 12, 18, 24-Bar Derringer 3 Long Packages

Derringer 3 Long データシート.pdf

波長: 790nm-1550nm
出力: 60W-4800W
電流: 25A-175A
電圧: 5.1V-48.0V
パッケージ: Derringer 3 Long Package
テクノロジー: High power laser diode array

The Derringer package features a proprietary water cooling design that enables excellent heat extraction without the need for deionized water. The arrays are well-suited to side-pumping of solid-state laser (SSL) crystals, as well as any direct diode application which requires multiple bars in a linear configuration. The 3-long Derringer features an emission output length of approximately 3 cm. CW output powers of up to 120W are available. For QCW configurations, the maximum output is 7.2 kW out of a 24-bar array.

見積りBOXへ入れる 欲しい物リストに登録
メーカーWebサイトへ
価格 地域 代理店
要問い合わせ ノースロップ・グラマン ジャパン
