型番：　メーカー：Ondax, Inc.　商品コード：L000703

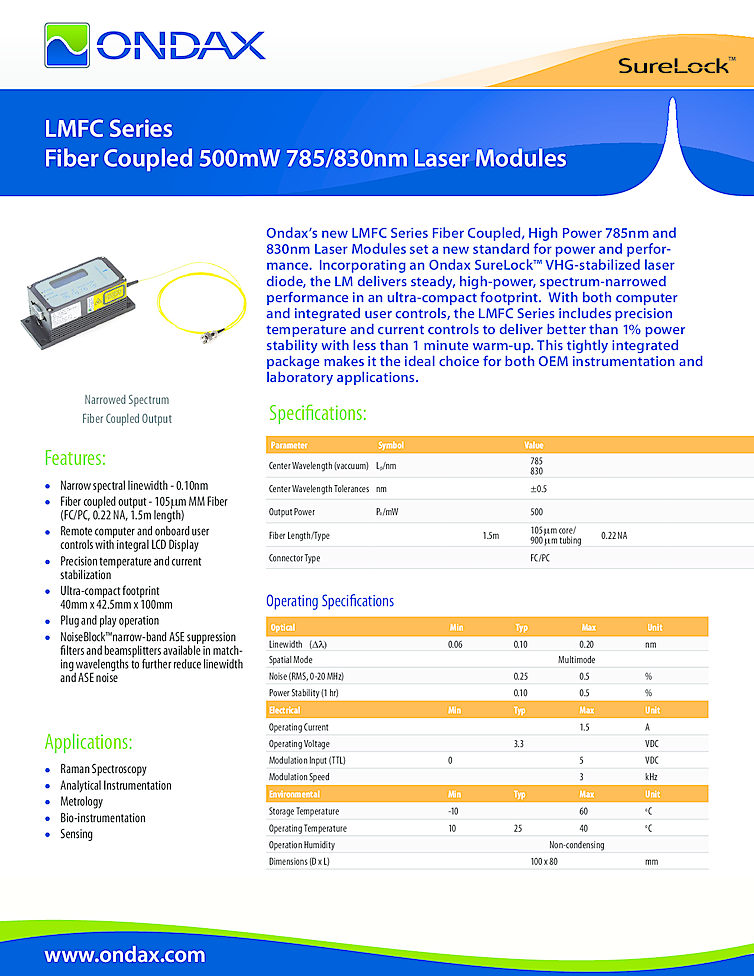

Fiber Coupled 785nm, 830nm Modules

Fiber Coupled 785nm, 830nm Modules
Fiber Coupled 785nm, 830nm Modules
Fiber Coupled 785nm, 830nm Modules
Fiber Coupled 785nm, 830nm Modules

波長: 785nm-830nm
出力: 500mW-500mW
スペクトル幅: < 500kHz
パッケージ: OEM LASER MODULE
テクノロジー: narrow linewidth laser

785nm-830nm Ondax’s new LMFC Series Fiber Coupled, High Power 785nm and 830nm Laser Modules set a new standard for power and performance. Incorporating an Ondax SureLock™ VHG-stabilized laser diode, the LM delivers steady, high-power, spectrum-narrowed performance in an ultra-compact footprint. With both computer and integrated user controls, the LMFC Series includes precision temperature and current controls to deliver better than 1% power stability with less than 1 minute warm-up. This tightly integrated package makes it the ideal choice for both OEM instrumentation and laboratory applications.

Features:
• Narrow spectral linewidth - 0.10nm
• Fiber coupled output - 105mm MM Fiber (FC/PC, 0.22 NA, 1.5m length)
• Remote computer and onboard user controls with integral LCD Display
• Precision temperature and current stabilization
• Ultra-compact footprint 40mm x 42.5mm x 100mm
• Plug and play operation

Applications:
• Raman Spectroscopy
• Analytical Instrumentation
• Metrology
• Bio-instrumentation
• Sensing

For more information about Ondax products and the name of a local representative or distributor, visit www.ondax.com, email sales@ondax.com, or call (626) 357-9600.
