型番：　メーカー：Eblana Photonics Ltd.　商品コード：L000691

780nm Laser Diode, 12mW

780nm Laser Diode, 12mW
780nm Laser Diode, 12mW
780nm Laser Diode, 12mW
780nm Laser Diode, 12mW

波長: 780nm-780nm
出力: 12mW-12mW
スペクトル幅: 500kHz - 2MHz
パッケージ: Butterfly
テクノロジー: Discrete Mode (DFB), Fabry–Pérot

780nm

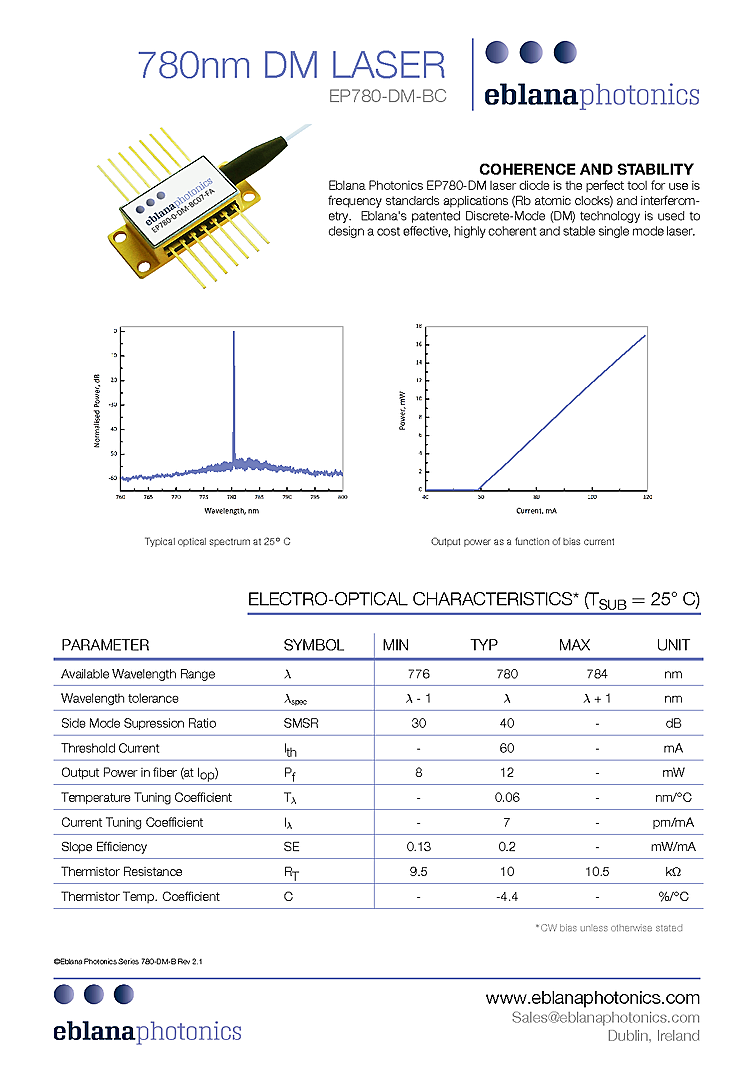

HIGHLY COHERENT AND STABLE DM LASER DIODE:
Eblana Photonics EP780-DM laser diode, available at a range of wavelengths from 778 - 784nm, is perfectly suited for use in Rb-based atomic clocks. Eblana's patented Discrete-Mode (DM) technology is used to design a cost effective, highly coherent laser with mode-hop free tunability.

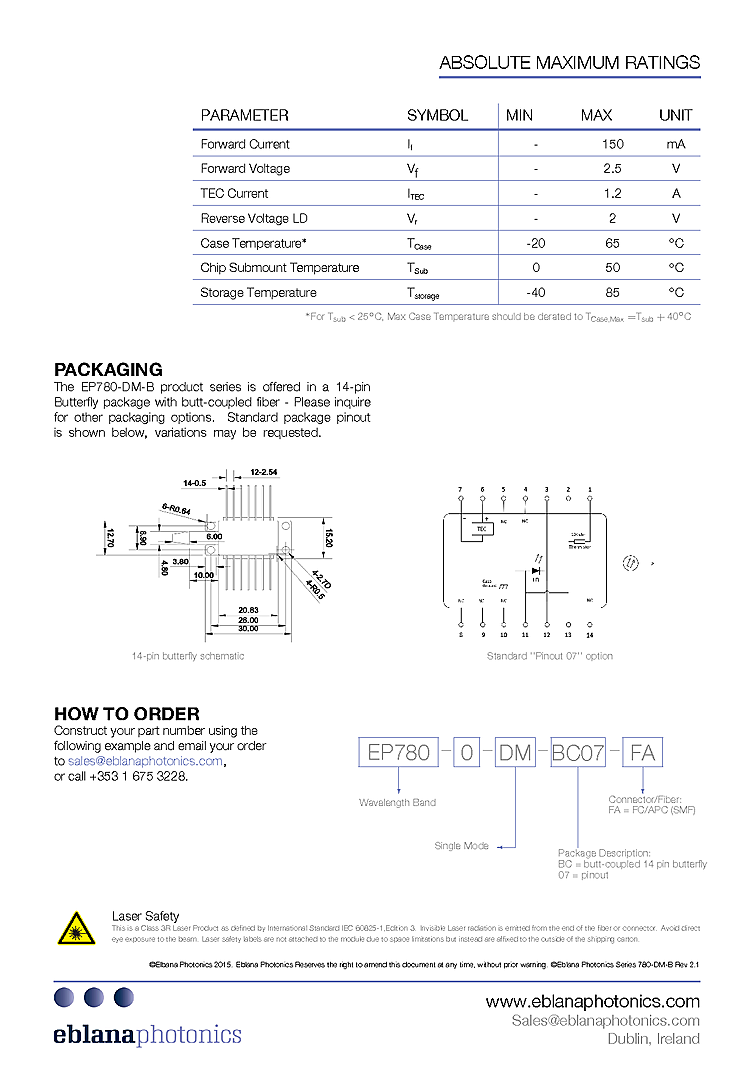

These high stability devices are offered in a 14-pin butterfly package with butt-coupled fiber. Other packaging options are available. Please inquire for other packaging options.
for other packaging options. Standard package pinout
is shown below, variations may be requested.

見積りBOXへ入れる 欲しい物リストに登録
メーカーWebサイトへ
価格 地域 代理店
要問い合わせ 東京都 セブンシックス株式会社
要問い合わせ 京都府 株式会社光響
