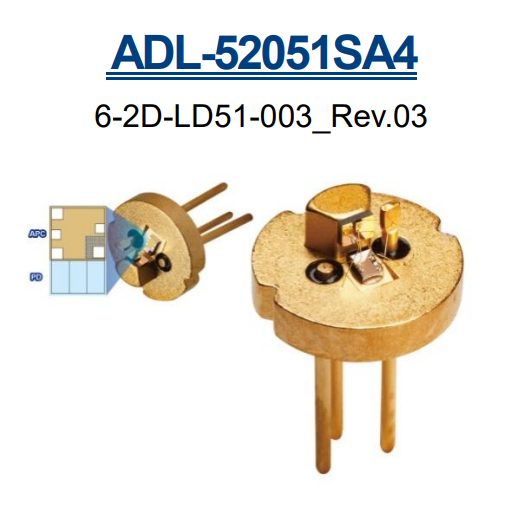

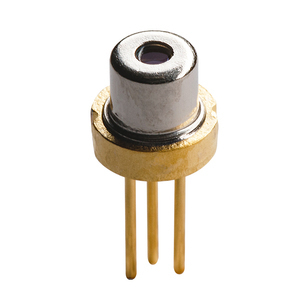

型番：ADL-52051SA4　メーカー：Arima Lasers Corporation　商品コード：L003721

520nm / 5mW　Green APC Laser Diode (50°C high reliable operation)

520nm / 5mW　Green APC Laser Diode (50°C high reliable operation)
520nm / 5mW　Green APC Laser Diode (50°C high reliable operation)
520nm / 5mW　Green APC Laser Diode (50°C high reliable operation)
520nm / 5mW　Green APC Laser Diode (50°C high reliable operation)
520nm / 5mW　Green APC Laser Diode (50°C high reliable operation)
520nm / 5mW　Green APC Laser Diode (50°C high reliable operation)

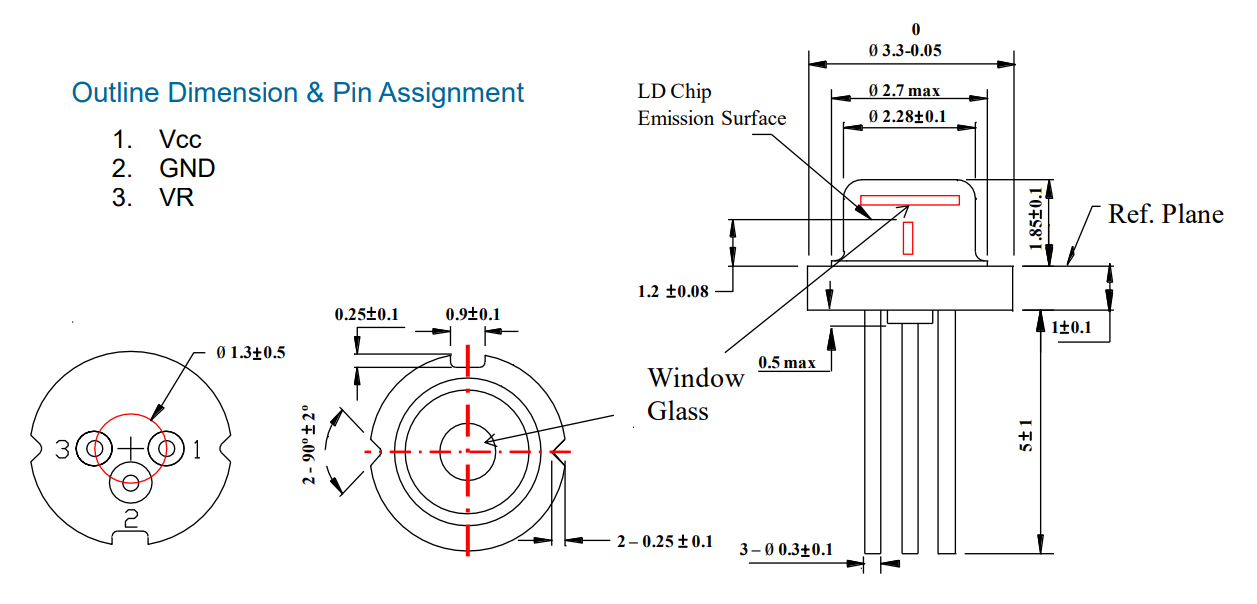

ADL-52051SA4 データシート.pdf

波長: 510m-530nm
出力: -5.0mW
電流: 50mA-80mA
電圧: 5.8V-7.0V

< FEATURES >
1. 520nm 5mW 50°C high reliable operation
2. Saving space and cost of laser module
3. Voltage driven LD, easy to use
4. Highly stable laser output power
5. Strong reverse bias protection
6. High ESD sustainability
7. Stable output power vs. supply voltage from 5.8V to 7.0V

< APPLICATION >
1. Industry：laser level, illumination, meter, scanner, detector
2. Consumer：pointer light, sweeper, TV game lighting
3. Health：special wavelength light source

見積りBOXへ入れる 欲しい物リストに登録
メーカーWebサイトへ
価格 地域 代理店
要問い合わせ 株式会社彩世
